Removal of the engine from the vehicle
- Carry out the removal operations but in reverse order, observing the prescribed tightening torques.
Locking torques (N*m)
Lower shock absorber clamp 33 ÷ 41 Engine-swinging arm bolt 33 ÷ 41

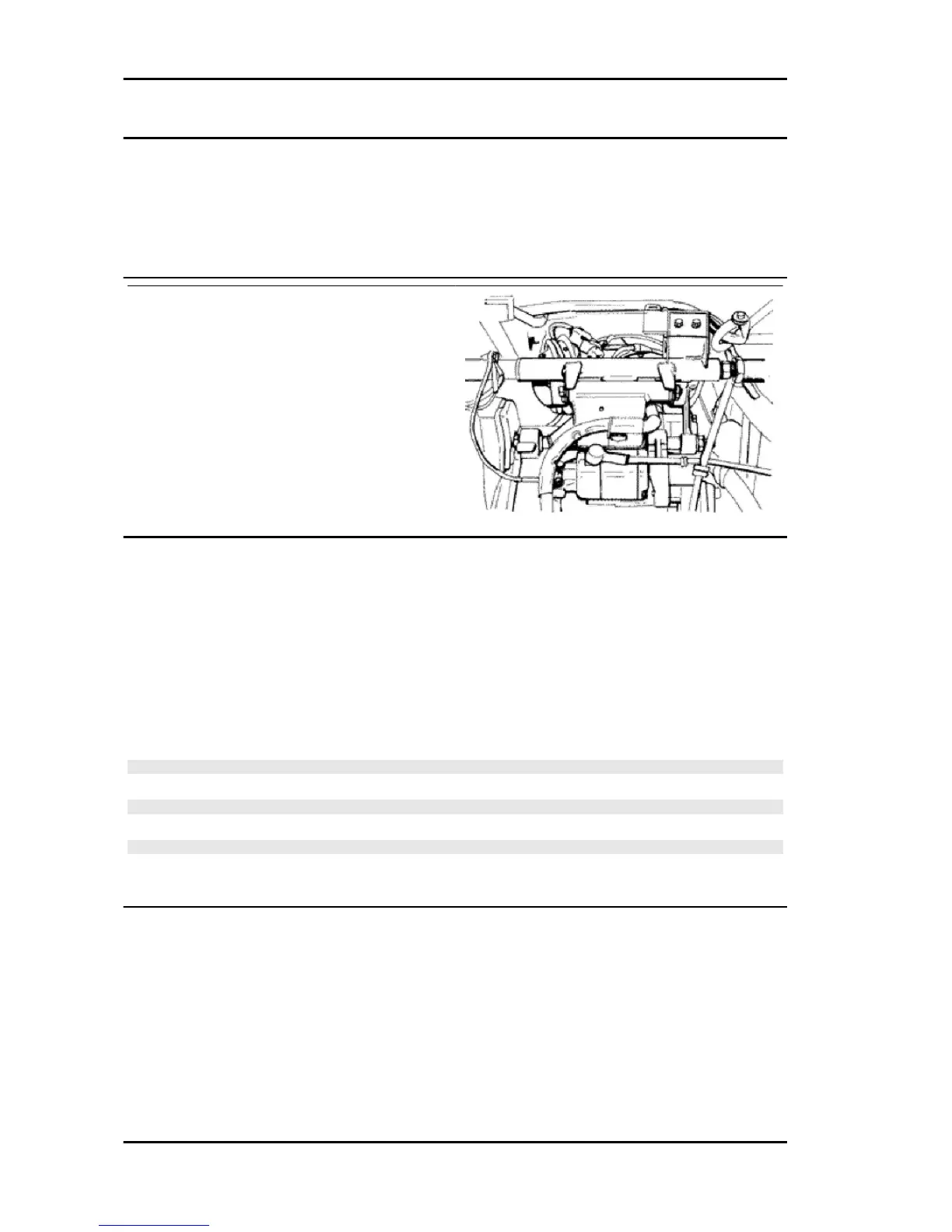

- Remove the nut shown in the figure, then take
out the pin. The engine is now free.
- Remove the saddle and the side covers,
- Drain engine oil and coolant,
- Disconnect the battery,
- Remove the muffler assembly,
- Remove the rear wheel,
- Remove the throttle grip transmission,
- Disconnect the electrical devices,
- Disconnect the hoses (petrol-oil-vacuum-operated cock control).
WARNING
Wear safety goggles when using hitting tools.
WARNING
BE VERY CAREFUL WHEN HANDLING FUEL.
CAUTION
WHEN INSTALLING THE BATTERY, ATTACH THE POSITIVE LEAD FIRST AND THEN THE NEG-
ATIVE LEAD.
Engine from vehicle X9 Evolution 125
ENG VE - 84
