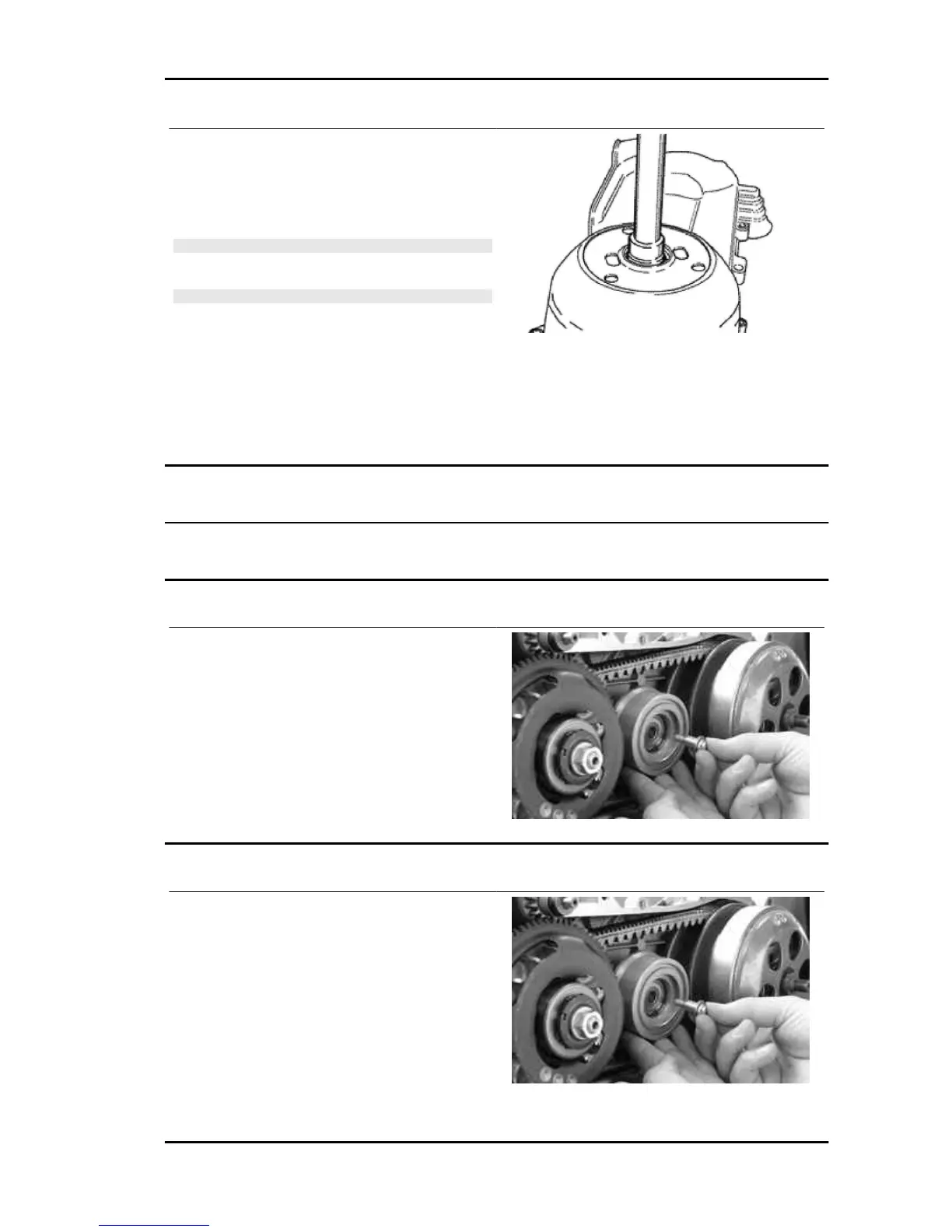

- Slightly heat the crankcase from the inside so as
not to damage the painted surface.
- Insert the bearing in its seat.
- Refit the Seeger ring.
CAUTION
USE AN APPROPRIATE REST SURFACE TO AVOID DAM-
AGING THE COVER PAINT.
N.B.
ALWAYS REPLACE THE BEARING WITH A NEW ONE
UPON REFITTING.
Specific tooling
020376Y Adaptor handle
020357Y 32x35-mm Adaptor
020412Y 15 mm guide
Baffle roller
Metallic roller
Removal
Belt support roller (200 cm³ models only)
- Check that the roller does not show signs of wear
and that it turns freely.
- Remove the special fixing screw and the roller
together with the bearing.
Refitting
- Heat the roller and insert the bearing using the
specific punch:
Specific tools:
Specific tooling
020455Y 10-mm guide
X9 Evolution 125 Engine
ENG - 89
