5.4 Transponder key
The following types of transponder key are available (see also Order reference [ 56]):
Designation Permission Serial number
PITreader key ye 1 Permission 1 01nnnnnnn
PITreader key ye 2 Permission 2 02nnnnnnn
PITreader key ye 3 Permission 3 03nnnnnnn
PITreader key ye 4 Permission 4 04nnnnnnn
PITreader key ye 5 Permission 5 05nnnnnnn
PITreader key ye 5 service Permission 5 (Service) 13nnnnnnn
PITreader key ye g Without pre-programmed
permission
00nnnnnnn
With the exception of "PITreader key ye g", all transponder keys are pre-programmed in the
factory and the permission cannot be modified. The permission applies to all PITreader
groups.
In the case of "PITreader key ye g", the permission for the PITreader groups can be modi-
fied and also locked as an option.
Device groupsFree user data
PITreader
key ye 2
Start/End Date
User Data User Data
Start/End Date
PITreader
key ye g
G0 G1 G2 G3
2 2 2 2
G28 G29 G30 G31
2 2 2 2
G0 G1 G2 G3
0-64 0-64 0-64 0-64
G28 G29 G30 G31
0-64 0-64 0-64 0-64
. . . . . .
Factory-locked
Data cannot be locked
Validity

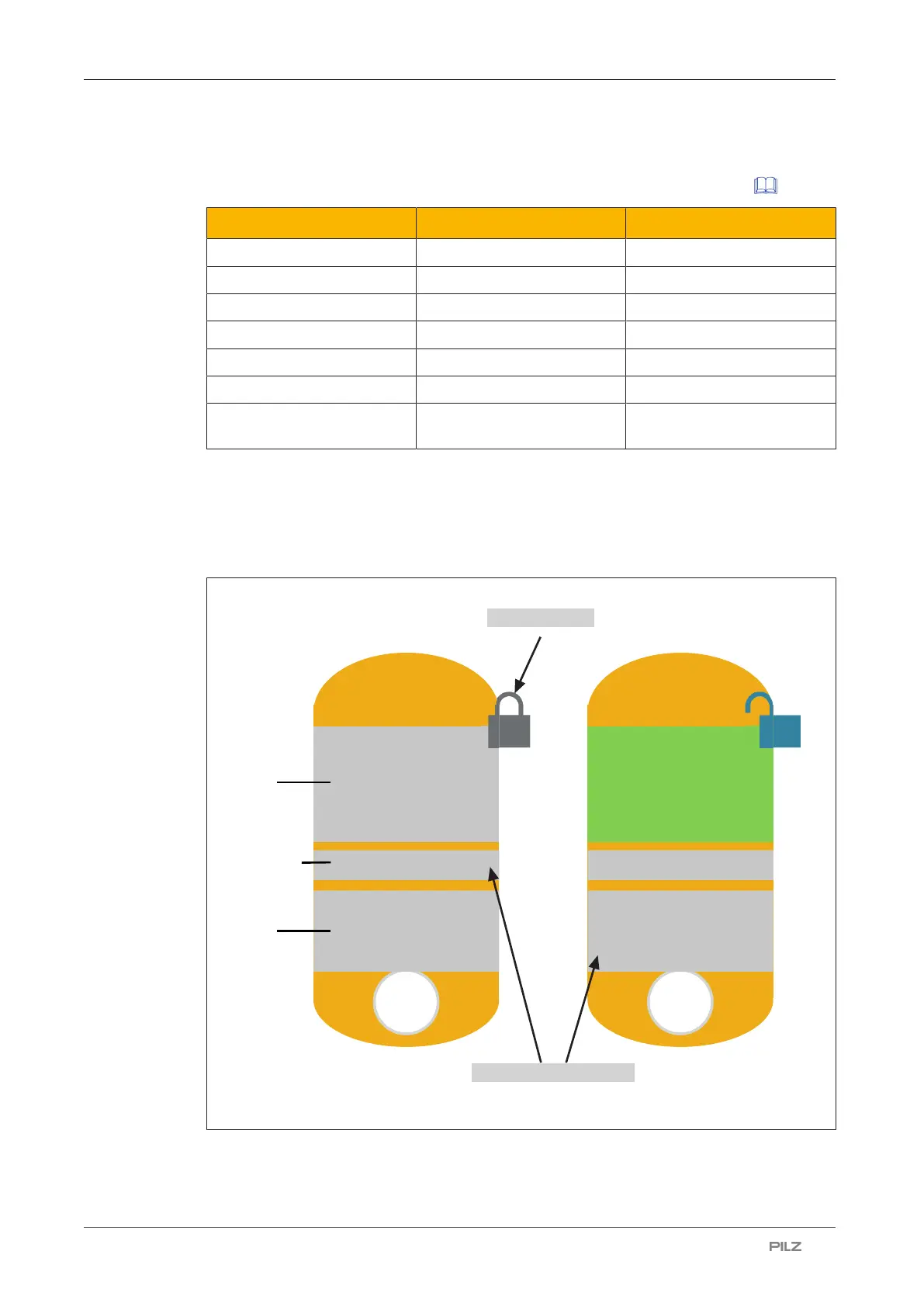

Fig.: Example of "PITreader key ye 2" and "PITreader key ye g"
