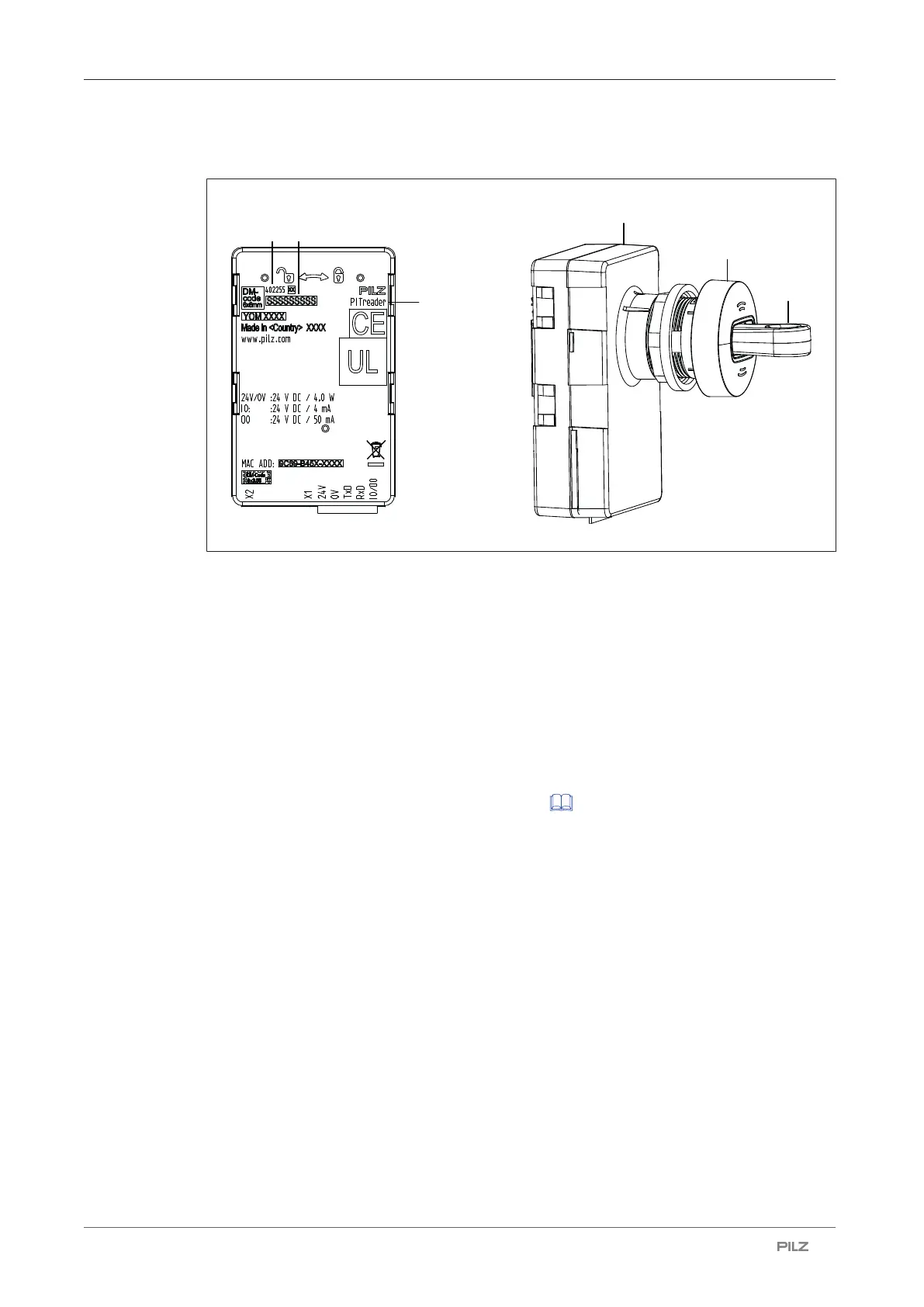

2.2 PITreader device view with base unit
[1]
[2]
[3]
[4]
[5]
[6]
Legend
X1 Voltage supply, 24 V input/output and connection of a safe evaluation unit (PIT
m4SEU)
X2 Ethernet interface
[1] Device description
[2] Order number
[3] Serial number
[4] PITreader base unit, including spring-loaded terminal (order no. 402 255)
[5] PITreader key adapter h (order no. 402 308)
[6]
PITreader key (see also Transponder key [ 20])
