Pioneer PDP-4270XA User Manual

Preparation05
18
En

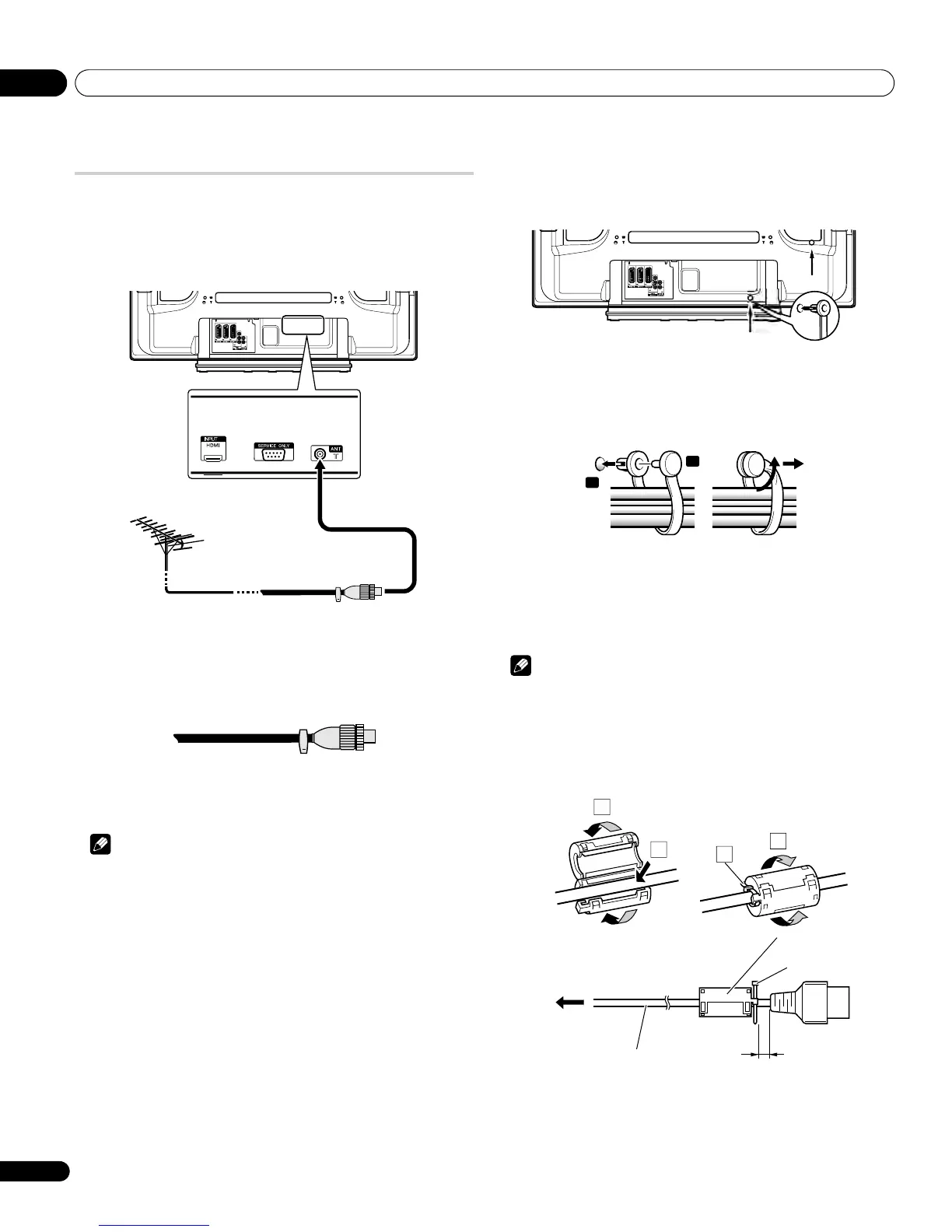

Basic connections
Connecting the antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a
brief explanation of the types of connections that are used for a coaxial
cable.
• Connect a 75-ohm coaxial cable (commercially available) to the
ANT terminal.
Antenna cable (commercially available)
If your outdoor antenna uses a 75-ohm coaxial cable with a standard
DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear
of the plasma television.
Note
• If the antenna is not connected correctly, the quality of reception
may be impaired. If images are not displaying correctly, check
whether the antenna connection is correct or not.
Routing cables
Use the speed clamps as necessary to route the connecting cables.
cables. The diagrams below show the location of the holes on the rear
of the plasma television.
Attaching and removing speed clamps
Insert [1] into an appropriate hole on the rear of the plasma television
and snap [2] into the back of [1] to lock the clamp.
• Speed clamps are designed to be difficult to undo once in place.
Please attach them carefully.
• Use pliers to twist the clamp 90º, pulling outward. The clamp may
deteriorate over time and become damaged if removed.
• Be careful not to subject any connecting cables to strain.
Note
• Use the speed clamps as necessary.
Attaching the ferrite core
To help prevent noise, attach the supplied ferrite core to the connector
end of the power cord as shown. Use the supplied cable tie to prevent
the ferrite core from slipping on the cable.
3
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
(commercially available)
1
2
1
2
3
4
Ferrite core
Cable tie
AC power cord
To power outlet
As close as possible

Pioneer PDP-4270XA Specifications

General

3D	No
Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	31500 g
Tuner type	Analog
Pixel pitch	- mm
Product color	Black, Silver
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	42 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
USB 2.0 ports quantity	0
Annual energy consumption	- kWh
Display diagonal (metric)	106 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	287 W
Digital signal format system	-
Sound enhancement technology	FOCUS, SRS, TruBass
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE
