Pioneer PDP-4270XA User Manual

Using with other equipment 10
39
En
English
When you press the play button on the VCR, the system automatically
turns on from standby and displays a VCR image.
TV-VCR advanced "AV link" systems may not be compatible with some
external sources.
VCR playback
To watch a VCR image, press INPUT 2 on the remote control unit or
press INPUT on the plasma television to select INPUT2.
Note
• If VCR images do not come in clearly, you may need to change the
input signal type setting using the menu. See page 34.
• Connect external equipment to only terminals that are to be
actually used.
• Refer to your VCR operation manual for the signal type.
Connecting a game console or camcorder
Use the INPUT 4 terminals to connect a game console, camcorder and
other audiovisual equipment.
Displaying an image from the game console or
camcorder
To watch an image coming from the game console or camcorder,
press INPUT 4 on the remote control unit or press INPUT on the
plasma television to select INPUT4.
Note
• The INPUT 4 terminals are checked for cable connections in the
order where; 1) S-Video, 2) Video.
• Connect external equipment to only terminals that are to be
actually used.
Connecting an amplifier/AV receiver
You can enjoy more powerful sound by connecting an amplifier or AV
receiver to the plasma television.

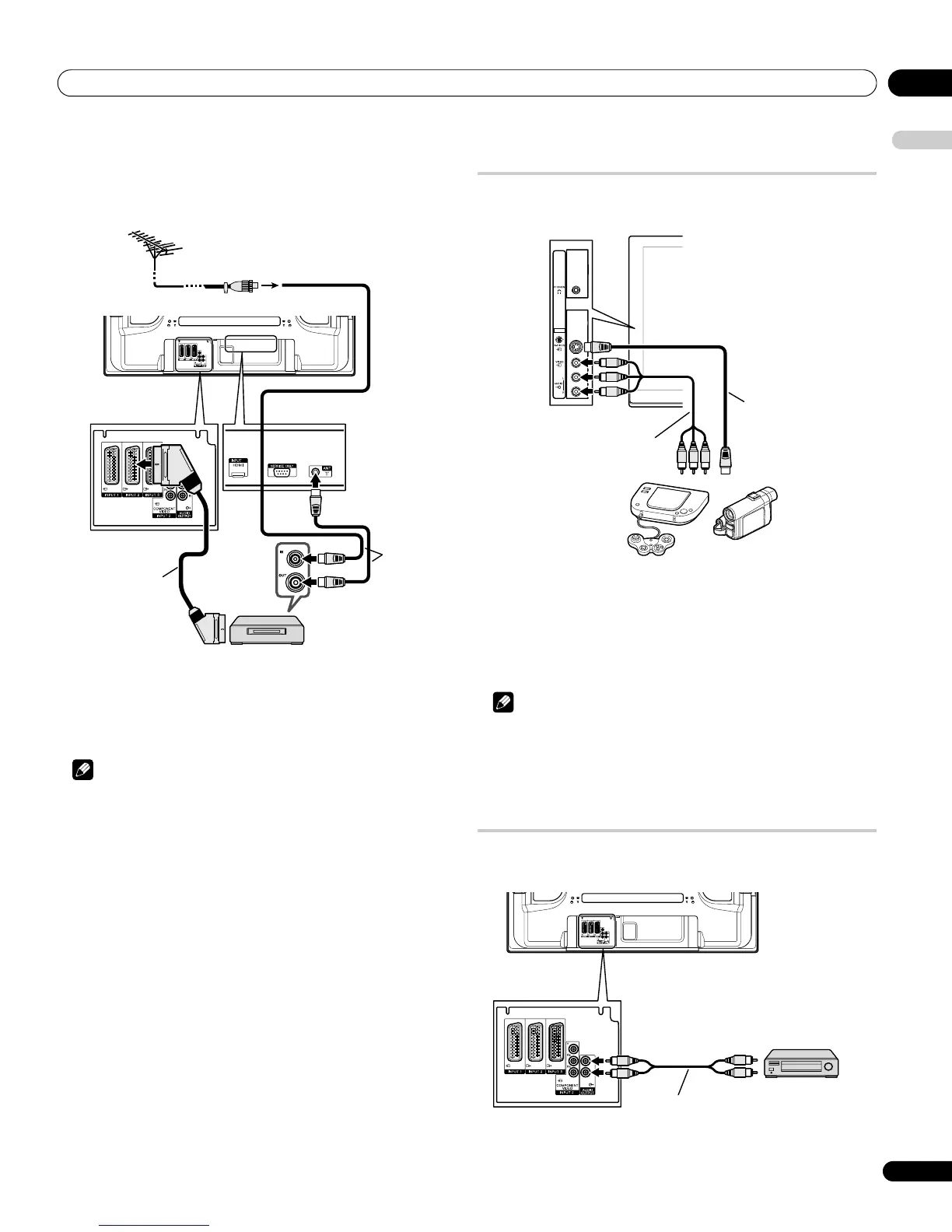

Rear view
3
VCR
Antenna
SCART cable
Antenna
cables
INPUT 4
Game console/camcorder
Audio/Video cable
S-Video cable
Rear view
Amplifier/AV receiver
Stereo
audio cable

Pioneer PDP-4270XA Specifications

General

3D	No
Depth	115 mm
Width	1040 mm
Height	679 mm
Weight	31500 g
Tuner type	Analog
Pixel pitch	- mm
Product color	Black, Silver
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	42 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Display brightness	1100 cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
SCART ports quantity	3
USB 2.0 ports quantity	0
Annual energy consumption	- kWh
Display diagonal (metric)	106 cm
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.3 W
Power consumption (typical)	287 W
Digital signal format system	-
Sound enhancement technology	FOCUS, SRS, TruBass
On Screen Display (OSD) languages	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, ITA, NOR, POL, POR, RUS, SWE
