Chapter 10
Using with other equipment
You can connect many types of external equipment to your plasma
television, like a decoder, VCR, DVD player, game console, and
camcorder.
To view images coming from external equipment, select the input
source using the INPUT buttons on the remote control (page 14) or the
INPUT button on the plasma television.
Caution
• To protect all equipment, always unplug the plasma television
from the power outlet before connecting to a decoder, VCR, DVD
player, game console, camcorder, or other external equipment.
Note
• Refer to the relevant operation manual (DVD player, etc.) carefully
before making connections.
• Unless stated otherwise, the connecting cables shown in the
illustrations are readily available commercially, but are not
supplied with this product.
Connecting a DVD player
Use the INPUT 2 terminal when connecting to a DVD player and other
audiovisual equipment.
When using a component video cable, select “COMPONENT” in the
“Input Select” menu (see Selecting an input signal type on page 34). In
this case, the SCART cable will carry the audio signal.
DVD playback
To watch a DVD, press INPUT 2 on the remote control unit or press
INPUT on the plasma television to select INPUT2.
Note
• If DVD images do not come in clearly, you may need to change the
input signal type setting using the menu. See page 34.
• Refer to your DVD player operation manual for the signal type.
Connecting a decoder
Use the INPUT 1 terminal when connecting a decoder and other
audiovisual equipment.
Displaying a decoder image
Press buttons 0 to 9 or P+/P– to select a programme specified for
decoder setting (page 27).
Press INPUT 1 on the remote control unit or press INPUT on the
plasma television to select INPUT 1.
Note
• Be sure to use INPUT 1 to connect a decoder.
• If decoder images do not come in clearly, you may need to change
the input signal type setting using the menu. See page 34.
• Refer to your decoder operation manual for the signal type.
Connecting a VCR
Use the INPUT 2 terminals when connecting a VCR and other
audiovisual equipment.
If your VCR supports TV-VCR advanced "AV link" systems (page 41), you
can connect the VCR to the INPUT 2 or 3 terminal on the plasma
television using the fully-wired 21-pin SCART cable.
AV link advanced system
Download tuning information directly from TV to VCR (Preset
download).
While watching TV, you can record a programme with a one-touch
press of the VCR recording button. (WYSIWYR*)
*Refer to your VCR operation manual as some VCRs have an exclusive
key for WYSIWYR.

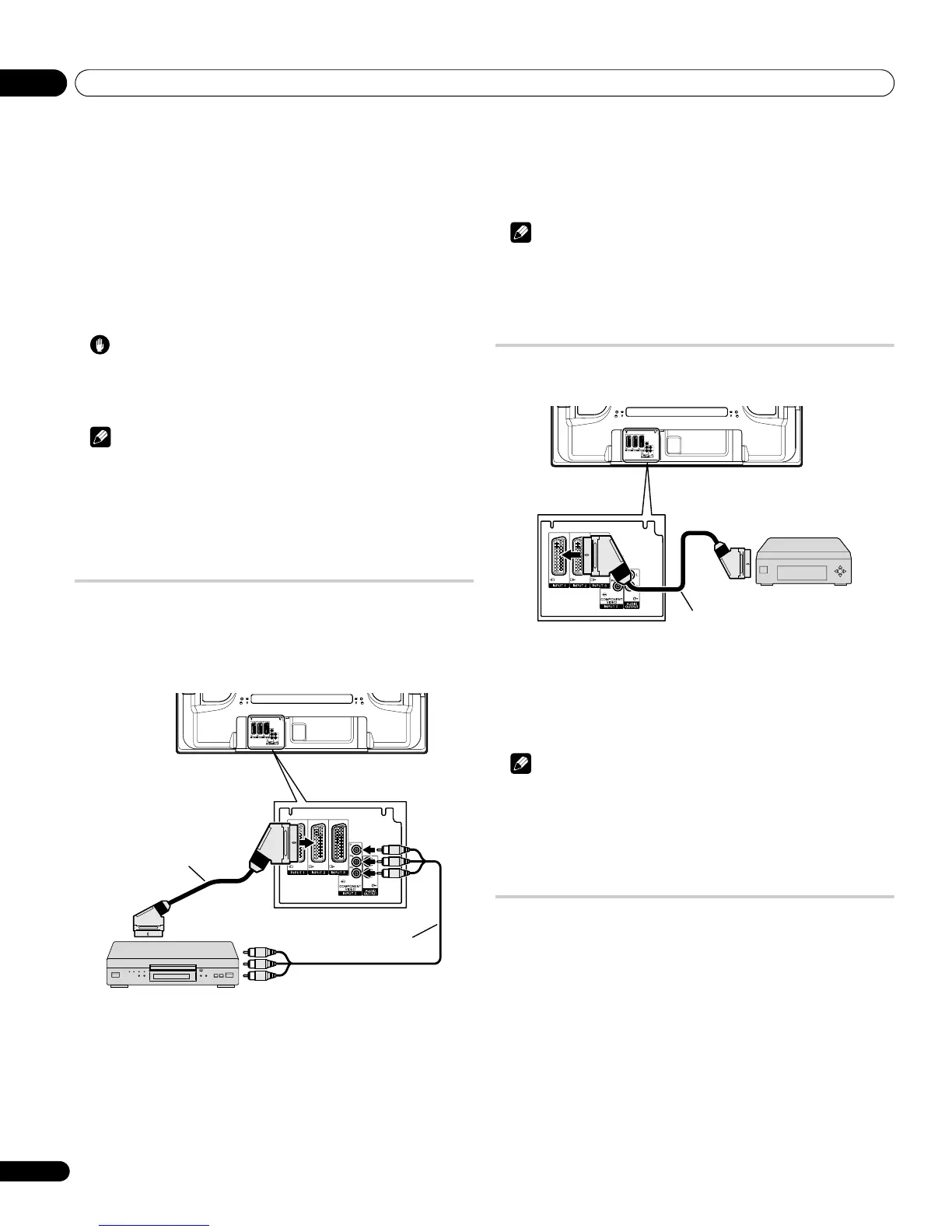

Rear view
DVD player
SCART cable
Component video cable
Rear view
SCART cable
Decoder
