Additional information 12
45
En
English
If the following error codes appear on the screen, check the corresponding items in the table.

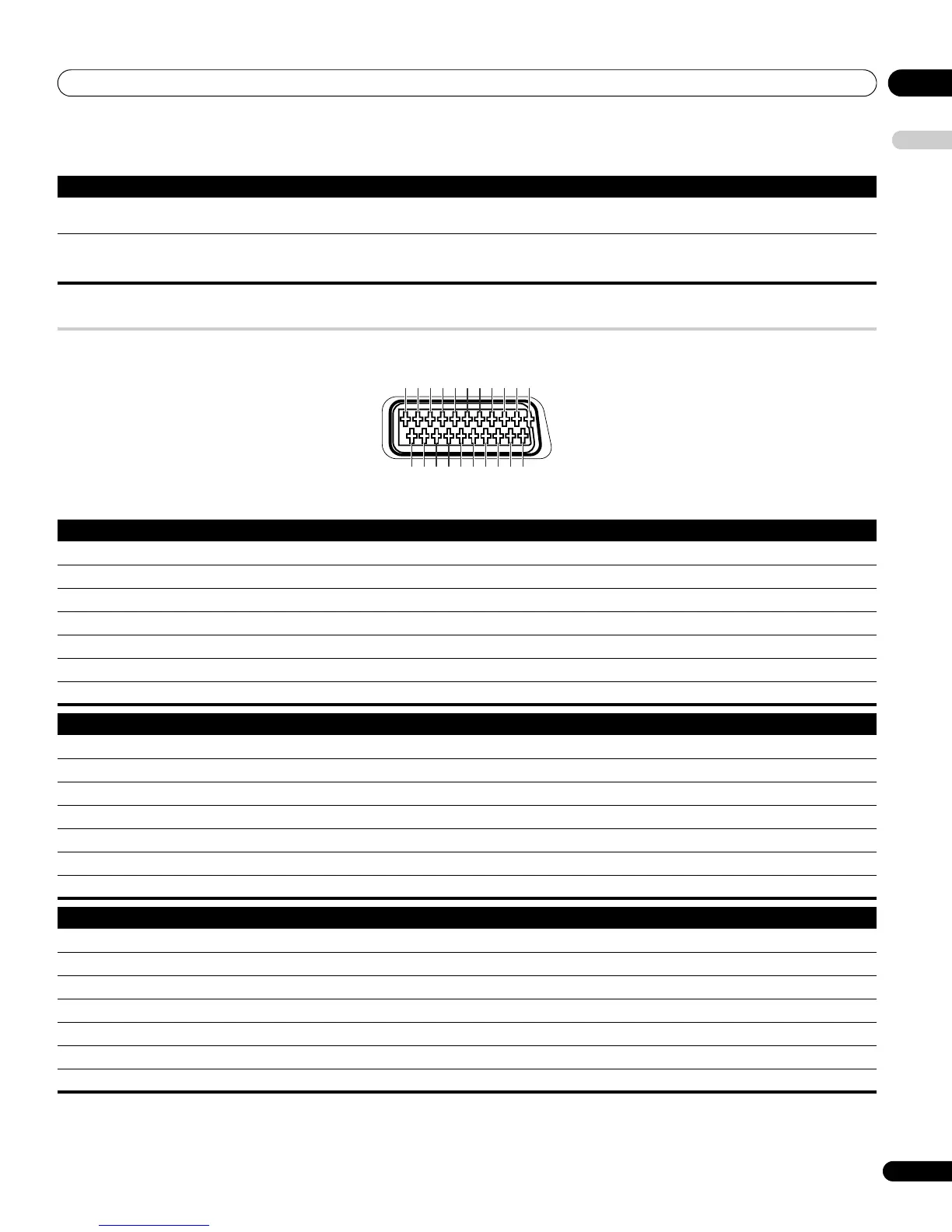

SCART pin assignments
Various audio and video devices may be connected via the SCART terminals.
Code Message Check
SD04 and SD11 Powering off. Internal temperature too high.
Check temperature around PDP.
Check if the ambient temperature of the plasma television is high.
SD05 Internal protection circuit turns power off. Contact a Pioneer Service Center. These are listed on your warranty card
for each country. Alternatively, check the Pioneer Web site (see cover) for
contact details.
SCART (INPUT 1)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth for Blue 6 Audio left input
7 Blue input 8 Audio-video control 9 Earth for Green
10 Not used 11 Green input 12 Not used
13 Earth for Red 14 Earth for Red/Green/Blue control 15 Red input
16 Red/Green/Blue control 17 Earth for Video output 18 Earth for Video input
19 Video output 20 Video input 21 Plug shield
SCART (INPUT 2)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth 6 Audio left input
7 Not used 8 Audio-video control 9 Earth
10 AV link control 11 Not used 12 Not used
13 Earth 14 Earth 15 Chroma S-Video input
16 Not used 17 Earth for Video output 18 Earth for Video input/S-Video input
19 Video output 20 Video input/S-Video input 21 Plug shield
SCART (INPUT 3)
1 Audio right output 2 Audio right input 3 Audio left output
4 Common earth for audio 5 Earth for Blue 6 Audio left input
7 Blue input 8 Audio-video control 9 Earth for Green
10 AV link control 11 Green input 12 Not used
13 Earth for Red 14 Earth for Red/Green/Blue control 15 Chroma S-Video input
16 Red/Green/Blue control 17 Earth for Video output 18 Earth for Video input/S-Video input
19 Video output 20 Video input/S-Video input 21 Plug shield
1 3 5 7 9 11 13 15 17 19 21
2 4 6 8 10 12 14 16 18 20
