Pioneer PDP-433CMX Service Manual

51
PDP-433CMX

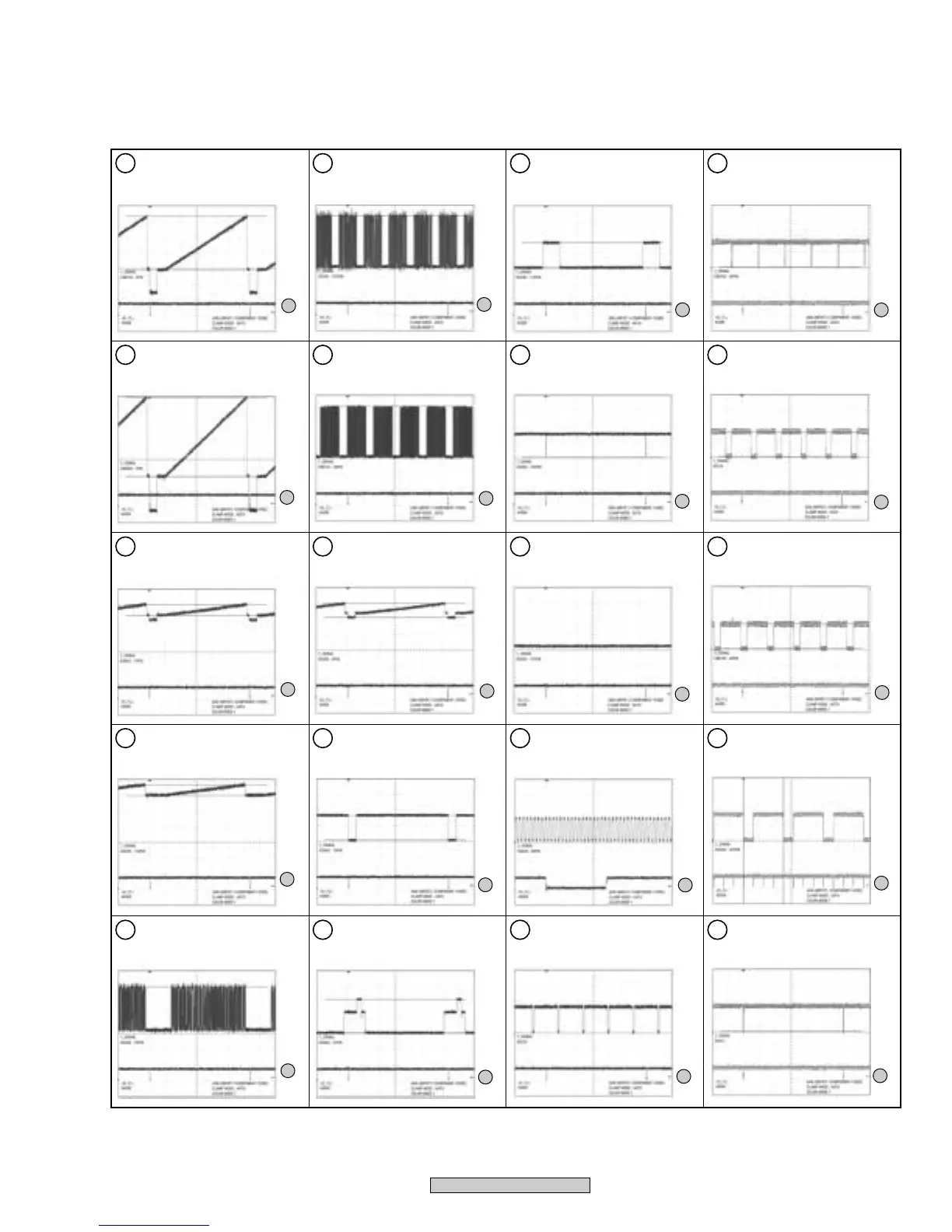

T1
1
CN4103 - pin 2
V: 200mV/div. H: 10µsec/div.
T1
2
CN4004 - pin 1
V: 200mV/div. H: 10µsec/div.
T1
3
IC4402 - pin 17
V: 1V/div. H: 10µsec/div.
T1
4
IC4603 - pin 133
V: 1V/div. H: 10µsec/div.
T1
5
IC4603 - pin 70
V: 1V/div. H: 10µsec/div.
T1
6
IC5301 - pin 276
V: 1V/div. H: 10µsec/div.
T1
7
IC5701 - pin 30
V: 1V/div. H: 10µsec/div.
T1
8
IC4802 - pin 4
V: 2V/div. H: 10µsec/div.
T1
9
IC4802 - pin 15
V: 2V/div. H: 10µsec/div.
T1
10
IC4402 - pin 31
V: 2V/div. H: 10µsec/div.
T1
11
IC4603 - pin 113
V: 2V/div. H: 10µsec/div.
T1
12
IC4603 - pin 103
V: 2V/div. H: 10µsec/div.
T1
13
IC4603 - pin 101
V: 2V/div. H: 10µsec/div.
T1
14
IC4603 - pin 98
V: 2V/div. H: 80msec/div.
T1
15
K5315
V: 2V/div. H: 10µsec/div.
T1
16
CN5702 - pin 26
V: 2V/div. H: 10µsec/div.
T1
17
K5315
V: 2V/div. H: 10µsec/div.
T1
18
CN5702 - pin 24
V: 2V/div. H: 10µsec/div.
T1
19
IC4803 - pin 140
V: 2V/div. H: 100µsec/div.
T1
20
K5317
V: 2V/div. H: 10µsec/div.
