6 Adjusting the support casterWhen the mobile cart has
been placed into position, be sure to adjust the support
caster to fix into place.
1. Turn the support caster in the direction indicated by
the arrow until the bottom of the caster touches
the floor.
2. Turn the nut at the top of the caster in the direction
indicated by the arrow to fix the caster into place.
7 Hang the cords on the hooks on the back of the support
columns.
8 Attach the rear cover.Attach the rear cover and fix it in
place by tightening the finger screws.
Be careful not to catch the cable in the rear cover.

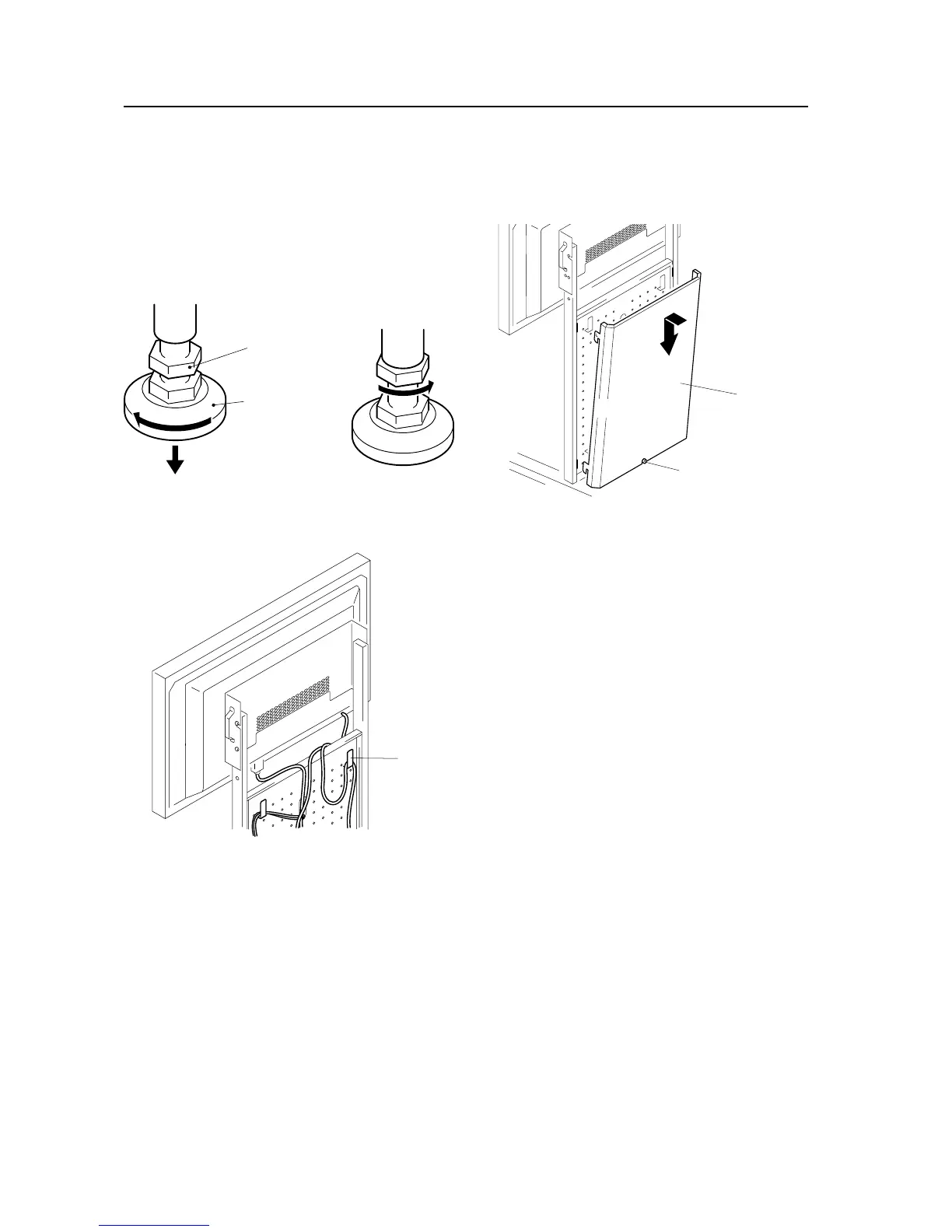

Mobile Cart: PDK-5014
Bottom of support
caster
Support caster nut
Hook
Rear cover
Finger screw
[503CMX/503MXE : 433CMX/433MXE]
