Pioneer PDP-433HDE User Manual

12
Watching TV
MONITOR OUTPUT
S-VIDEO
VIDEO
R–AUDIO–L
(GRAY)
RS-232C
IN
OUT
CONTROL
INPUT 3
INPUT 2
Y
P
B P R
COMPONENT
AC INLET
SYSTEM
CABLE
(WHITE)
INPUT 1
AC INLET
MONITOR OUTPUT
S-VIDEO
VIDEO
R–AUDIO–L
(GRAY)
RS-232C
IN
OUT
CONTROL
INPUT 3
INPUT 2
Y
P
B P R
COMPONENT
AC INLET
SYSTEM
CABLE
(WHITE)
INPUT 1
AC INLET
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round
cable) (commercially available)
Europe, except U.K.
and Eire
Europe, except U.K.
and Eire
U.K. and Eire
U.K. and Eire
Simple operations for watching a TV programme

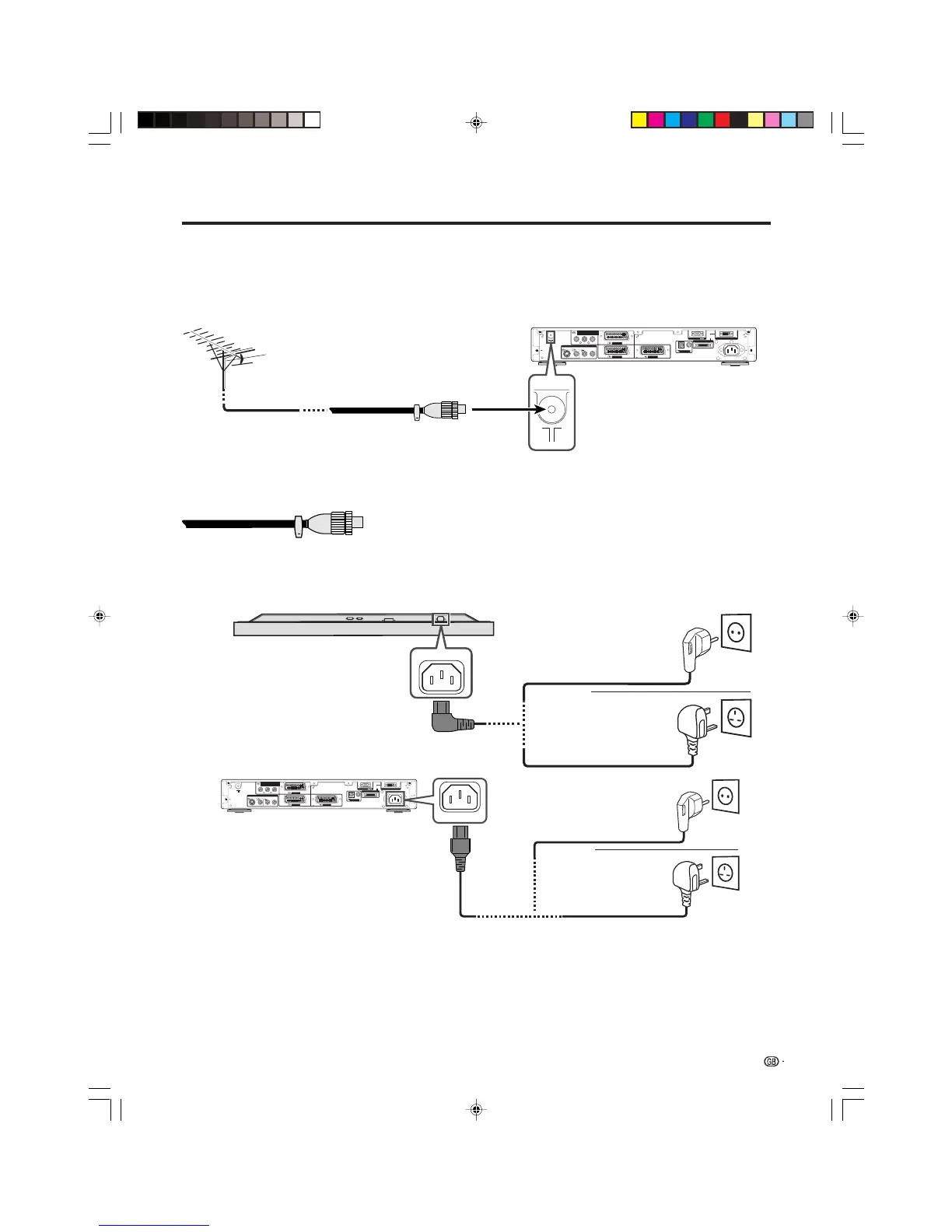

Basic connection
Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for coaxial cable.
Antenna cables-commercially available
If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325
plug (IEC 169-2), plug it into the antenna terminal at the rear of the Media
Receiver.
Connecting to the power cord
Plasma Display (bottom view)
Media Receiver (rear view)
A
• Always turn off the main power of Plasma Display and Media Receiver when connecting the power cords.
• Disconnect the power cord from the power outlet, Plasma Display and Media Receiver when the System is not going to
be used long period of time.
PDP-503HDE/(E)-b 8/31/02, 5:08 PM12
