Using external equipment
(GRAY)
RS-232C
IN
OUT
CONTROL
SYSTEM
CABLE
CONTROL
IN
OUT
CONTROL
IN
OUT
CONTROL
IN
OUT

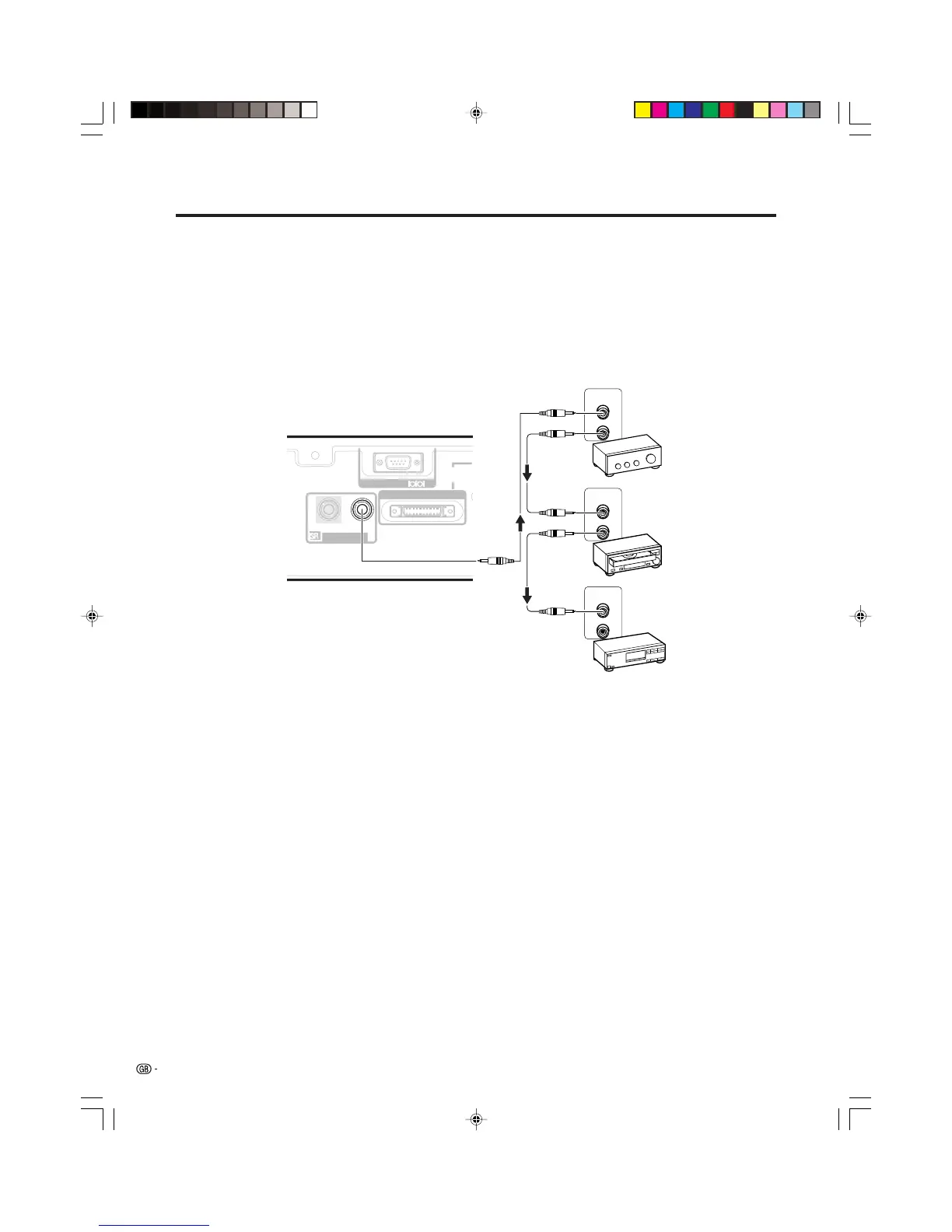

Media Receiver (rear view)
Control cord connection
When connecting control cords to the Media Receiver form other remote controlled PIONEER components
bearing the t logo, remote control operations are performed through the sensor on the System side.
After connecting to a CONTROL IN jack on another component, its sensor will no longer receive signals. To
operate a component remotely, point the remote control unit of the connected component at the remote control
sensor on the System.
A
• Make sure the power is turned off when making connections.
• Please complete all component connections before making control cord connections.
The control cables (not supplied) are monaural cables
with mini plugs (no resistance).
PDP-503HDE/(E)-d 9/2/02, 9:39 AM45
