Using external equipment
MONITOR OUTPUT
S-VIDEO
VIDEO
R–AUDIO–L
(GRAY)
RS-232C
IN
OUT
CONTROL
INPUT 3
INPUT 2
Y
P
B PR
COMPONENT
AC INLET
SYSTEM
CABLE
(WHITE)
INPUT 1

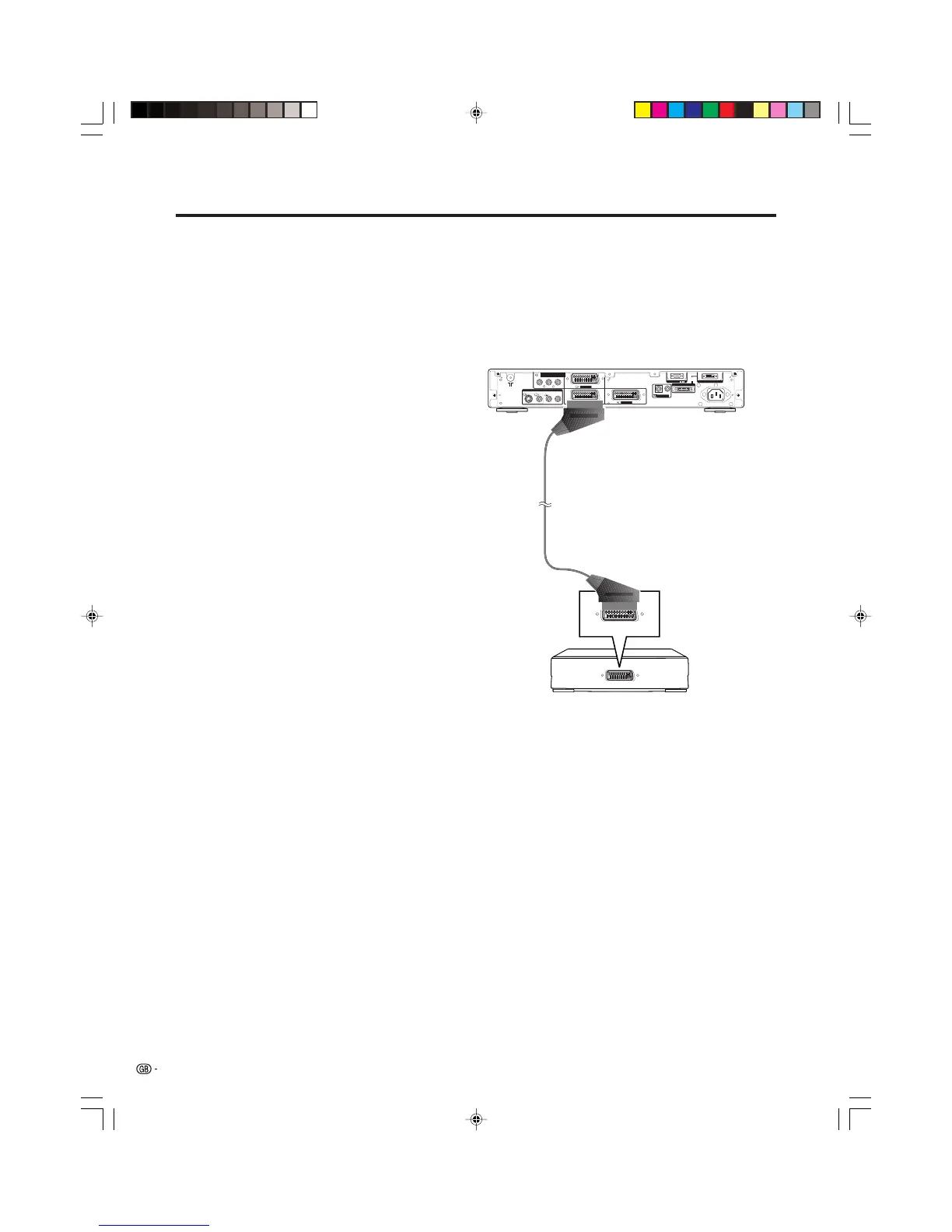

SCART cable
(commercially available)
Media Receiver (rear view)
VCR
Using i/o Link.A
This System incorporates four typical i/o Link.A functions for smooth connections between Media Receiver and
other audiovisual equipment.
A
• Only works when the audiovisual equipment is connected to the INPUT 2 terminal on the Media Receiver with i/o Link.A
via a fully wired 21-pin SCART.
One Touch Play
While the Plasma Display System is in standby mode,
it automatically turns on and plays back the image
from the audiovisual source (e.g. VCR, DVD).
System Standby
When the connected audiovisual equipment (e.g. VCR,
DVD) enters standby mode, so does the Plasma
Display System.
WYSIWYR (What You See Is What You
Record)
When the remote control unit of the connected VCR
has the WYSIWYR button, you can automatically start
recording by pressing the WYSIWYR button.
Preset Download
Automatically transfer the channel preset information
from the tuner on the Plasma Display System to the
one on the connected audiovisual equipment (e.g.
VCR) via the INPUT 2 terminal.
A
• Refer to operation manuals of each external equipment
for the details.
