Using external equipment
MONITOR OUTPUT
S-VIDEO
VIDEO
R–AUDIO–L
(GRAY)
RS-232C
IN
OUT
CONTROL
INPUT 3
INPUT 2
Y
P
B PR
COMPONENT
AC INLET
SYSTEM
CABLE
(WHITE)
INPUT 1
POWER
STANDBY/ON
MEDIA RECEIVER
PDP-R03E
Plasma Display
(rear view)
DVD player
Media Receiver
(rear view)
Media Receiver
(front view)
AV Receiver
(Built-in Tuner
Amp)
VCR Decoder
Game console/
Camcorder
Computer
Power cord
Power cord

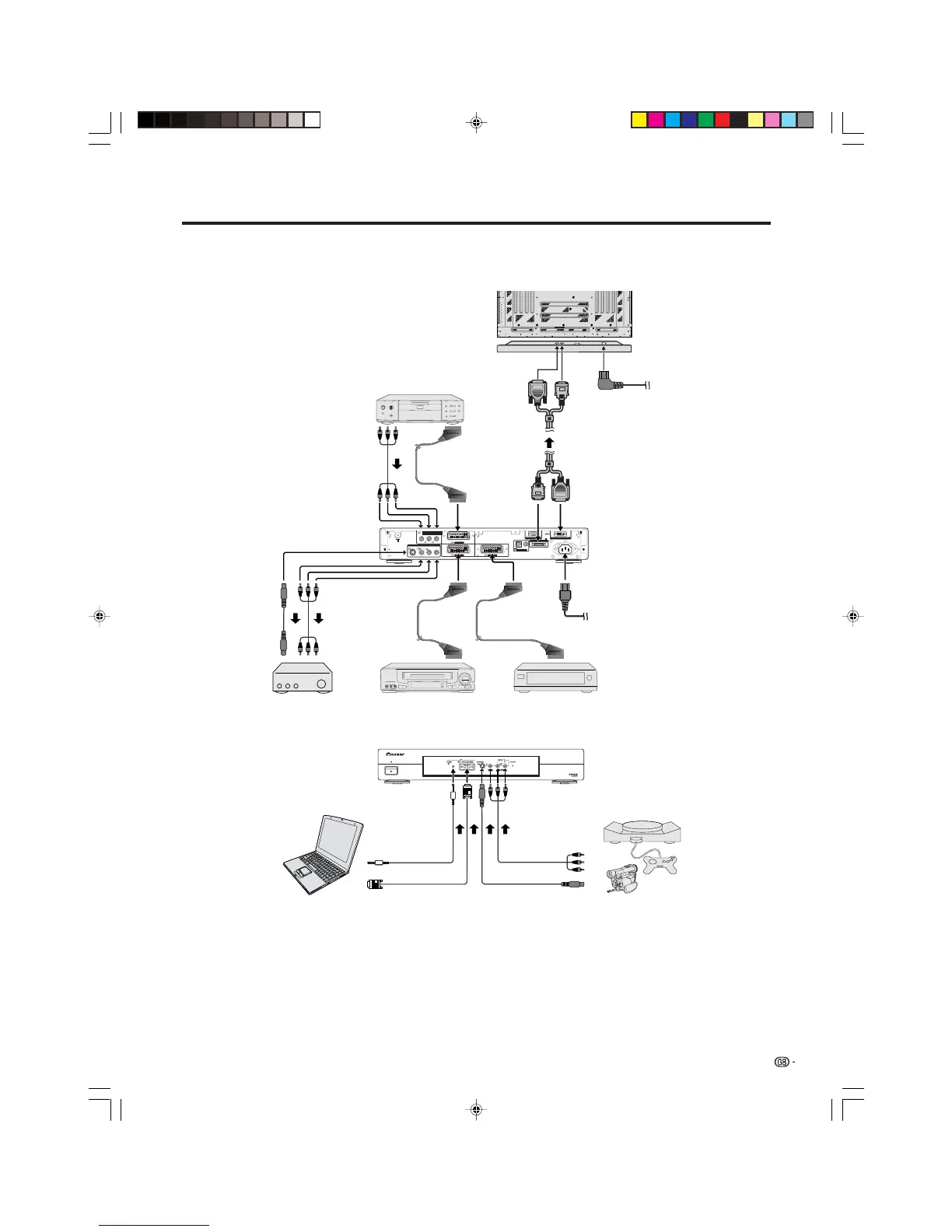

You can connect many types of external equipment to your Plasma Display System, like a decoder, VCR, DVD
player, computer, game console and camcorder. To view external source images, select the input source from
b on the remote control unit or INPUT on the Plasma Display.
L
• To protect all equipment, always turn off the Media Receiver before connecting to a decoder, VCR, DVD player, computer,
game console, camcorder or other external equipment.
A
• Please refer to the relevant operation manual (DVD player, computer, etc.) carefully before making connections.
