7
Preparation
MONITOR OUTPUT
S-VIDEO
VIDEO
R–AUDIO–L
(GRAY)
RS-232C
IN
OUT
CONTROL
INPUT 3
INPUT 2
Y
P
B PR
COMPONENT
AC INLET
SYSTEM
CABLE
(WHITE)
INPUT 1
System cable
Media Receiver (rear view)
Power cord
Plasma Display (rear view)
Power cord
System cable
(bottom view)
For details concerning
optional PIONEER speaker
installation, please refer to
the speaker instruction
manual provided.
(GRAY)(WHITE)
(GRAY)
(WHITE)

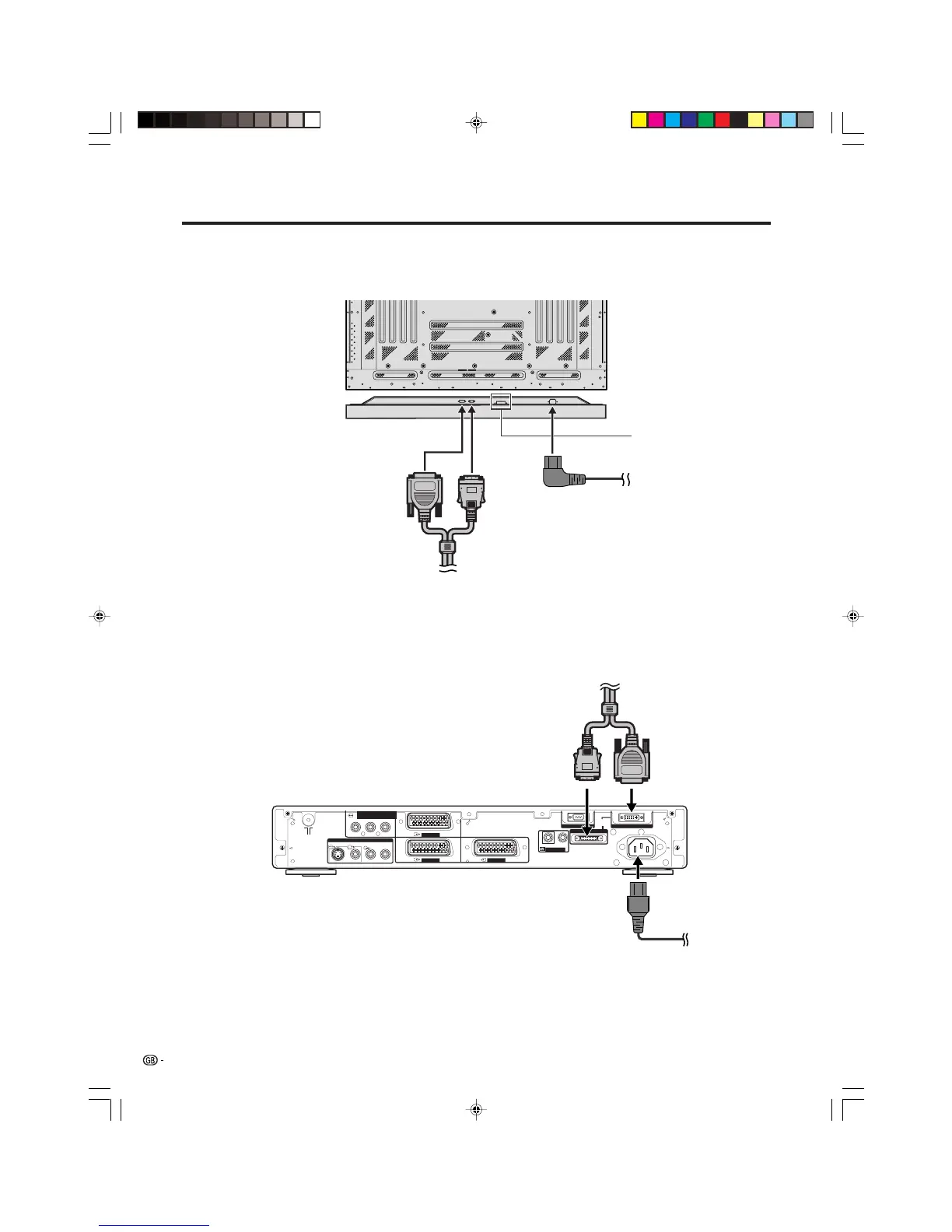

Setting the system
1. Connecting the system cable and the power cord to the Plasma Display
2. Connecting the system cable and the power cord to the Media Receiver
L
• THESE SPEAKER TERMINALS CAN BE UNDER HAZARDOUS VOLTAGE WHEN YOU CONNECT OR DISCONNECT
THE SPEAKER CABLES, TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT TOUCH UNINSULATED PARTS
BEFORE DISCONNECTING THE POWER CORD.
PDP-503HDE/(E)-a 8/31/02, 5:08 PM7
To Next Page
