Using external equipment
Option
MENU
Input Select
INPUT1 [AV]
RGB
AV
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
MONITOR OUTPUT
S-VIDEO
VIDEO
R–AUDIO–L
(GRAY)
RS-232C
IN
OUT
CONTROL
INPUT 3
INPUT 2
Y
P
B PR
COMPONENT
AC INLET
SYSTEM
CABLE
(WHITE)
INPUT 1
Media Receiver (rear view)
Decoder
SCART cable
(commercially available)

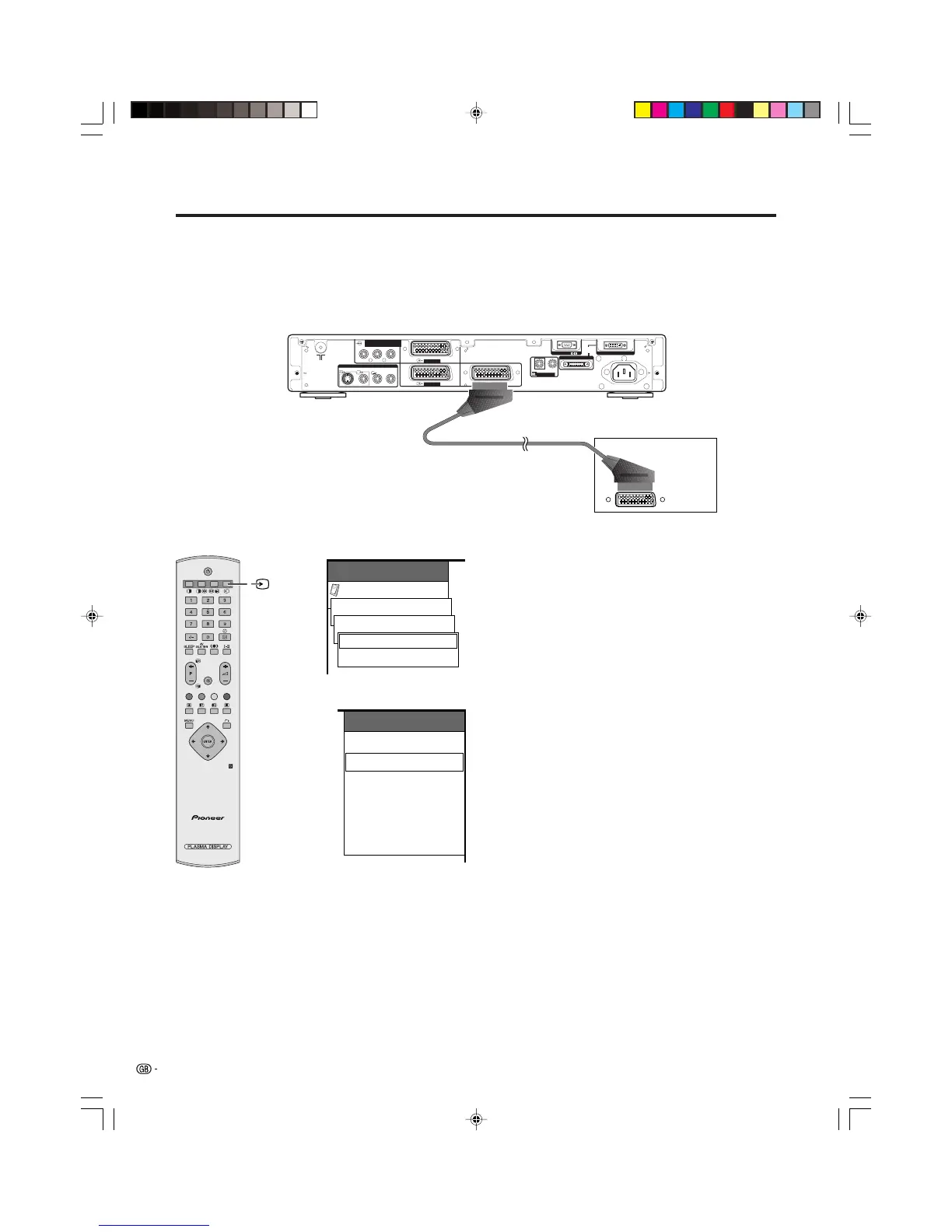

Watching a decoder image
Connecting a decoder
You can use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.
Displaying a programme
When connecting to the INPUT 1 terminal, select
“INPUT1” and set the correct input signal type on “Input
Select” in the menu. (See page 49.)
The setting is stored and can be selected on the
“INPUT SOURCE” menu.
To watch a decoder image, select “INPUT1” from the
“INPUT SOURCE” menu using b on the remote
control unit or INPUT on the Plasma Display. (See page
49.)
A
• Each time b is pressed, the input source toggles.
• If the decoder image does not come in clearly, you may
need to change the input signal type setting on the “Input
Select” menu.
• It is recommended to connect to the INPUT 1 terminal
when using a decoder for ground wave signal input. If
INPUT 1 signals preset in auto installation or programme
setup, make sure to set “Decoder” to “INPUT1” in the
Programme Setup “Manual” menu. (See page 29.)
• Refer to your decoder operation manual for the signal type.
