PDP-5010FD
12
1234
1 234
C
D
F
A
B
E

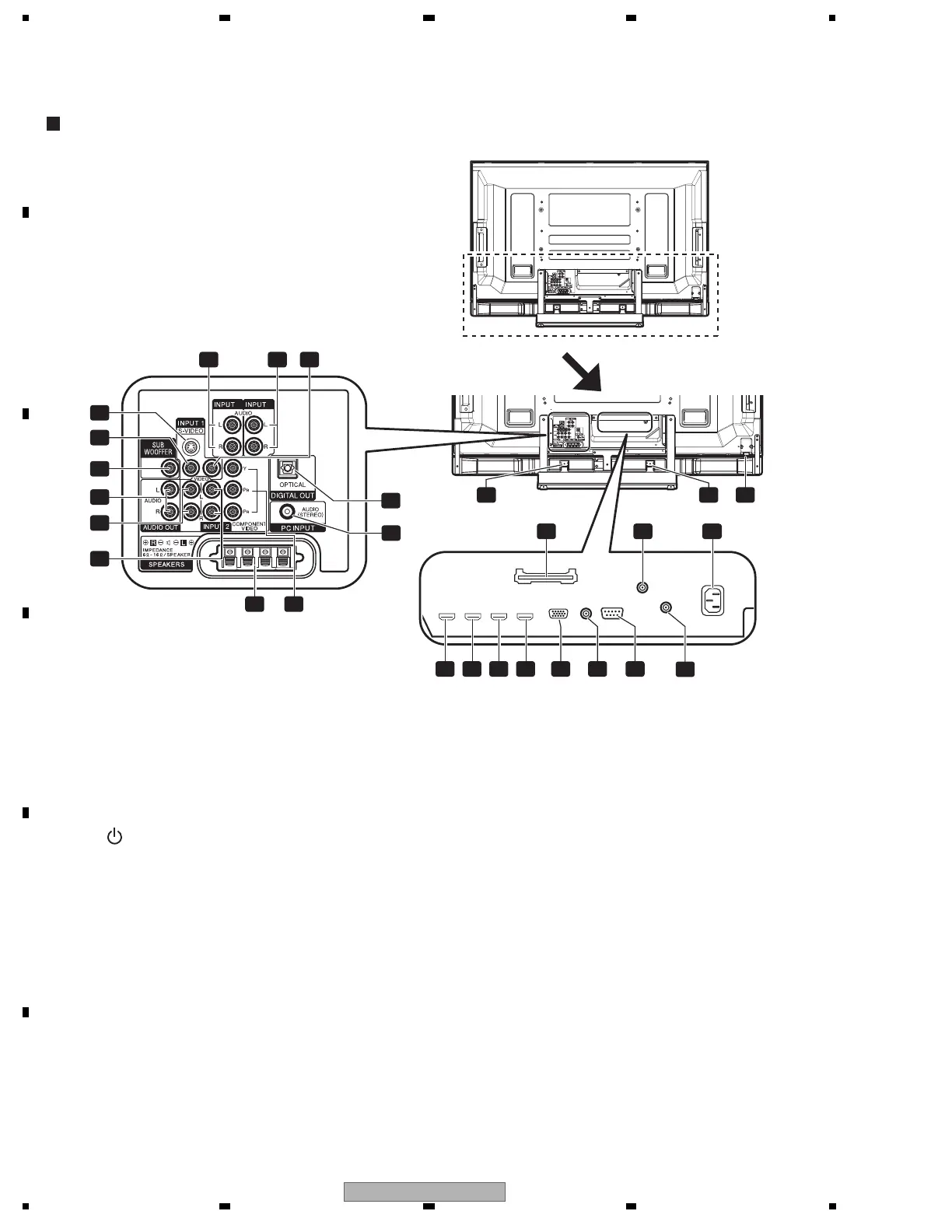

Rear Section
45
45
45
6
2 3
4
7 85
12
11
9
10
21
23
22
18
14
13
15
16
17
19
20
25 24
26
27
1
* For exact terminal positions, refer to
the terminal position sheet located
near the terminal compartment.
1
button
2
CableCARD™ slot
3
ANT/CABLE A IN terminal
4
AC IN terminal
5
INPUT 4 terminal (HDMI)
6
INPUT 5 terminal (HDMI)
7
INPUT 6 terminal (HDMI)
8
INPUT 7 terminal (HDMI)
9
PC INPUT terminal (ANALOG RGB)
10
CONTROL OUT terminal
11
RS-232C terminal (used for factory setup)
12
ANT B IN terminal
13
INPUT 1 terminal (S-VIDEO)
14
INPUT 1 terminal (VIDEO)
15
SUB WOOFER terminal
16
AUDIO OUT terminals (AUDIO)
17
INPUT 1 terminals (AUDIO)
18
INPUT 2 terminals (AUDIO)
19
INPUT 4 terminals (AUDIO)
20
INPUT 5 terminals (AUDIO)
21
INPUT 2 terminal (VIDEO)
22
DIGITAL OUT terminal (OPTICAL)
23
PC INPUT terminal (AUDIO)
24
INPUT 2 terminals (COMPONENT VIDEO: Y, P
B
,
PP
R
)
25
SPEAKERS (R/L) terminals
26
SPEAKERS (R) terminal (Speaker side)
27
SPEAKERS (L) terminal (Speaker side)
