Pioneer PDP-5010FD Service Manual

PDP-5010FD
17
5678
56
7
8
C
D
F
A
B
E

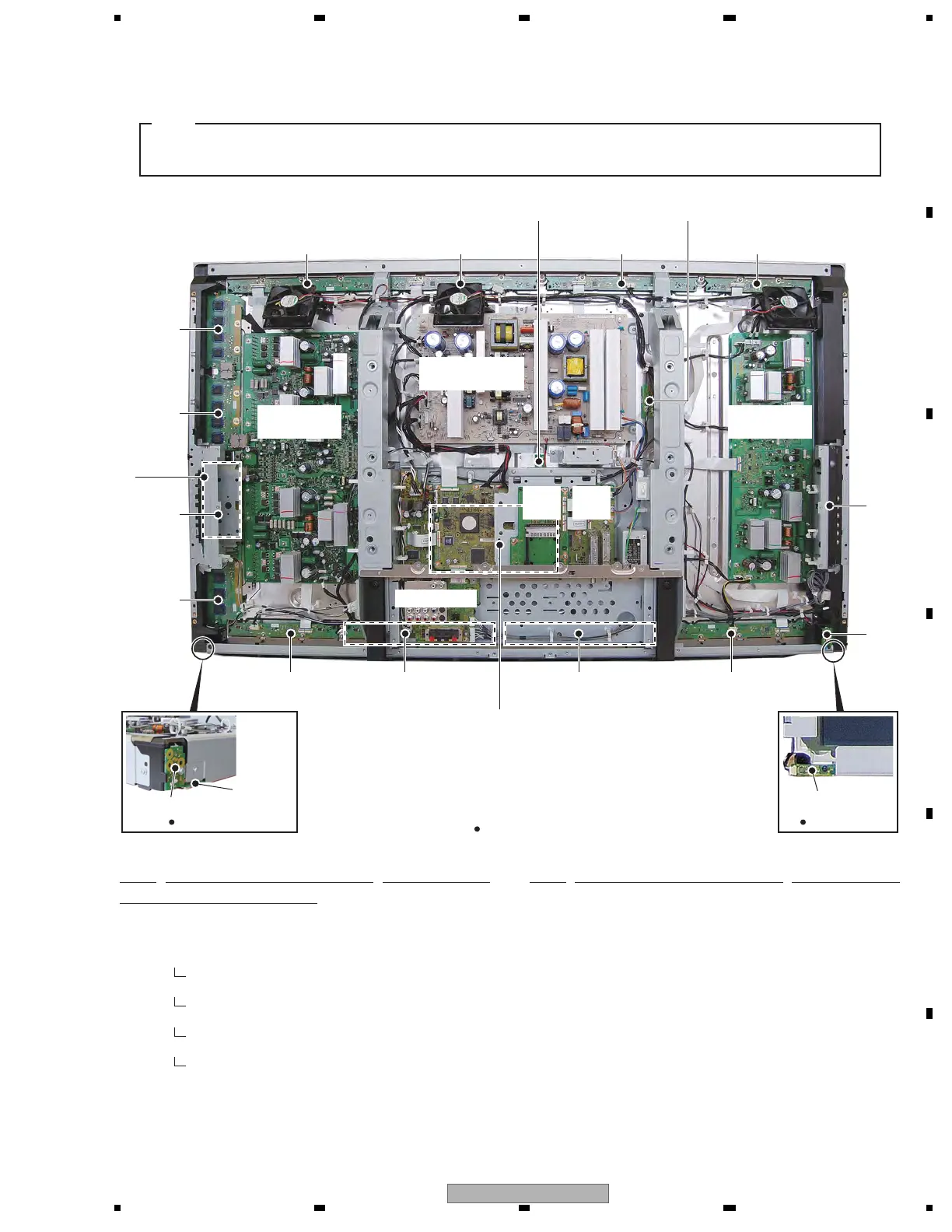

3.3 PCB LOCATION
50F X DRIVE
Assy
50F Y DRIVE
Assy
50F SCAN D
Assy
50F SCAN C
Assy
50F SCAN A
Assy
50F SCAN B
Assy
SIDE KEY Assy
SIDE IO AssyFHD POWER SW
Assy
MAIN
Assy
TA NSHI Assy
POWER SUPPLY
Unit
FHD RLS
Assy
FHD IR Assy
Bottom view
Rear view
50FHD LED Assy
Front view
50F ADDRESS S
Assy
50F ADDRESS L
Assy
50F ADDRESS L
Assy
50F ADDRESS L
Assy
50F DIGITAL
Assy
50F ADDRESS S
Assy
FHD FAN CONNECT
Assy
PA NEL SENSOR
Assy
50F ADDRESS L
Assy
50F ADDRESS L
Assy
50F ADDRESS L
Assy
Mark No. Description Part No.
LIST OF ASSEMBLIES
NSP 50F ADDRESS L ASSY AWW1310
NSP 50F ADDRESS S ASSY AWW1311
NSP 50F SCAN A ASSY AWW1312
IC2801 - IC2804 AN16174A
NSP 50F SCAN B ASSY AWW1313
IC2901 - IC2904 AN16174A
NSP 50F SCAN C ASSY AWW1314
IC3001 - IC3004 AN16174A
NSP 50F SCAN D ASSY AWW1315
IC3101 - IC3104 AN16174A
50F X DRIVE ASSY AWV2510
50F Y DRIVE ASSY AWV2511
PANEL SENSOR ASSY AWW1309
50F DIGITAL ASSY AWW1316
Mark No. Description Part No.
> MAIN ASSY AWV2457
SIDE IO ASSY AWW1274
SIDE KEY ASSY AWW1275
TANSHI ASSY AWW1334
FHD IR ASSY AWW1289
FHD FAN CONNECT ASSY AWW1290
50FHD LED ASSY AWW1291
FHD RLS ASSY AWW1292
FHD POWER SW ASSY AWW1293
POD ASSY AWW1295
> POWER SUPPLY UNIT AXY1168
PDP SERVICE ASSY 508F AWU1272
POD
Assy
The wiring shown in the photo is different from the actual wiring, because the product in the photo is a prototype.
Upon servicing, be sure to restore the original wiring of the unit after repair work.
Note:
