PDP-5010FD
174
1234
1 234
C
D
F
A
B
E

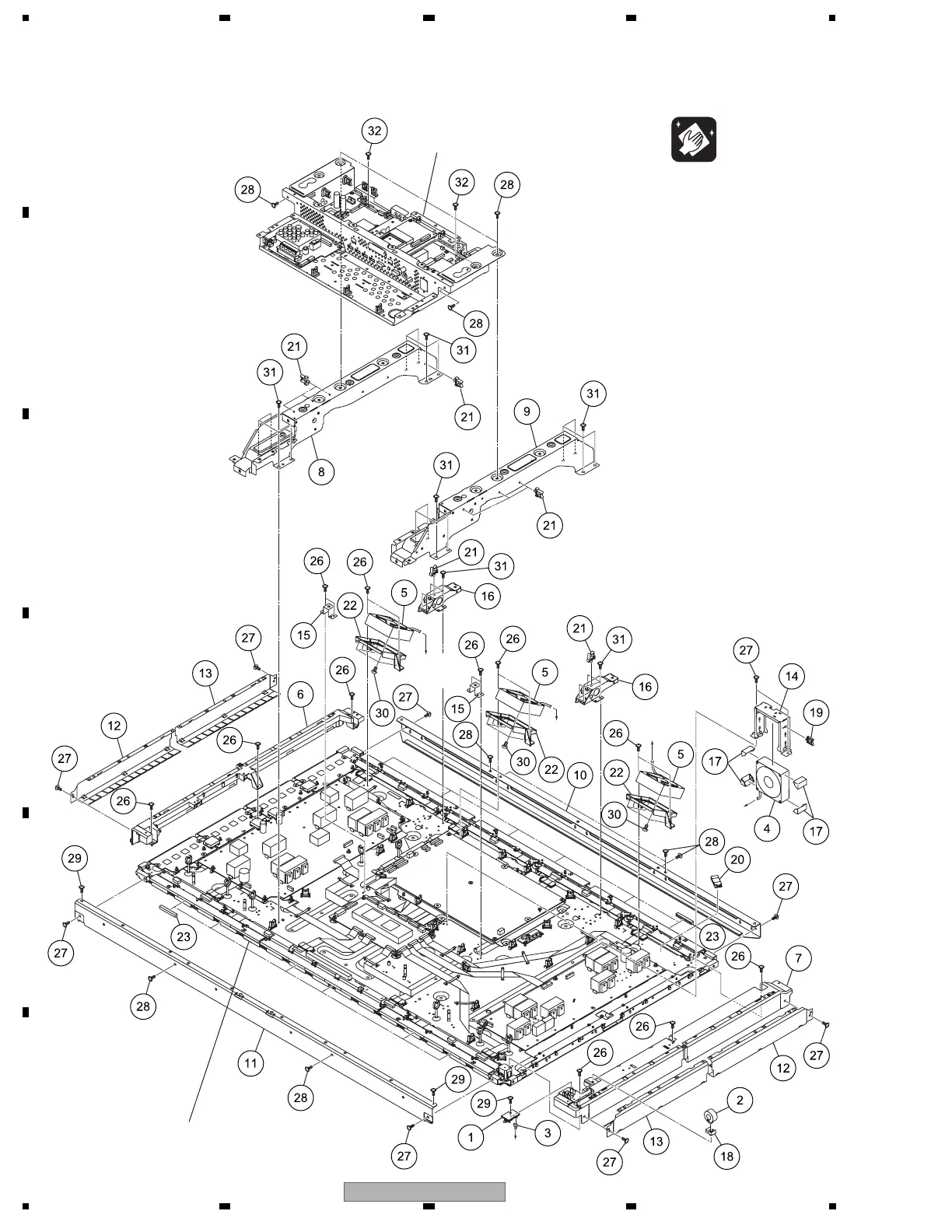

10.4 CHASSIS SECTION (1/2)
FHD FAN
CONNECT
CN9553
MAIN
CN4103
POWER
SUPPLY
P10
FHD FAN
CONNECT
CN9555
FHD FAN
CONNECT
CN9554
Cleaning liquid : GEM1004
Cleaning paper : GED-008
Refer to
"10.7 MULTI BASE SECTION".
Refer to
"10.5 CHASSIS SECTION (2/2)".
