PDP-5071PU
182
1234
1234
C
D
F
A
B
E
10. GENERAL INFORMATION

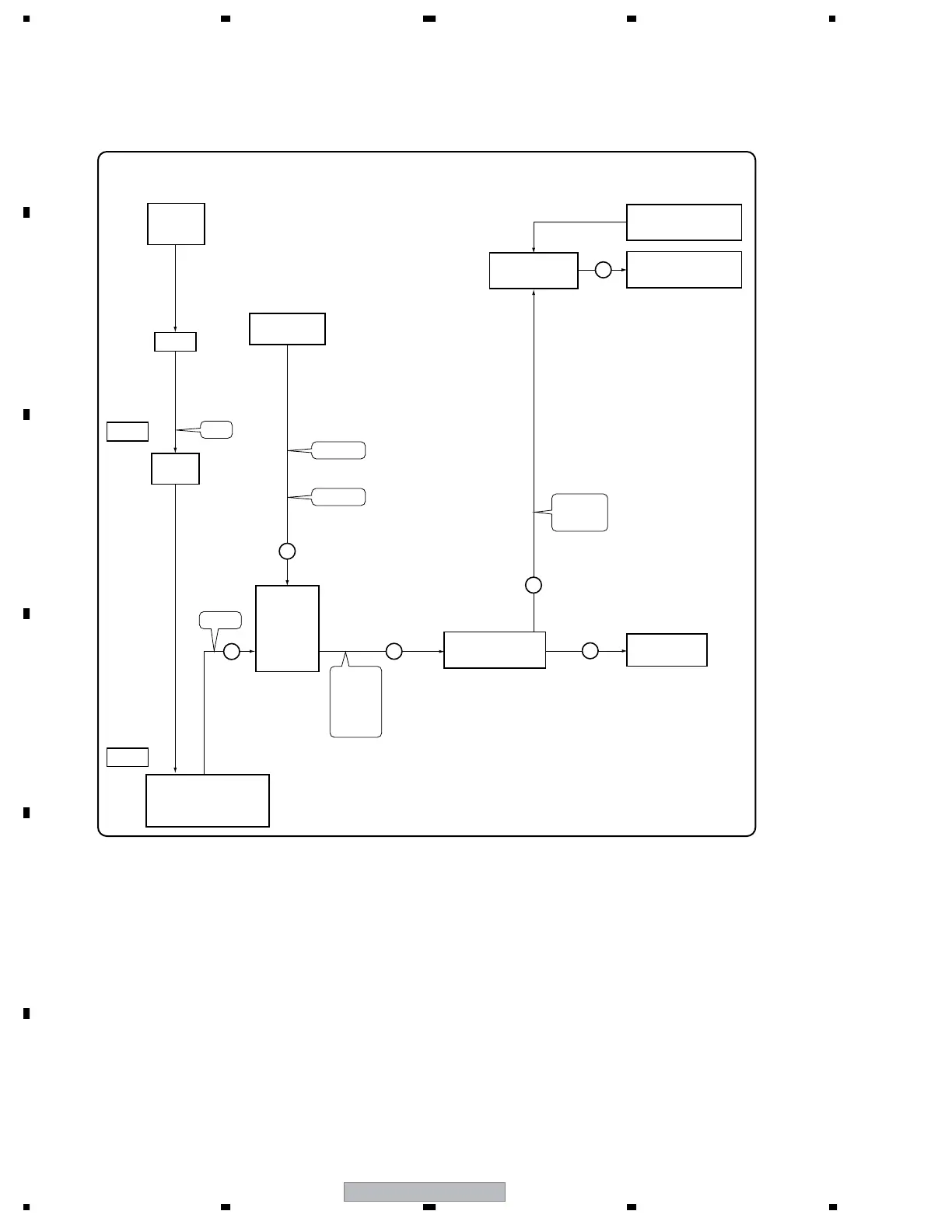

10.1 POWER ON SEQUENCE
1 : The remote control (or KEY) signal is input to the IF microcomputer.
2 : The IF microcomputer sends the operation data to the main microcomputer.
3 : The main microcomputer issues a startup command (PON) to the MOD microcomputer.
4 : The MOD microcomputer controls the relay of the power MOD of the PDP to startup the power of the PDP.
5 : The main microcomputer controls the ASIC power within the MTB to startup the power of the MTB.
MOD
Microcomputer
Power MOD
RELAY Control
BUFF
MTB
REM
BUFF
Q8303
IO
ASIC Power
Control
Power MOD
STB Control
REM
infrared
receiver
Side Keys
IF_UCOM
IC8301
MAIN_UCOM
IC8401
SR Jack
JA8810 (Elite only)
JA8811
4
1
2
5
3
1
KEY_AD2
KEY_AD1
TXD_MD
RXD_MD
REQ_MD
SR_IN
TXD_IF
RXD_IF
CE_IF
REQ_IF
BUSY_IF
CLK_IF
