PDP-5071PU
46
1234
1234
C
D
F
A
B
E

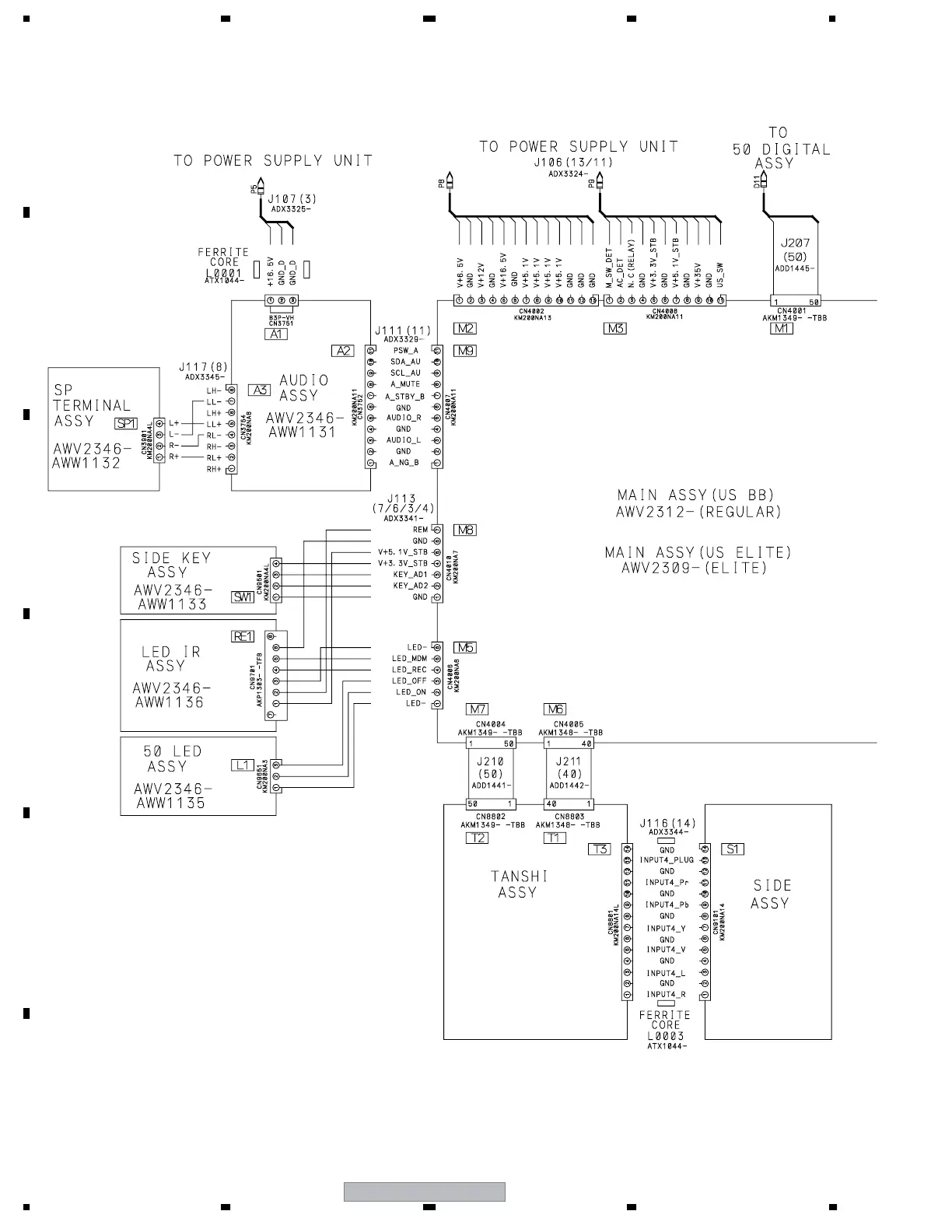

4.2 OVERALL CONNECTION DIAGRAM (2/2)
AWV2313- (REGULAR)
AWW1156
(REGULAR)
AWV2313-
AWW1157
AWV2310- (ELITE)
AWW1153
(ELITE)
AWV2310-
AWW1155
