PDP-5071PU
25
5678
56
7
8
C
D
F
A
B
E
PDP SERVICE ASSY 507 (AWU1212) PARTS LIST

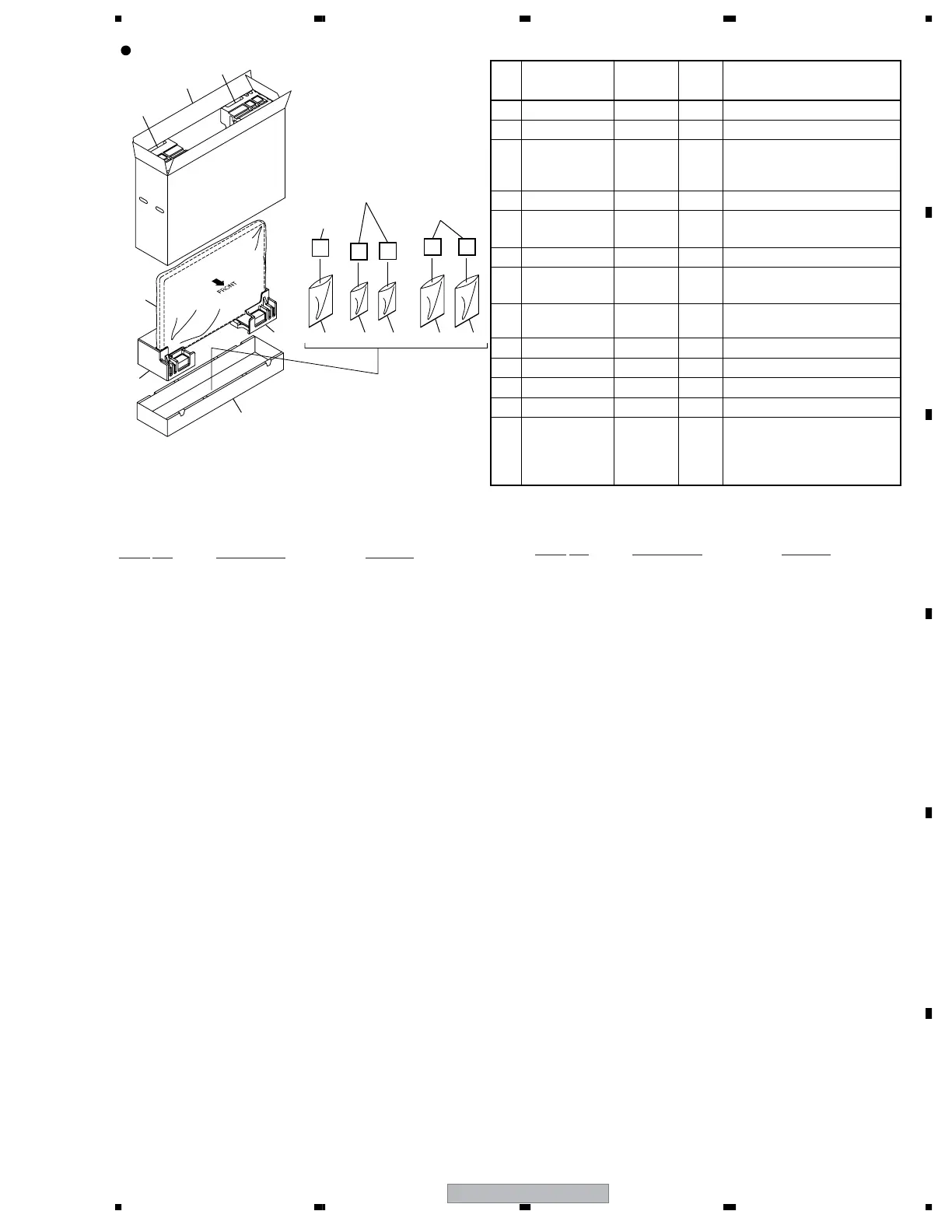

Packing Section
37
8
45
44
46
42
40
41
43
38 38 39 39
10 ×4, 11 ×2, 12 ×11,
13 ×9, 15 ×2, 16 ×2,
17 ×4, 18 ×10, 25 ×2,
26 ×6, 27 ×2, 36 ×1
20 to 24
No. Part Name Part No.
No. of
pcs
Remarks
8 Clamp base ANG3030 ×1 Not used
10 PCB spacer AEC1126 ×4 Not used
12 Wire saddle AEC1745 ×11
Ten of the 11 wire saddles are to be used
with this unit. Attach them to the places
where T indications are engraved.
13 Wire saddle AEC1751 ×9 Not used
15 PCB support AEC1938 ×2
Attach them to the places where C
indications are engraved.
16 PCB support AEC1958 ×2 Not used
17 Harness lifter 28 AEC1982 ×4
Attach them to the places where U
indications are engraved.
18 Ferrite clamp AEC1986 ×10
Eight of the 10 ferrite clamps are to be
used with this unit.
22 DC sheet A AMR3612 ×1 Not used
23 Address sheet E AMR3621 ×1 Not used
24 Address sheet D AMR3631 ×1 Not used
25 Gasket E ANK1874 ×2 Not used
36 Screw
TBZ40P080FTB
×13
Twelve screws have been already
secured to the Assy.
The remaining one screw packed in a
plastic bag is not used with this unit.
(*)
Mark
No. Description Part No.
NSP 1 Panel Chassis (507) Assy AWU1148
2Front Chassis VL (50) AMA1014
3Front Chassis VR (507) AMA1022
4 Sub Frame L Assy 507 ANA1945
5 Sub Frame R Assy 507 ANA1946
6Front Chassis H Assy (507) ANA2031
7 Conductive Plate X ANG2905
8 Clamp Base (
*
) ANG3030
9 Cushion AEB1424
NSP 10 PCB Spacer (
*
) AEC1126
11 PCB Spacer AEC1570
12 Wire Saddle (
*
) AEC1745
13 Wire Saddle (
*
) AEC1751
14 Screw Rivet AEC1877
15 PCB Support (
*
) AEC1938
16 PCB Support (
*
) AEC1958
17 Harness Lifter 28 (
*
) AEC1982
18 Ferrite Clamp (
*
) AEC1986
19 Re-use PCB Spacer AEC2087
20 Address Sheet A AMR3628
21 Address Sheet F AMR3646
22 DC Sheet A (
*
) AMR3612
23 Address Sheet E (
*
) AMR3621
24 Address Sheet D (
*
) AMR3631
25 Gasket E (
*
) ANK1874
26 Gasket AV8 ANK1881
27 Rivet A BEC1158
NSP 28 Front Case Assy (507SV) AMB2977
29 Rear Case (507) ANE1656
30 Caution Label AAX3031
NSP 31 Drive Voltage Label ARW1097
32 Screw (3 x 40P) ABA1332
33 Screw ABA1351
34 Screw ABA1364
35 Screw AMZ30P060FTB
36 Screw (
*
) TBZ40P080FTB
37 Polyethylene Bag AHG1337
38 Polyethylene Bag S AHG1338
39 Polyethylene Bag AHG1340
40 Pad (507 T-L) AHA2538
41 Pad (507 T-R) AHA2539
42 Pad (507 B-L) AHA2540
43 Pad (507 B-R) AHA2541
44 Under Carton (507) AHD3473
45 Upper Carton (507SV) AHD3550
46 Protect Sheet AHG1331
47 Screw ABZ30P080FTC
48 Screw APZ30P080FTB
Mark
No. Description Part No.
To Next Page
