Pioneer PDP-5071PU User Manual

PDP-5071PU
80
1234
1234
C
D
F
A
B
E

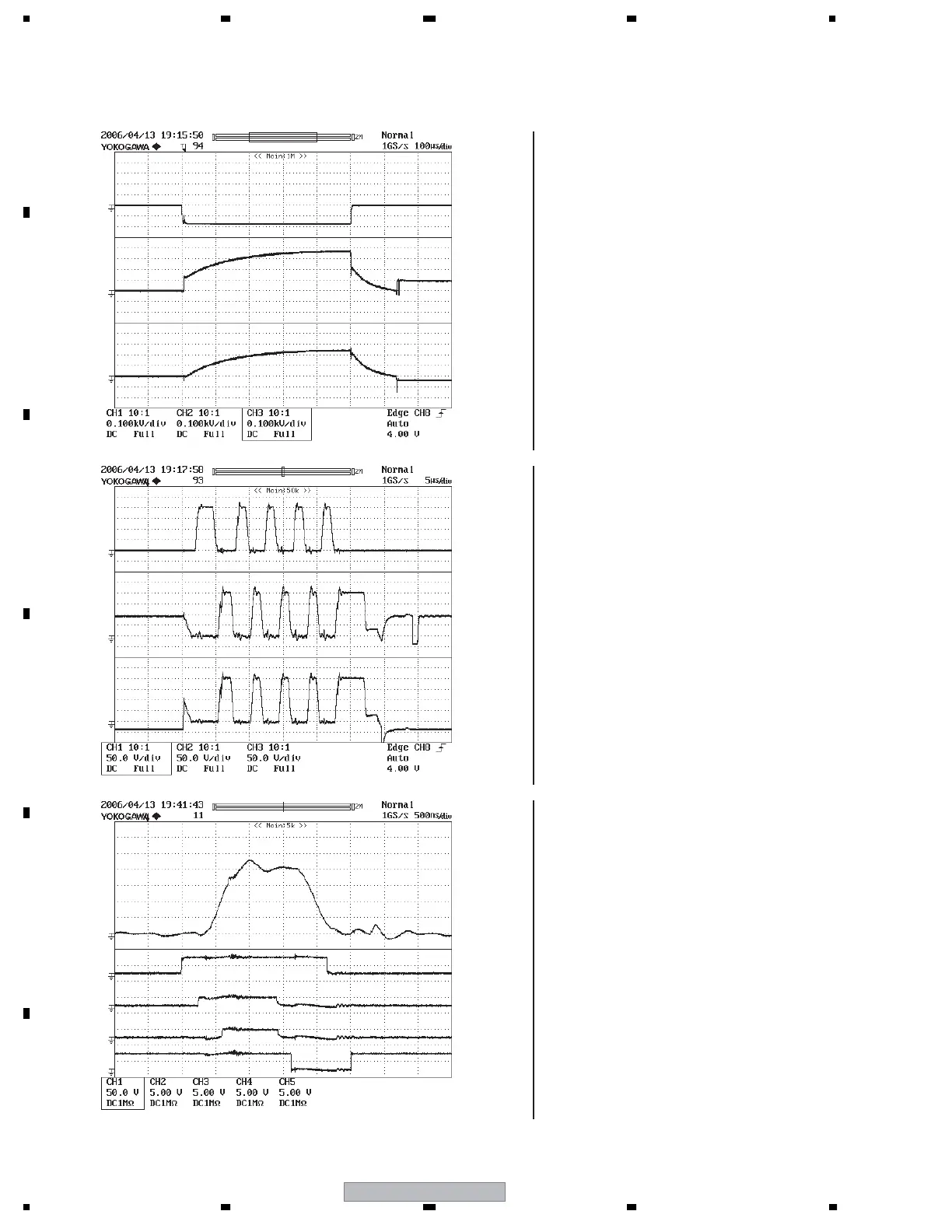

CH1 R1248 (XPSUS) -K1202(SUSGND)
V:100 V/div H:100 uS/div
(X drive Assy)
CH2 K2901 (ScanOUT) -K2701(SUSGND)
V:100 V/div H:100 uS/div
(Y drive Assy)
CH3 F2207 (YPSUS) -K2203(SUSGND)
V:100 V/div H:100 uS/div
(Y drive Assy)
CH1 R1248 (XPSUS) -K1202(SUSGND)
V:50 V/div H:5 uS/div
(X drive Assy)
CH2 K2901 (ScanOUT) -K2701(SUSGND)
V:50 V/div H:5 uS/div
(Y drive Assy)
CH3 F2207 (YPSUS) -K2203(SUSGND)
V:50 V/div H:5 uS/div
(Y drive Assy)
CH1 F2207 (YPSUS) -K2203(SUSGND)
V:100 V/div H:500 nS/div
(Y drive Assy)
CH2 K2021 (YSUS_G) -K2014(GND)
V:5 V/div H:500 nS/div
(Y drive Assy)
CH3 K2009 (YSUS_U) -K2014(GND)
V:5 V/div H:500 nS/div
(Y drive Assy)
CH4 K2013 (YSUS_B) -K2014(GND)
V:5 V/div H:500 nS/div
(Y drive Assy)
CH5 K2010 (YSUS_D) -K2014(GND)
V:5 V/div H:500 nS/div
(Y drive Assy)
50 X/Y DRIVE Assy Waveform
#
$
%
^
0
!
-
=
~
@
9
