LANCE
II
SERVICE
MANUAL
25.
BOLT,
WASHER
& NUT
26.
BOLT,
WASHER
& NUT
27. BOLT
WASHER
& NUT
1. TUBE,
L. OUTER
9. WASHER.
SPACER
17. CLEVIS
END
21. BRACKET
2.
TUBE,
L. CENTER
10. ARM,
IDLER
16.
TOE BRAKE
PEDAL
29.
VEE BRACE
3.
TUBE,
R. CENTER
11. ROD,
BRAKE
CYLINDER
19.
CONTROL
CABLE,
RUDDER
30.
CLEVIS
PIN &
COTTER
PIN
4. TUBE,
R.
OUTER
12.
BRAKE
CYLINDER
20.
BOLT, WASHER,
NUT &
COTTER
PIN
31.
RUDDER
PEDAL,
L. OUTER
5
PLATE
13. CLEVIS
PIN&COTTER
PIN
21.
BUNGEE,
NOSE
WHEEL
STEERING
32.
RUDDER
PEDAL,
L.
INNER
6.
BOLT &
NUT
14. TUBE,
RUDDER
CONTROL
22.
JAM NUT
33.
RUDDER
PEDAL,
R.
INNER
7. SUPPORT
BLOCK,
UPPER
IS. CLEVIS
ROD
23. ROD
END.
BUNGEE
34.
RUDDER
PEDAL,
R. OUTER
2. SUPPORT
BLOCK,
LOWER
16.
CLEVIS
PIN &
COTTER
PIN
2 4. BOLT
&
NUT
35. BRACKET,
TUBE
SUPPORT

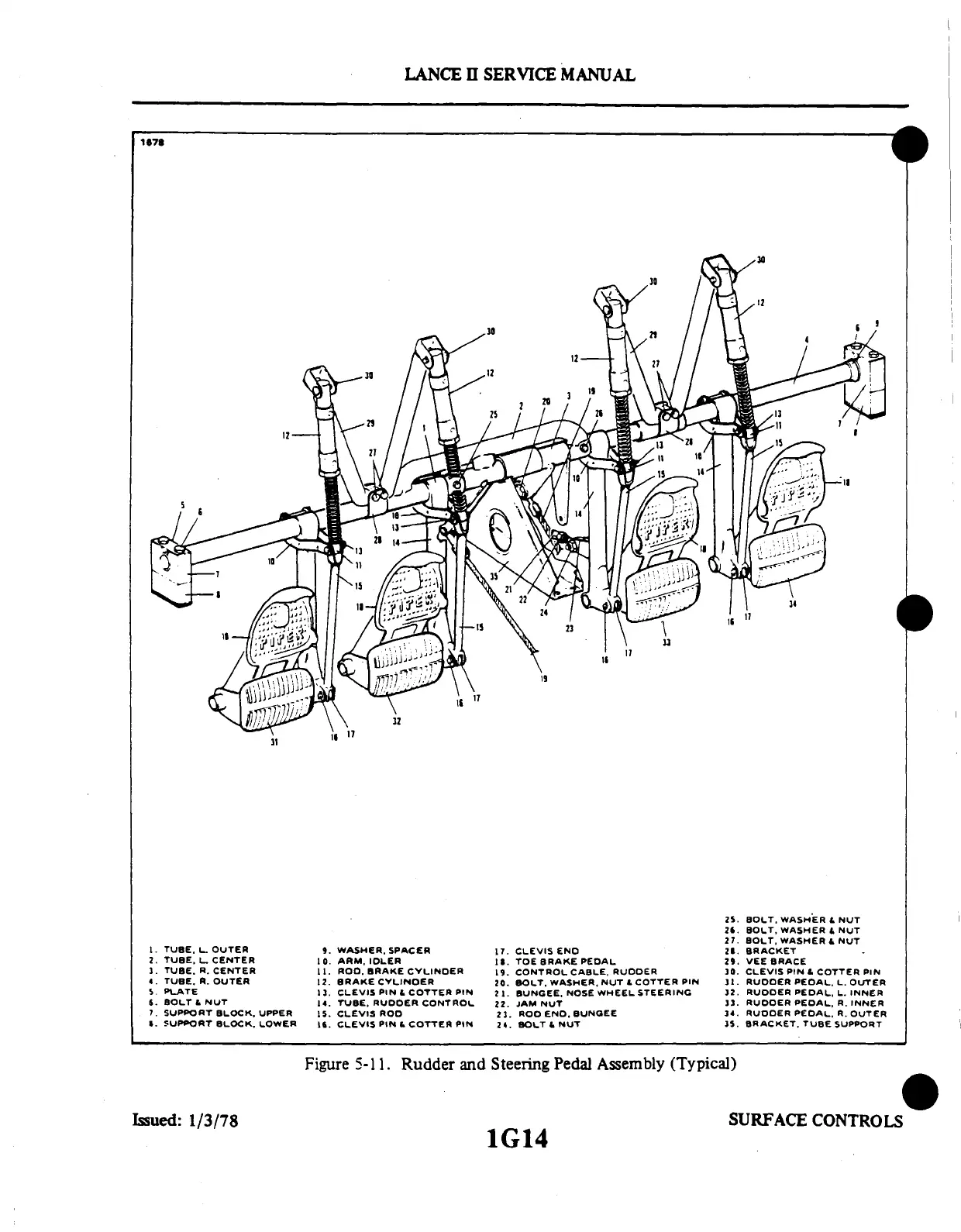

Figure
5-11.
Rudder
and
Steering
Pedal
Assembly
(Typical)
Issued:
1/3/78
SURFACE
CONTROLS
1G14
1G14
