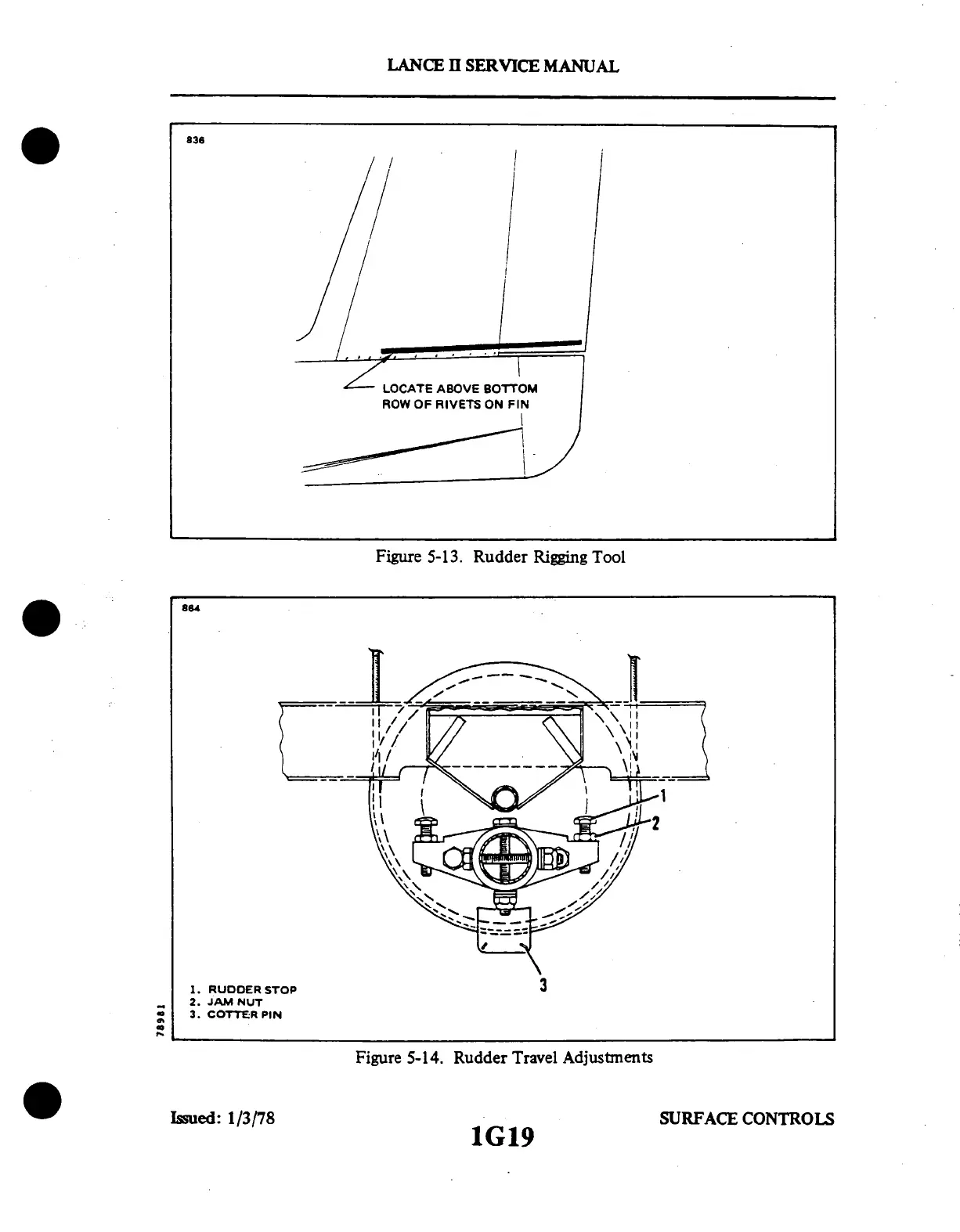

LANCE
II
SERVICE
MANUAL
836
LOCATE
ABOVE
BOTTOM
ROW OF RIVETS ON FIN
Figure
5-13.
Rudder
Rigging
Tool
864
1. RUDDER
STOP
2.
JAM
NUT
3. COTTER PIN
Figure
5-14. Rudder Travel
Adjustments
Issued:
1/3/78
1G19
SURFACE
CONTROLS
