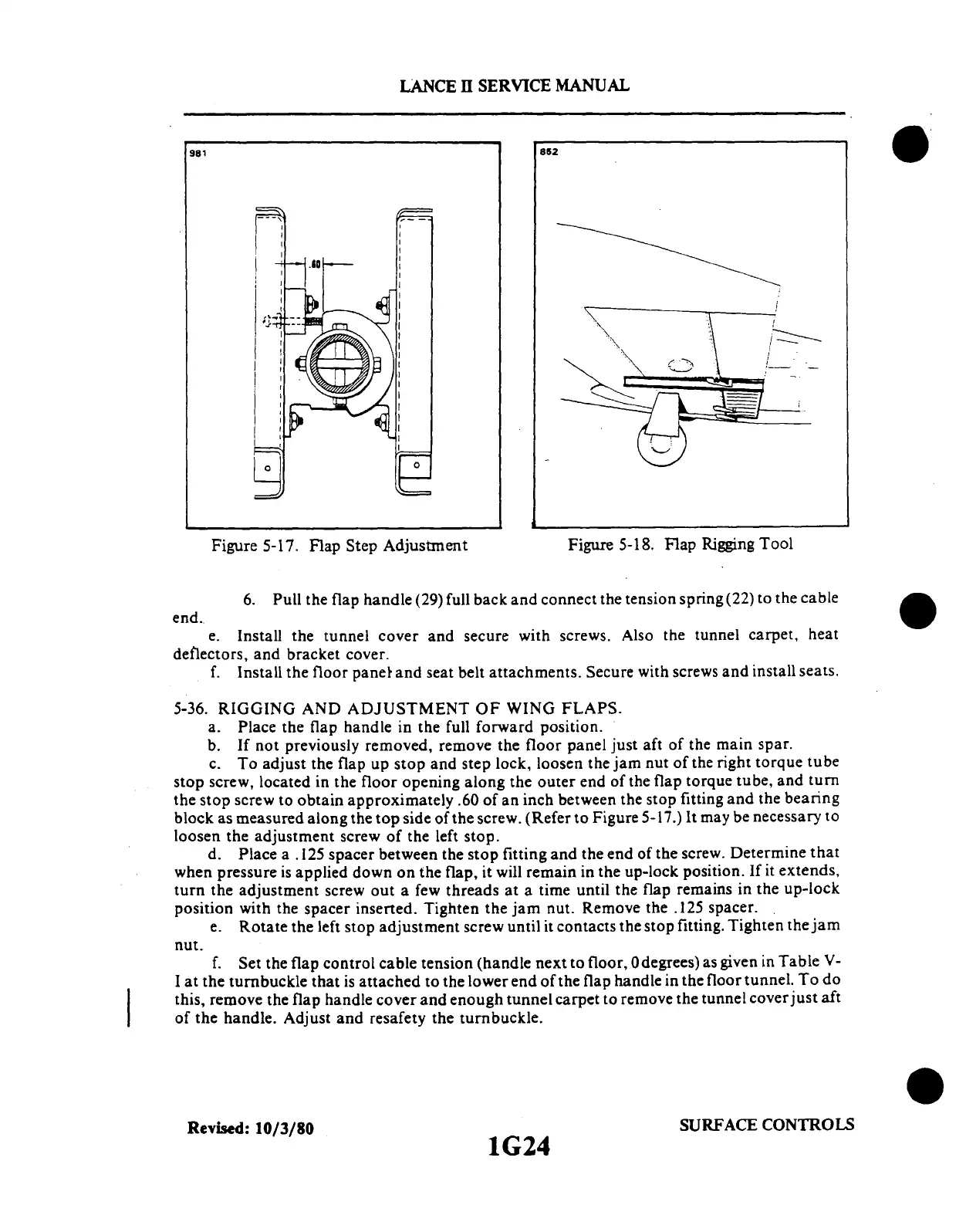

LANCE
II
SERVICE
MANUAL
981
852
Figure
5-17.
Flap Step
Adjustment
Figure
5-18.
Flap
Rigging
Tool
6.
Pull
the
flap
handle
(29)
full
back
and
connect
the
tension
spring
(22)
to
the
cable
end.
e.
Install
the
tunnel
cover
and
secure
with
screws.
Also
the
tunnel
carpet,
heat
deflectors,
and
bracket
cover.
f.
Install
the
floor
panel
and
seat
belt
attachments.
Secure
with
screws
and
install seats.
5-36.
RIGGING
AND
ADJUSTMENT
OF
WING
FLAPS.
a.
Place
the
flap
handle
in
the
full
forward
position.
b.
If
not
previously
removed,
remove
the
floor
panel
just
aft
of
the
main
spar.
c.
To
adjust
the
flap
up
stop
and step
lock,
loosen
the
jam
nut
of
the
right
torque
tube
stop
screw,
located
in
the
floor
opening
along
the
outer
end
of
the
flap
torque
tube,
and
turn
the
stop
screw
to
obtain
approximately
.60
of
an inch
between
the
stop
fitting
and
the
bearing
block
as
measured
along
the
top
side
of
the
screw.
(Refer
to
Figure
5-17.)
It
may
be
necessary
to
loosen
the
adjustment
screw
of
the
left
stop.
d.
Place
a
.125
spacer
between
the
stop fitting
and
the
end
of
the
screw.
Determine
that
when
pressure
is
applied
down
on
the flap,
it
will
remain
in
the
up-lock
position.
If
it
extends,
turn
the
adjustment
screw
out
a
few
threads
at
a
time
until
the
flap
remains
in
the
up-lock
position
with
the
spacer
inserted.
Tighten
the
jam
nut.
Remove
the
.125
spacer.
e.
Rotate
the
left
stop
adjustment
screw
until
it
contacts
the
stop
fitting.
Tighten
the
jam
nut.
f.
Set
the
flap
control
cable
tension
(handle next
to
floor,
0
degrees)
as
given
in
Table
V-
I
at
the
turnbuckle
that
is
attached
to
the
lower
end
of
the
flap
handle
in
the floor
tunnel.
To
do
this,
remove
the
flap
handle
cover
and
enough
tunnel
carpet
to remove
the
tunnel
coverjust
aft
of
the
handle.
Adjust
and
resafety
the
turnbuckle.
Revised:
10/3/80
SURFACE
CONTROLS
1G24
