Piper Lance II - Page 185

LANCE
II
SERVICE
MANUAL
NOTES
1. ADJUST
CONNECTOR
ON
EDGE
OF
CONTROL
CABLE
TO OBTAIN
.65
IN
MAXIMUM
EXPOSURE
ON
DIAPHRAGM
SHAFT
AS SHOWN
IN FIGURE
6-6.
VIEW
B-B.
2.
A
SPECIAL
RISTRICTOR
NIPPLE
(2)
IS
INSTALLED
ON
THE MAIN
GEAR
RETRACTION
LINE.
DO
NOT
MISTAKE
THIS
FOR
A STANDARD
AN
NIPPLE.
1. ACTUATING
CYLINDER,
RIGHT
2. NIPPLE,
RESTRICTOR
(SEE
NOTE)
3.
GEAR
BACK-UP
EXTENDER
ACTUATOR
4. BACK-UP
EXTENDER
MAST
S.
ACTUATING
CYLINDER,
LEFT
6.
LEVER
EMERGENCY
EXTENDER
7. ACTUATING
CYLINDER,
NOSE
8. PRESSURE
SWITCH
9. PUMP/RESERVOIR

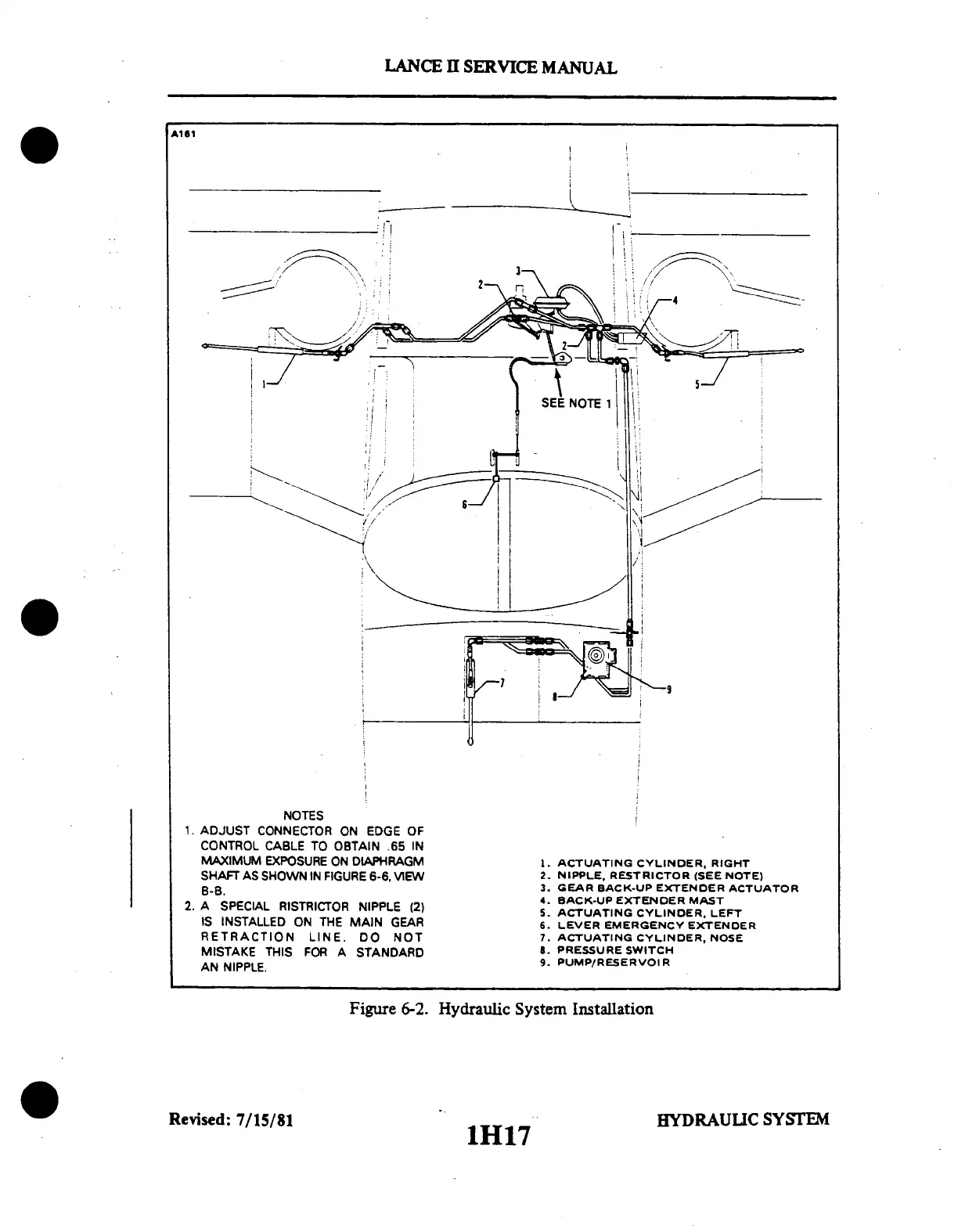

Figure
6-2.
Hydraulic
System
Installation
Revised:
7/15/81
HYDRAULIC
SYSTEM
1H17
