1. HEAD,
MOTOR
2. SPRING,
BRUSH
3. BRUSH
4. BOLT,
THROUGH
5.
O-RING (MS2775-012)
6. WIRE
LEAD
7.
BALL,
THRUST
8. ARMATURE
9.
FRAME,
MOTOR
10. SLEEVE
11.
WASHER,
THRUST
12.
SCREW,
VENT
AND
FILLER
13. RESERVOIR
14. SEAL
15.
CASE,
VALVE
AND
GEAR
16. BASE,
PUMP
17.
BOLT
18. SCREW (8)
19. BOLT
20.
BUSHING
21.
WASHER
22. GROMMET
23.
WASHER
24.
BUSHING
25. SHELF
26.
NUT
19
LANCE
2
4
7
9
10
11
12
13
HIGH
PRESSURE
THERMAL
RELIEF
PRESSURE
RELIEF
15
5
1

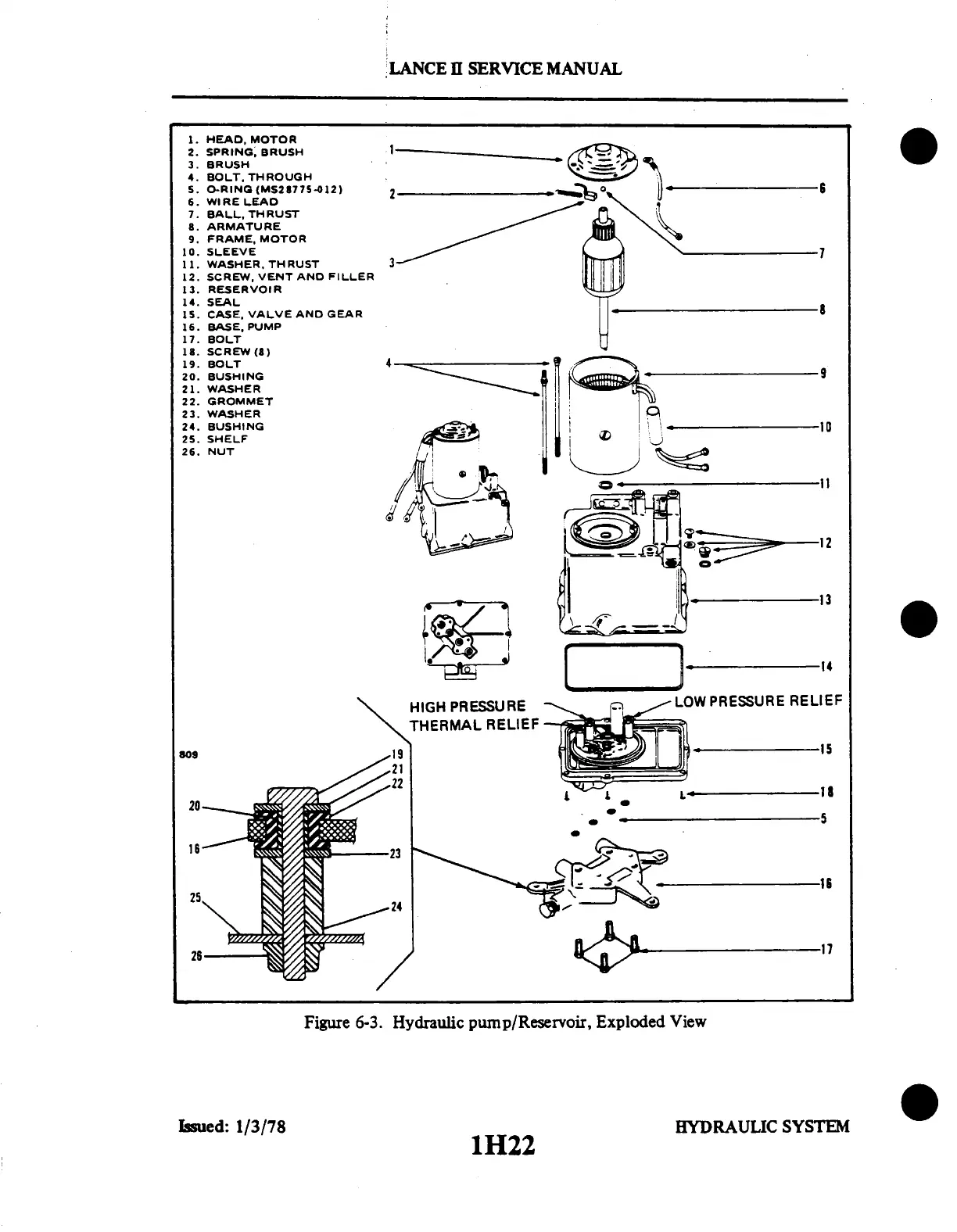

Figure
6-3.
Hydraulic
pump/Reservoir,
Exploded
View
Issued: 1/3/78 1H22
1H22
HYDRAULIC
SYSTEM
