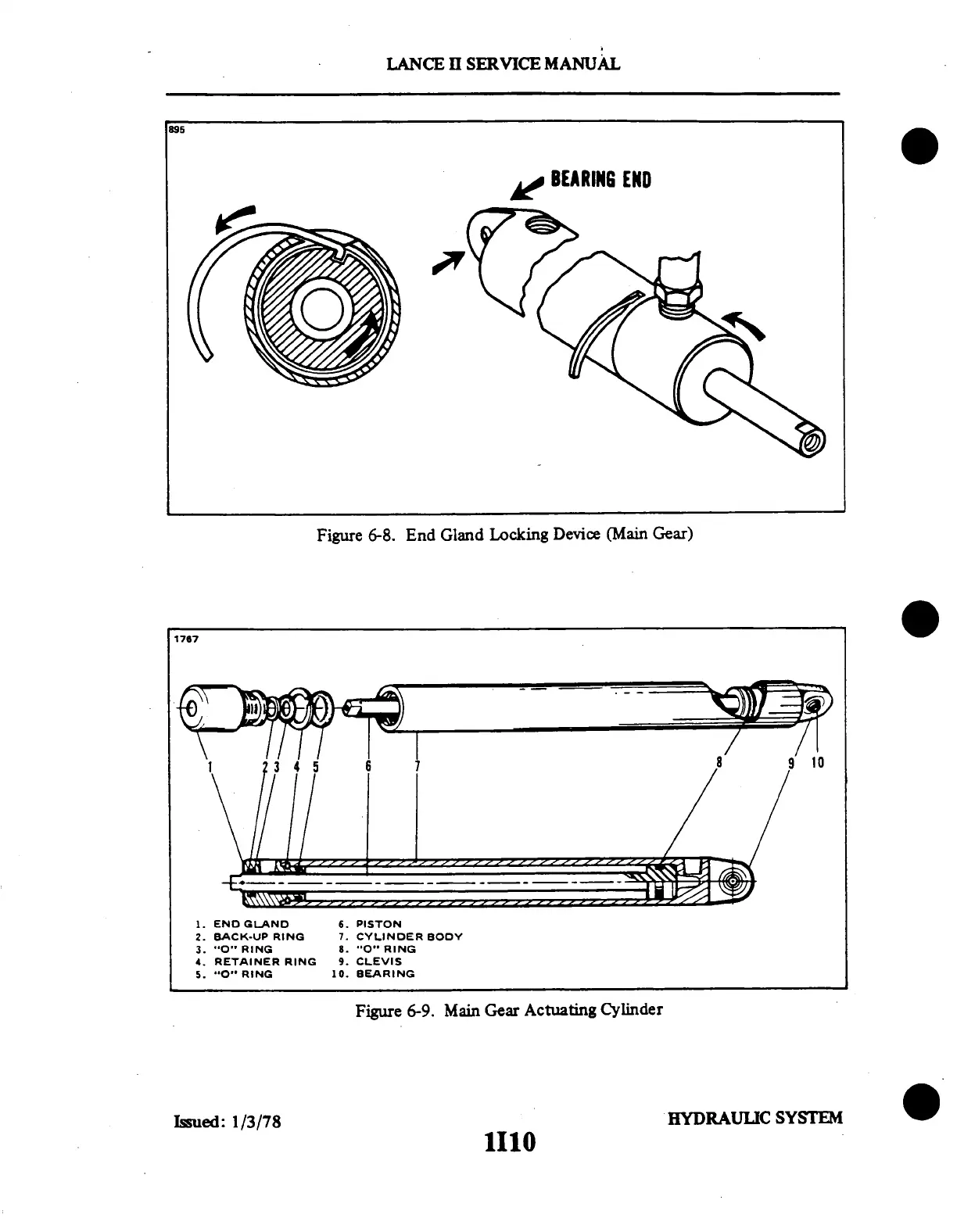

LANCE
II SERVICE
MANUAL
895
BEARING
END
Figure
6-8.
End Gland
Locking
Device
(Main
Gear)
1767
10
1. END GLAND 6. PISTON
2. BACK-UP RING 7. CYLINDER BODY
3.
"O" RING
8. "O" RING
4. RETAINER RING 9. CLEVIS
5. "O" RING
10. BEARING
Figure
6-9.
Main Gear
Actuating
Cylinder
Issued: 1/3/78
HYDRAULIC
SYSTEM
1110

Piper Lance II Specifications

General

Manufacturer	Piper Aircraft
Max Takeoff Weight	3, 600 lb (1, 633 kg)
Crew	1
Horsepower	300 hp
Seats	6
Length	27 ft 7 in (8.41 m)
Capacity	5 passengers
