LANCE II SERVICE MANUAL
24. TIRE
25. HOUSING, STRUT
26. SHIMMY DAMPENER
27. BOLT, WASHER, NUT AND
COTTER PIN
28. BRACKET, SHIMMY
DAMPENER
29. BOLT, WASHER, NUT AND
COTTER PIN
30. JAM NUT
31. ROD END BEARING
32. DRAG LINK, LOWER
33. BOLT, WASHER, NUT AND
COTTER PIN
34. BOLT, WASHER, NUT AND
COTTER PIN
35.
DRAG LINK.
UPPER
36. BOLT AND NUT ASSEMBLY
37. BOLT, WASHER AND NUT
38. JAM NUT
39. SPRING, DOWNLOCK
40. HOOK, DOWNLOCK
41.
ROD,
ACTUATOR
42. CYLINDER, HYDRAULIC
43. ARM, SPRING
44. ENGINE MOUNT
45. ARM, SPRING
46.
SPRING

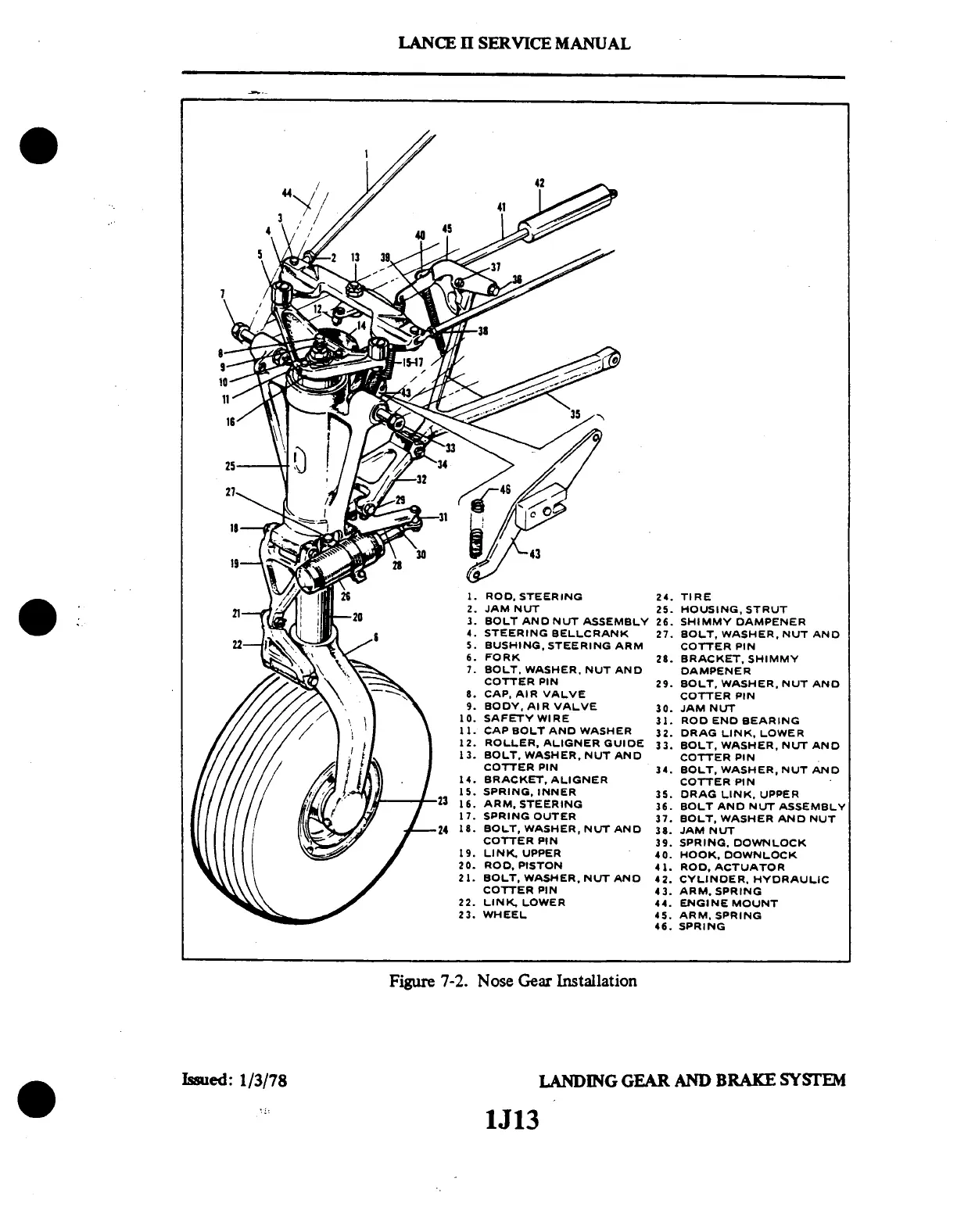

Figure
7-2. Nose Gear
Installation
Issued:
1/3/78
LANDING
GEAR AND
BRAKE SYSTEM
1J13

Piper Lance II Specifications

General

Manufacturer	Piper Aircraft
Max Takeoff Weight	3, 600 lb (1, 633 kg)
Crew	1
Horsepower	300 hp
Seats	6
Length	27 ft 7 in (8.41 m)
Capacity	5 passengers
