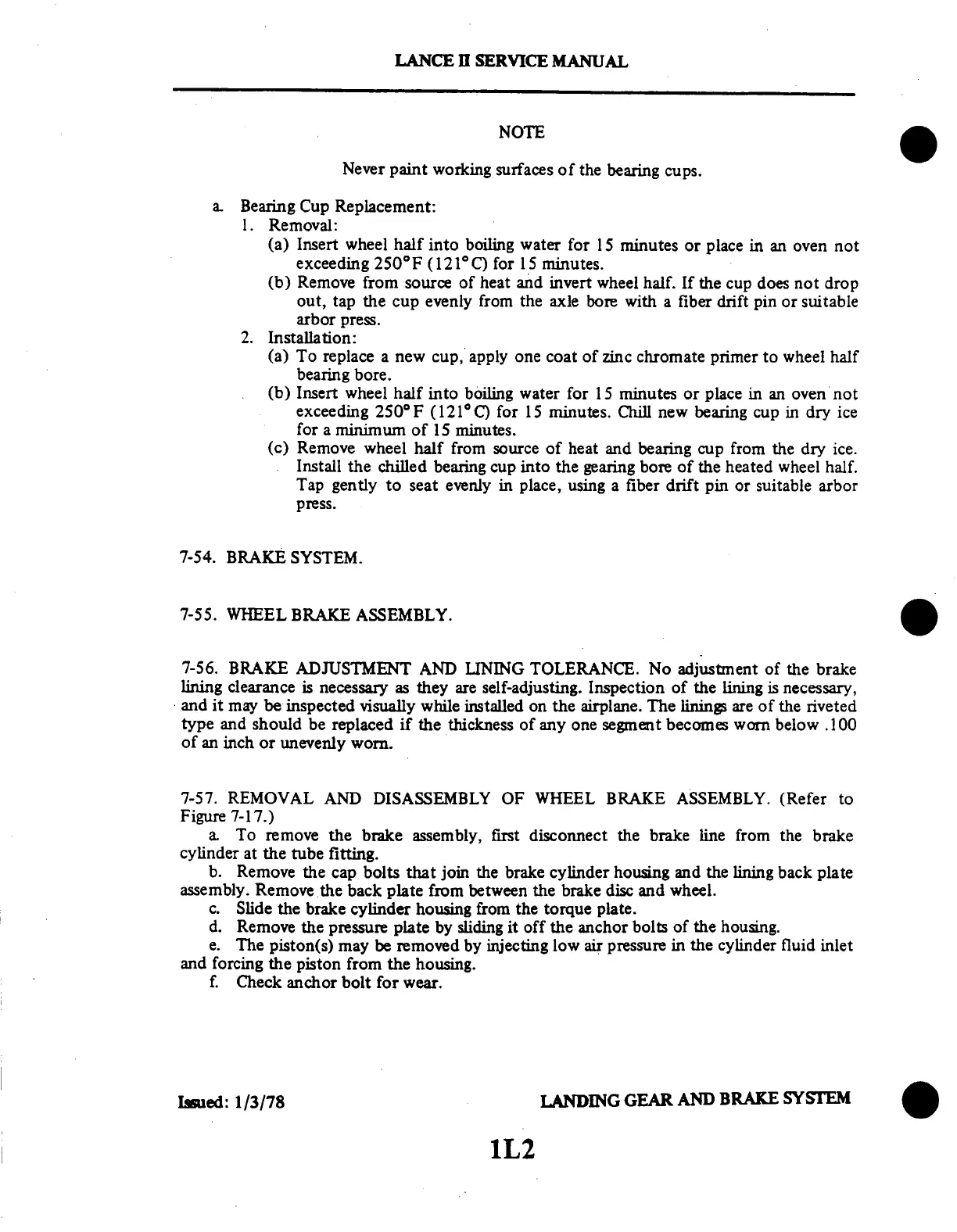

LANCE
I
SERVICE
MANUAL
NOTE
Never
paint
working
surfaces
of
the
bearing
cups.
a.
Bearing
Cup
Replacement:
1.
Removal:
(a)
Insert
wheel
half
into
boiling
water
for
15
minutes
or
place
in
an
oven
not
exceeding
250°F
(121°C)
for
15
minutes.
(b)
Remove
from
source
of
heat
and
invert
wheel
half.
If
the
cup
does
not
drop
out,
tap
the
cup
evenly
from
the
axle
bore
with
a
fiber
drift
pin
or
suitable
arbor
press.
2.
Installation:
(a)
To
replace
a
new
cup,
apply
one
coat
of
zinc
chromate
primer
to
wheel
half
bearing
bore.
(b)
Insert
wheel
half
into
boiling
water
for
15
minutes
or
place
in
an
oven
not
exceeding
250oF
(121°C)
for
15
minutes.
Chill
new
bearing
cup
in
dry
ice
for
a
minimum
of
15
minutes.
(c)
Remove
wheel
half
from
source
of
heat
and
bearing
cup
from
the
dry
ice.
Install
the
chilled
bearing
cup
into
the
gearing
bore
of
the
heated
wheel
half.
Tap
gently
to
seat
evenly
in
place,
using
a
fiber
drift
pin
or
suitable
arbor
press.
7-54.
BRAKE
SYSTEM.
7-55.
WHEEL
BRAKE
ASSEMBLY.
7-56.
BRAKE
ADJUSTMENT
AND
LINING
TOLERANCE.
No
adjustment
of
the
brake
lining
clearance
is
necessary
as
they
are
self-adjusting.
Inspection
of
the
lining
is
necessary,
and
it
may
be
inspected
visually
while
installed
on
the
airplane.
The
linings
are
of
the
riveted
type
and
should
be
replaced
if
the
thickness
of
any
one
segment
becomes
worn
below
.100
of
an
inch
or
unevenly
worn.
7-57.
REMOVAL
AND
DISASSEMBLY
OF
WHEEL
BRAKE
ASSEMBLY.
(Refer
to
Figure
7-17.)
a.
To
remove
the
brake
assembly,
first
disconnect
the
brake
line
from
the
brake
cylinder
at
the
tube
fitting.
b.
Remove
the
cap
bolts
that
join
the
brake
cylinder
housing
and
the
lining
back
plate
assembly.
Remove
the
back
plate
from
between
the
brake
disc
and
wheel.
c.
Slide
the
brake
cylinder
housing
from
the
torque
plate.
d.
Remove
the
pressure
plate
by
sliding
it
off
the
anchor
bolts
of
the
housing.
e.
The
piston(s)
may
be
removed
by
injecting
low
air
pressure
in
the
cylinder
fluid
inlet
and
forcing
the
piston
from
the
housing.
f.
Check
anchor
bolt
for
wear.
Issued:
1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1L2
265
267
