CYLINDER
BODY
LANCE
II SERVICE
MANUAL
g.
Remove
anchor
bolt
by the
following
procedure:
1.
Position
cylinder
assembly
on
a holding
fixture.
(Refer
to
Figure
7-15.)
2.
Use
a
suitable
arbor
press
to
remove
the
anchor
bolt
from
the
cylinder
body.
h.
Install
anchor
bolt
by
the
following
procedure:
1.
Support
anchor
bolt
in
a hold
ing
fixture.
(Refer
to
Figure
7-16,
Step
A.)
2.
Align
cylinder
body
over
anchor
bolt.
(Refer
to
Figure
7-16,
Step
B.)
3.
Use
a
suitable
arbor
press
and
apply
pressure
on
the
spot
face
directly
over
the
anchor
bolt
hole.
(Refer
to
Figure
7-16,
Step
C.)
923
PRESS
HOLDING
FIXTURE

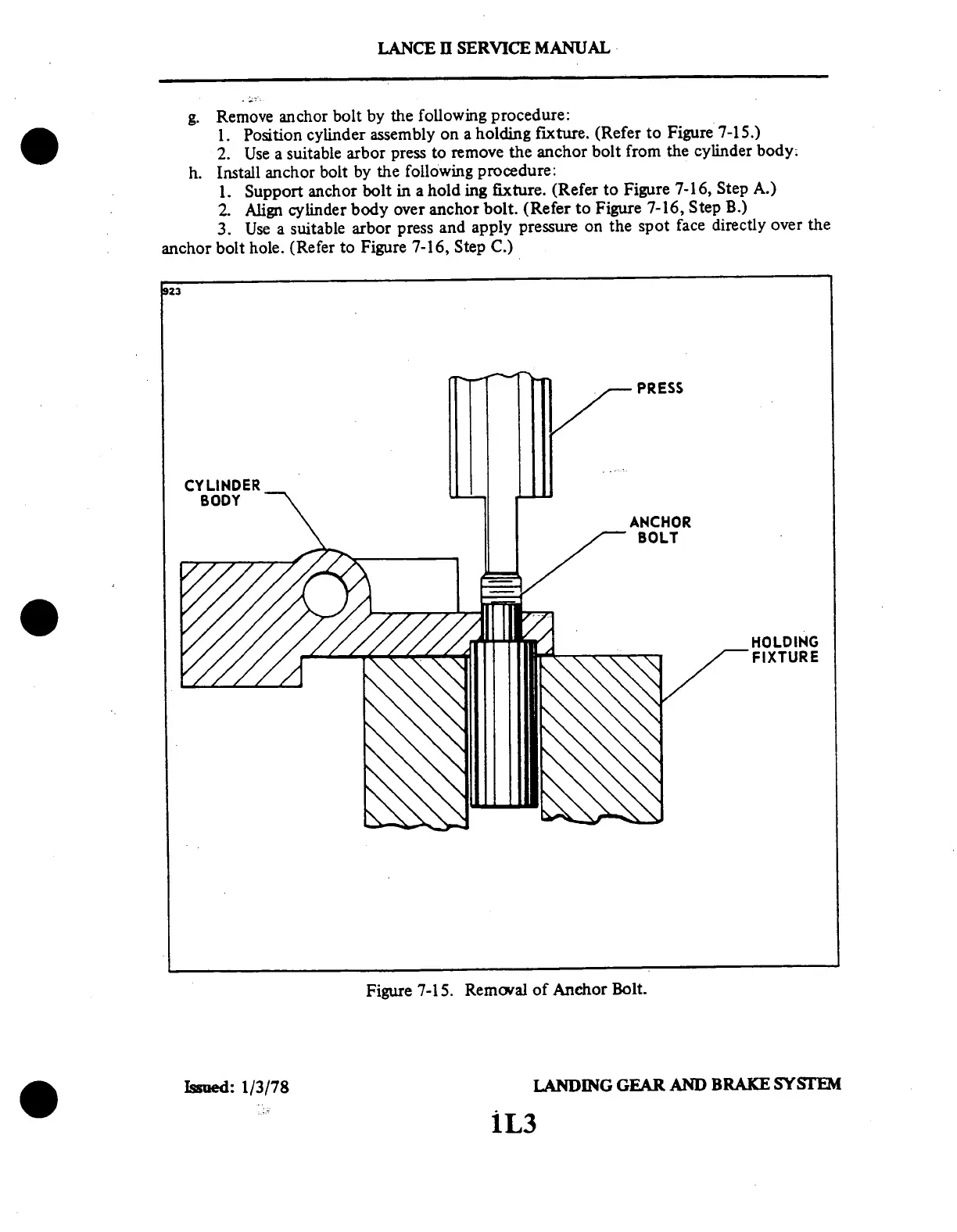

Figure
7-15.
Removal
of
Anchor
Bolt.
Issued: 1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1L3
