LANCE
II SERVICE
MANUAL
1. CLOCK
2. ADF INDICATOR
3. AIRSPEED
INDICATOR
4.
TURN
(AND BANK)
CO-ORDINATOR
5.
ATTITUDE
GYRO
6. GEAR
UNSAFE
LIGHT
7.
DIRECTIONAL
GYRO
8. ALTIMETER
9.
VERTICAL
SPEED
INDICATOR
10.
ANNUNCIATOR
PANEL
11.
GS/LOC/VOR
INDICATOR
12.
VOR
INDICATOR
13. COMPASS
14.
AUDIO
SELECTOR
PANEL
IS. COM
I AND
COM 2
16. TRANSPONDER
17. RNAV
18.
ADF
RADIO
19.
NAV I
RADIO
20.
DME
RADIO
21.
HEAT,
DEFROST,
A/C AND
VENT
BLOWER
CONTROLS
22. CIGAR
LIGHTER
23.
MASTER
AND
ACCESSORY
SWITCH
PANEL
21
22
44
24.
AUTOPILOT
25.
ENGINE
INSTRUMENT
CLUSTER
26. VOR/LOC
COUPLER
27.
NAV SELECTOR
SWITCH
28.
MAGNETO
AND
STARTER
SWITCH
29.
PITCH
TRIM
SWITCH
30.
MANIFOLD
PRESSURE
AND
FUEL
FLOW
GAUGE
31. FUEL PRESSURE
AND
QUANTITY
GAUGES
32. TACHOMETER
33. GEAR
SELECTOR
34.
"AUTO-EXT
OFF"
LIGHT
35.
AIR CONDITION
DOOR LIGHT
36. THROTTLE
QUADRANT
37. MICROPHONE
BRACKET
38. MIXTURE
CONTROL
LOCK
39.
FRICTION
LOCK
40. ALTERNATE
AIR
CONTROL
41. NAV
AND
PANEL LIGHT
SWITCHES
42.
EGT
GAUGE
43. GYRO
SUCTION GAUGE
44. CIRCUIT
BREAKER
PANEL

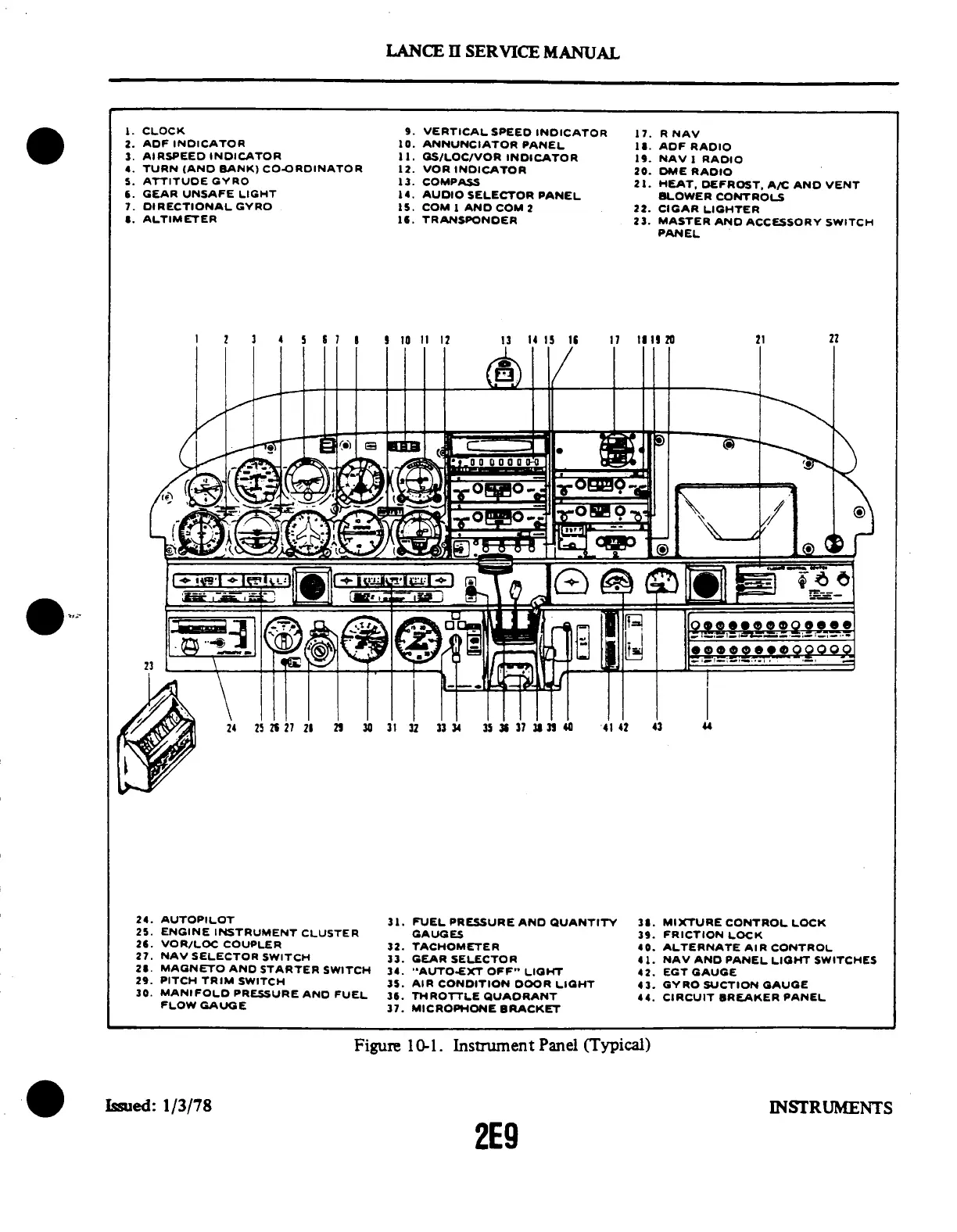

Figure
10-1.
Instrument
Panel
(Typical)
Issued:
1/3/78
INSTRUMENTS
2E9
