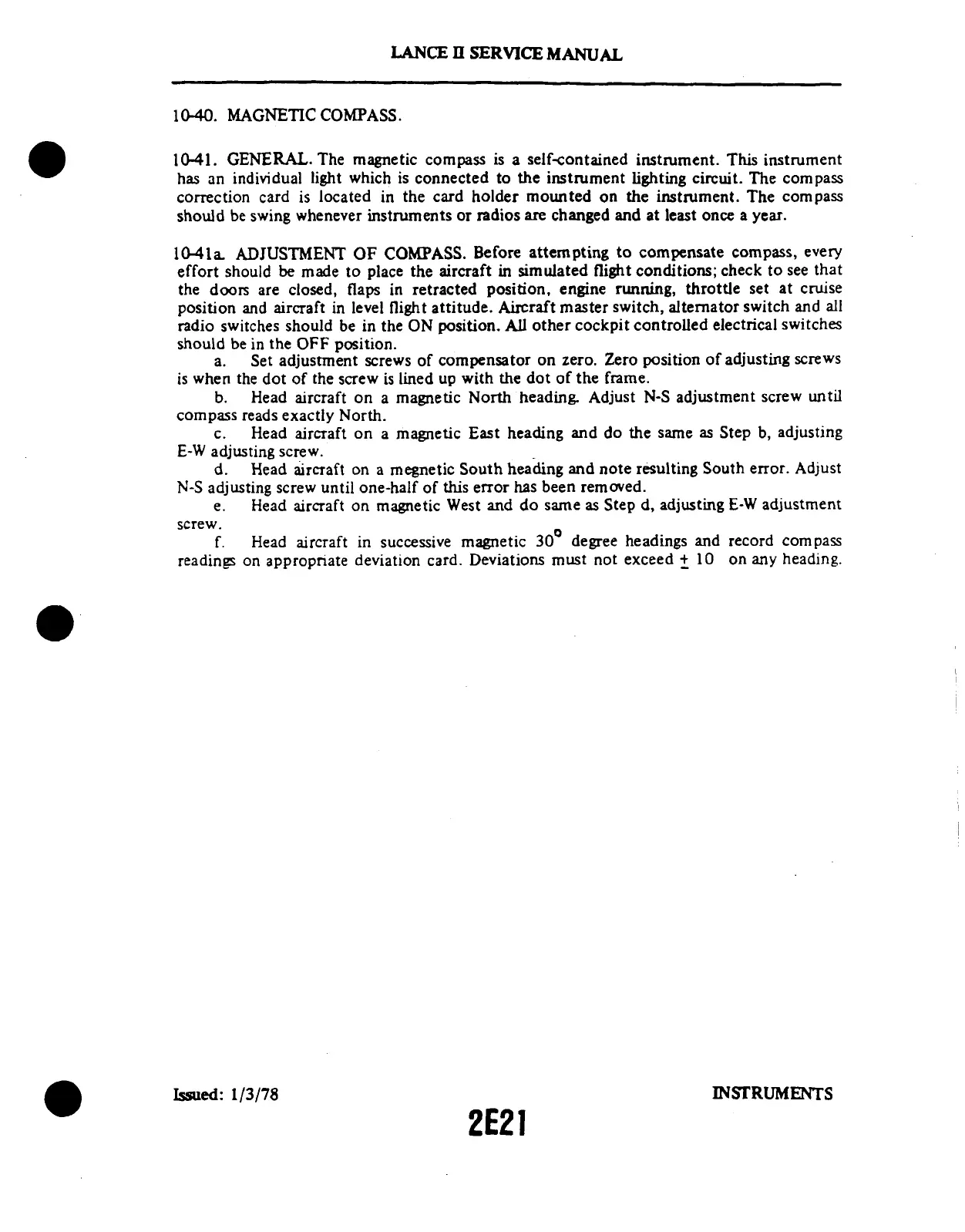

LANCE
II
SERVICE
MANUAL
1040.
MAGNETIC
COMPASS.
10-41.
GENERAL.
The
magnetic
compass
is
a
self-contained
instrument.
This
instrument
has
an
individual
light
which
is
connected
to
the
instrument
lighting
circuit.
The
compass
correction
card
is
located
in
the
card
holder
mounted
on
the
instrument.
The
compass
should
be
swing
whenever
instruments
or
radios
are
changed
and
at
least
once
a
year.
10-41a.
ADJUSTMENT
OF
COMPASS.
Before
attempting
to
compensate
compass,
every
effort
should
be
made
to
place
the
aircraft
in
simulated
flight
conditions;
check
to
see
that
the
doors
are
closed,
flaps
in
retracted
position,
engine
running,
throttle
set
at
cruise
position
and
aircraft
in
level
flight
attitude.
Aircraft
master
switch,
alternator
switch
and
all
radio
switches
should
be
in
the
ON
position.
All
other
cockpit
controlled
electrical
switches
should
be
in
the
OFF
position.
a.
Set
adjustment
screws
of
compensator
on
zero.
Zero
position
of
adjusting
screws
is
when
the
dot
of
the
screw
is
lined
up
with
the
dot
of
the
frame.
b.
Head
aircraft
on
a
magnetic
North
heading.
Adjust
N-S
adjustment
screw
until
compass
reads
exactly
North.
c.
Head
aircraft
on
a
magnetic
East
heading
and
do
the
same
as
Step
b,
adjusting
E-W
adjusting
screw.
d.
Head
aircraft
on
a
megnetic
South
heading
and
note
resulting
South
error.
Adjust
N-S
adjusting
screw
until
one-half
of
this
error
has
been
removed.
e.
Head
aircraft
on
magnetic
West
and
do
same
as
Step
d,
adjusting
E-W
adjustment
screw.
f.
Head
aircraft
in
successive
magnetic
30
°
degree
headings
and
record
compass
readings
on
appropriate
deviation
card.
Deviations
must
not
exceed
+
10
on
any
heading.
Issued:
1/3/78
INSTRUMENTS
2E21
404
406
