Piper Lance II User Manual

BEARING
LANCE
II
SERVICE
MANUAL
BEARING
/
SP-3381
C-3925
C-3925

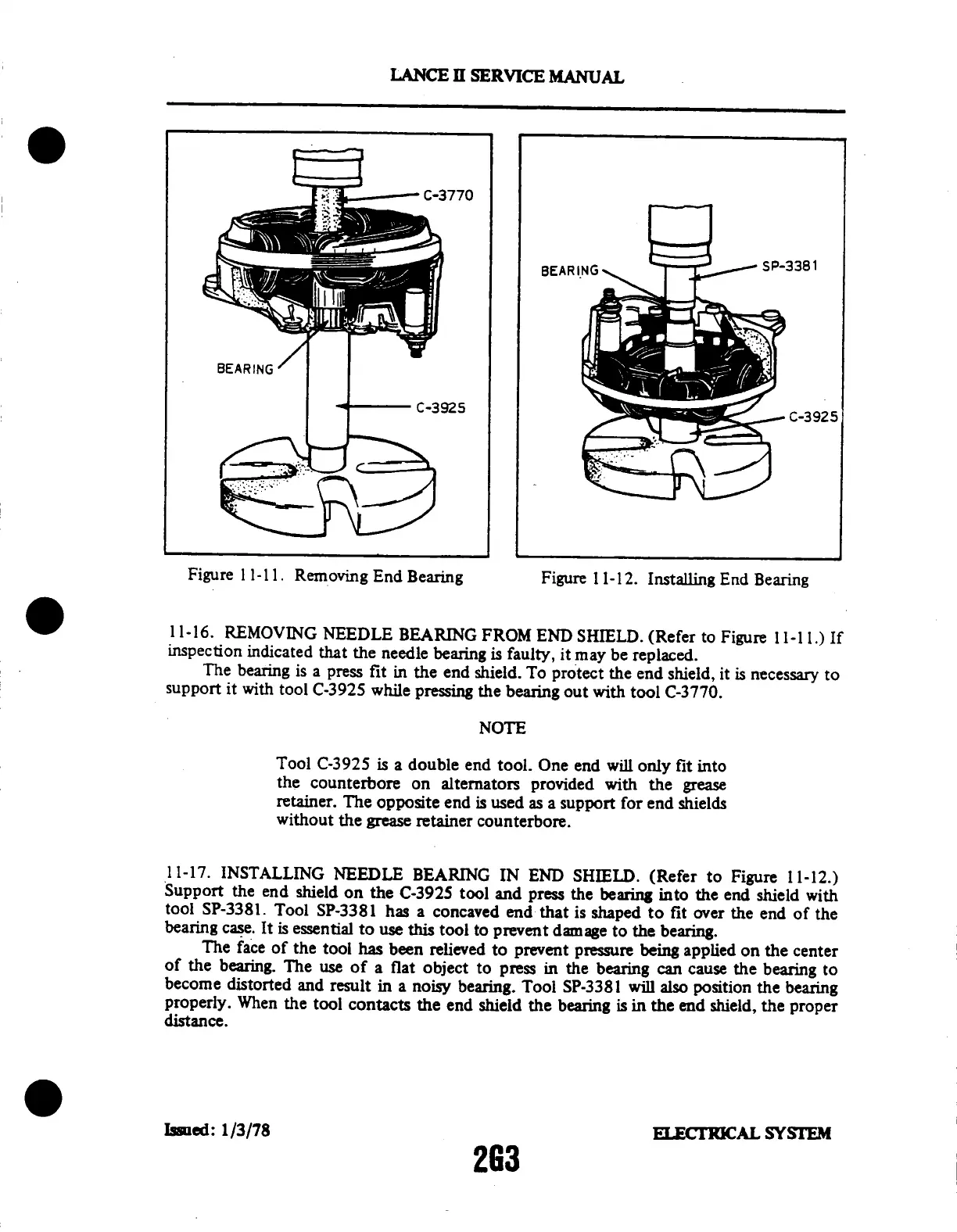

Figure
1
1-11.
Removing
End
Bearing
Figure
1 1-12.
Installing
End
Bearing
11-16.
REMOVING
NEEDLE
BEARING
FROM
END
SHIELD.
(Refer
to
Figure
11-1
1.)
If
inspection
indicated
that
the
needle
bearing
is
faulty,
it
may
be
replaced.
The
bearing
is a
press
fit
in
the
end
shield.
To
protect
the
end
shield,
it is
necessary
to
support
it with
tool
C-3925
while
pressing
the
bearing
out
with
tool
C-3770.
NOTE
Tool
C-3925
is
a double
end
tool.
One
end
will
only
fit
into
the
counterbore
on
alternators
provided
with
the
grease
retainer.
The
opposite
end
is used
as
a support
for
end
shields
without
the
grease
retainer
counterbore.
11-17.
INSTALLING
NEEDLE
BEARING
IN
END
SHIELD.
(Refer
to
Figure
11-12.)
Support
the
end
shield
on
the
C-3925
tool
and
press
the
bearing
into
the
end
shield
with
tool
SP-3381.
Tool
SP-3381
has
a
concaved
end
that
is
shaped
to
fit
over
the
end
of
the
bearing
case.
It
is
essential
to
use
this
tool
to
prevent
damage
to
the
bearing.
The
face
of
the
tool
has
been
relieved
to
prevent
pressure
being
applied
on
the
center
of
the
bearing.
The
use
of
a flat
object
to
press
in
the
bearing
can
cause
the
bearing
to
become
distorted
and
result
in a
noisy
bearing.
Tool
SP-3381
will
also
position
the
bearing
properly.
When
the
tool
contacts
the
end
shield
the
bearing
is
in
the
end
shield,
the
proper
distance.
Issued:
1/3/78
ELECTRICAL
SYSTEM
263
