Piper Lance II User Manual

LANCE
II SERVICE
MANUAL
1. HEAT SHROUD
2. DEFROSTER
VALVE
3. DEFROSTER OUTLET
4. HEAT
AND DEFROSTER
AIR CONTROLS
5.
OVERHEAD
FRESH AIR DUCT
6. FRESH
AIR OUTLET
7.
OVERHEAD
VENT BLOWER
8. FRESH AIR INLET
9. AIR BOX
10. CABIN
HEAT
OUTLET
11. CABIN AIR EXHAUST
12. DRAIN TUBE

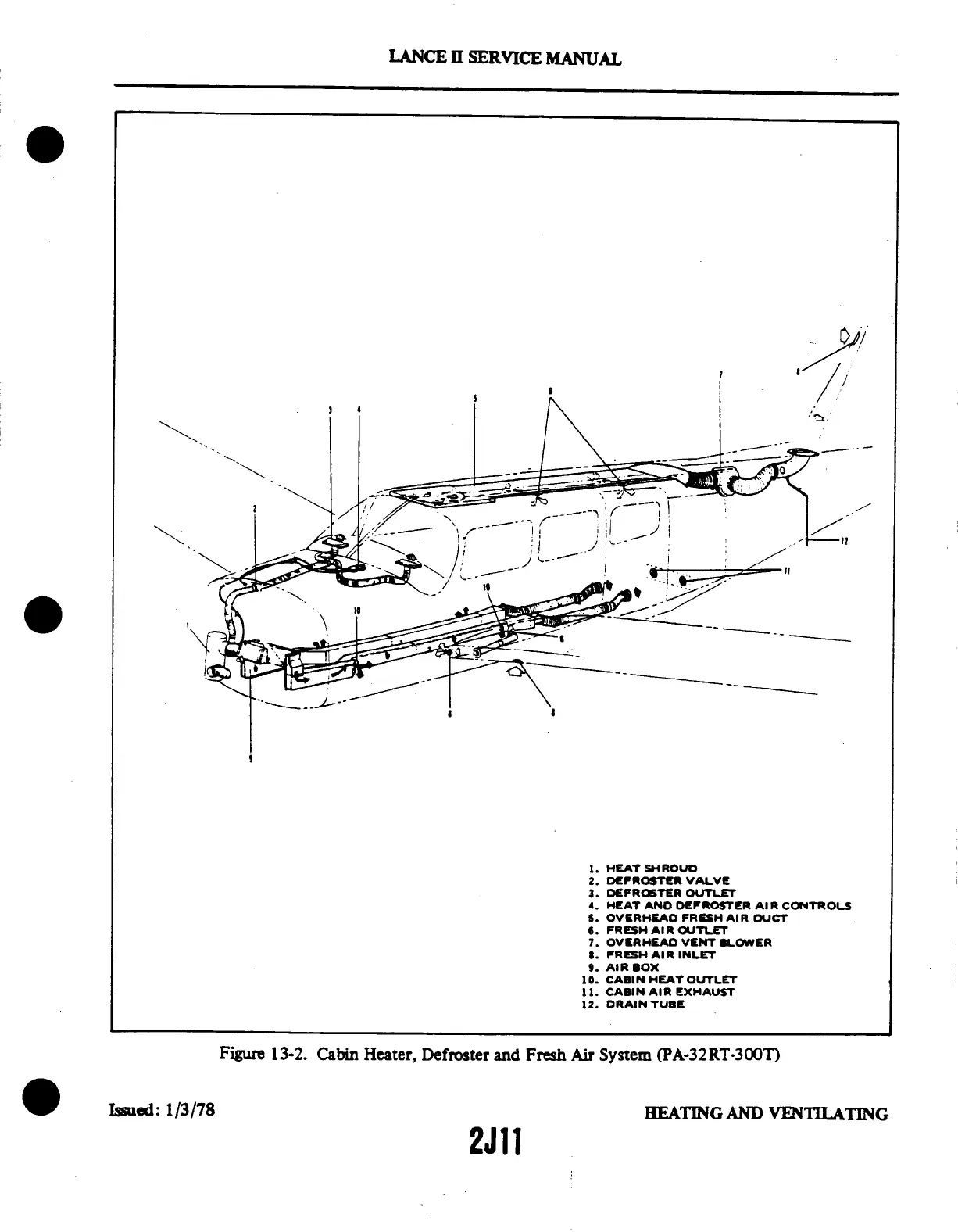

Figure 13-2.
Cabin Heater,
Defroster and Fresh
Air System
(PA-32RT-300T)
Issued:
1/3/78
HEATING
AND
VENTILATING
2J11
