Piper Lance II - Page 72

LANCE
II SERVICE
MANUAL
COMPONENT
1. DOOR
HINGES
2. DOOR LATCH
MECHANISMS
3. DOOR
SEALS
LUBRICANT
MIL-L-7870
MIL-L-7870
FLUOROCARBON
RELEASE
AGENT
DRY
LUBRICANT
MS-122
AERO LUBRIPLATE
OR
MAG-1.
FISKE
BROS.
RE-
FINING
CO.
MIL-L-7870
FREQUENCY
100 HRS
500
HRS
50 HRS
100 HRS
100
HRS
4.
SEAT
TRACK
ROLLERS,
STOP
PINS
AND
REAR
SEAT
LEG
RETAINER
(CLIP
AND
CAM)
5.
SEAT
LATCH
STOP
PIVOT
POINT
(COPILOT)
878
SPECIAL
INSTRUCTIONS
Apply fluorocarbon
dry
lubricant to
door seals at
least once
a
month to
prevent
the seal
from sticking,
and improve
sealing
characterstics
STOP
SHOULD
BE LUBRICATED
AND
FREE
- TO
SWIVEL
WITHOUT
EXCESSIVE
PLAY

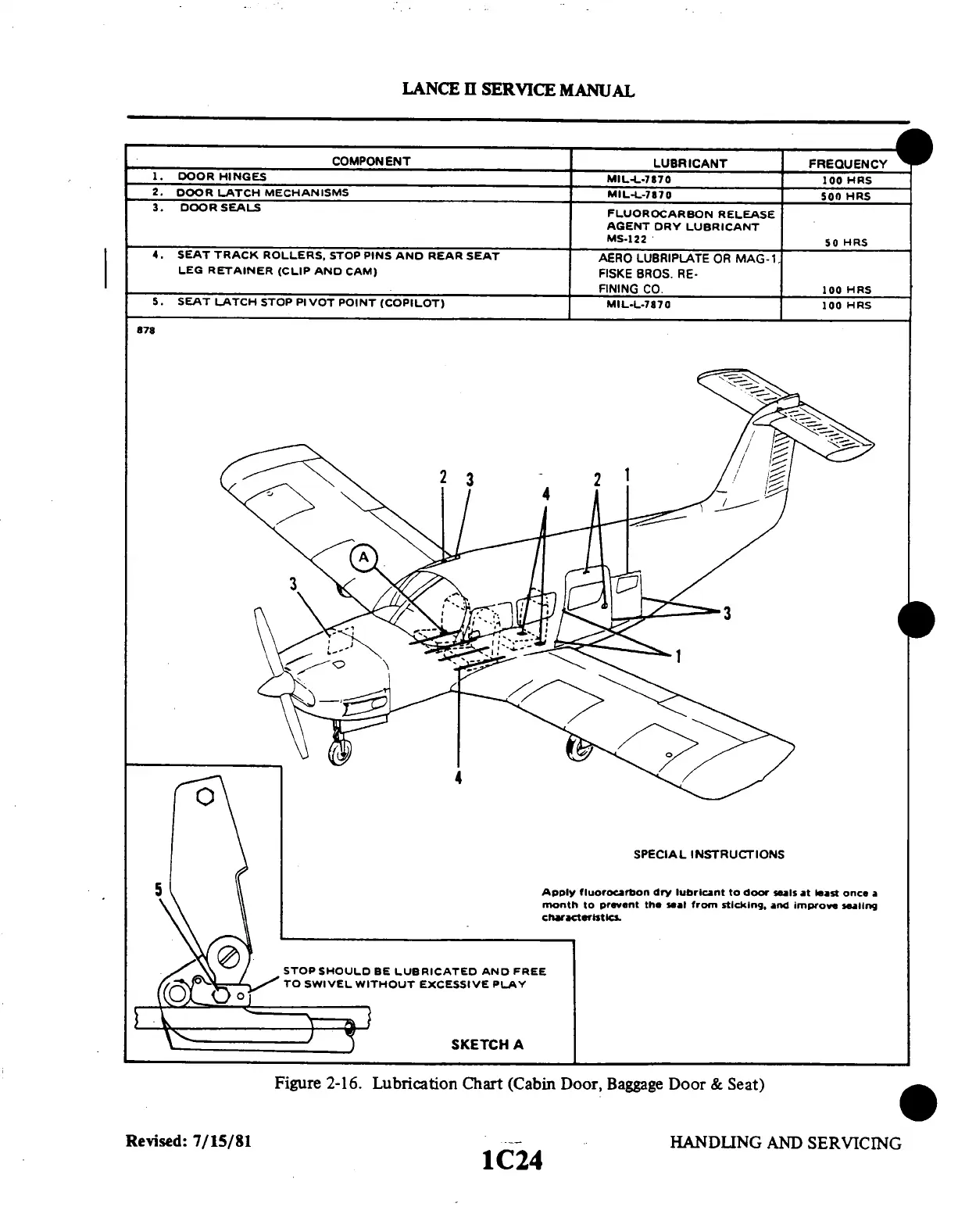

SKETCH A
Figure
2-16. Lubrication
Chart (Cabin
Door,
Baggage
Door &
Seat)
Revised:
7/15/81
1C24
HANDLING
AND
SERVICING
