Setting the Separators to Account for Normal Wear
The blue hex nut has six numbered
settings. When the black separator
assembly tips wear out you may
need to turn the nut to the next
setting. This will extend the life of
the feed roller.
1. Slide the blue hex nut to the
left to unlock it.
2. Turn the blue hex nut to a new
numbered position.
3. Slide the blue hex nut back
to the right to lock it.
4. When all surfaces are worn it
is time to replace the assembly.
Call service.

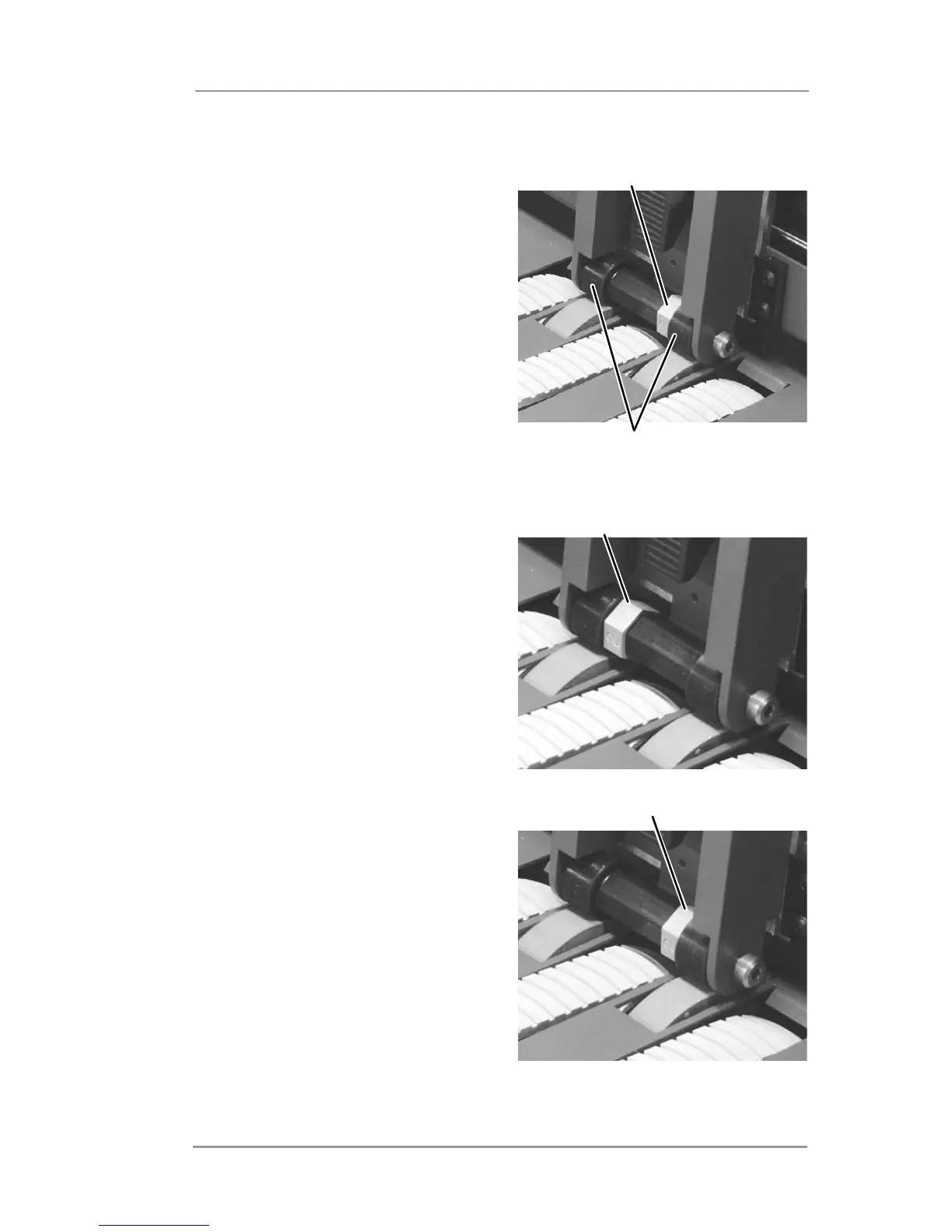

Separator Tips
Blue Hex Nut
Hex nut in unlocked position.
Hex nut returned to locked
position.
