Noise and Sample & Hold
Noise
The transistor core analog noise source is pitched somewhere between pure white and pink
noise. Perfect for percussion or adding a bit of edge to a sound. The output is around +/- 5v. The
[NOISE JACK] is normalized to the Sample and Hold [SAMPLE JACK].
Sample and Hold
The Sample & Hold circuit samples the voltage patched to the [SAMPLE JACK] and outputs that
voltage until a new sample voltage is taken. A sample is taken when the [HOLD(CLK) JACK]
receives a positive gate or trigger. The sample source can be audio or CV. and HOLD that value
when a gate input is high. The [HOLD(CLK) JACK] is normaled to the clock.

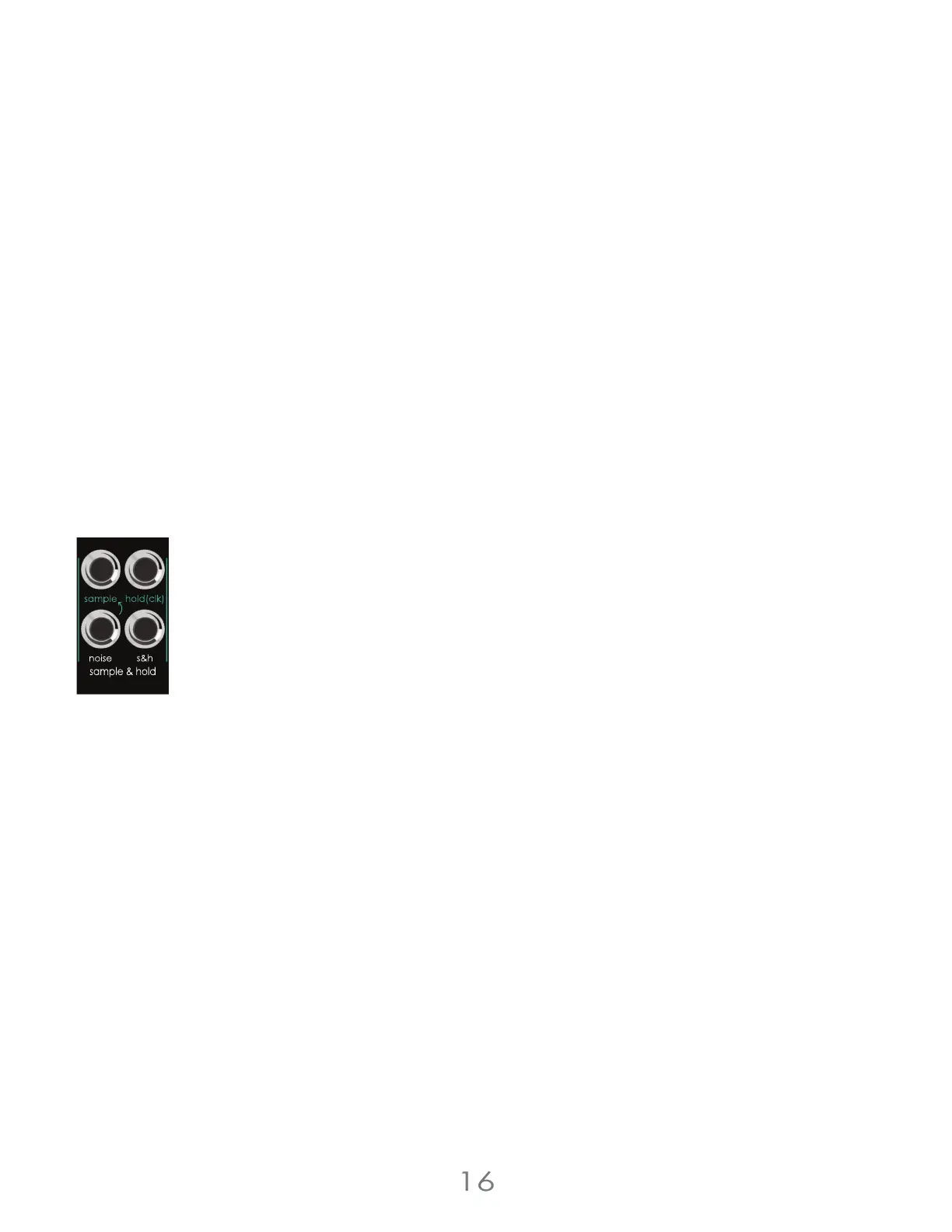

Sample & Hold Input Jacks:
[SAMPLE JACK] Sample input jack.
[HOLD(CLK) JACK] Hold input jack.
Sample & Hold Output Jacks:
[NOISE JACK] White noise output jack.
[S&H JACK] Sample and Hold output jack.
