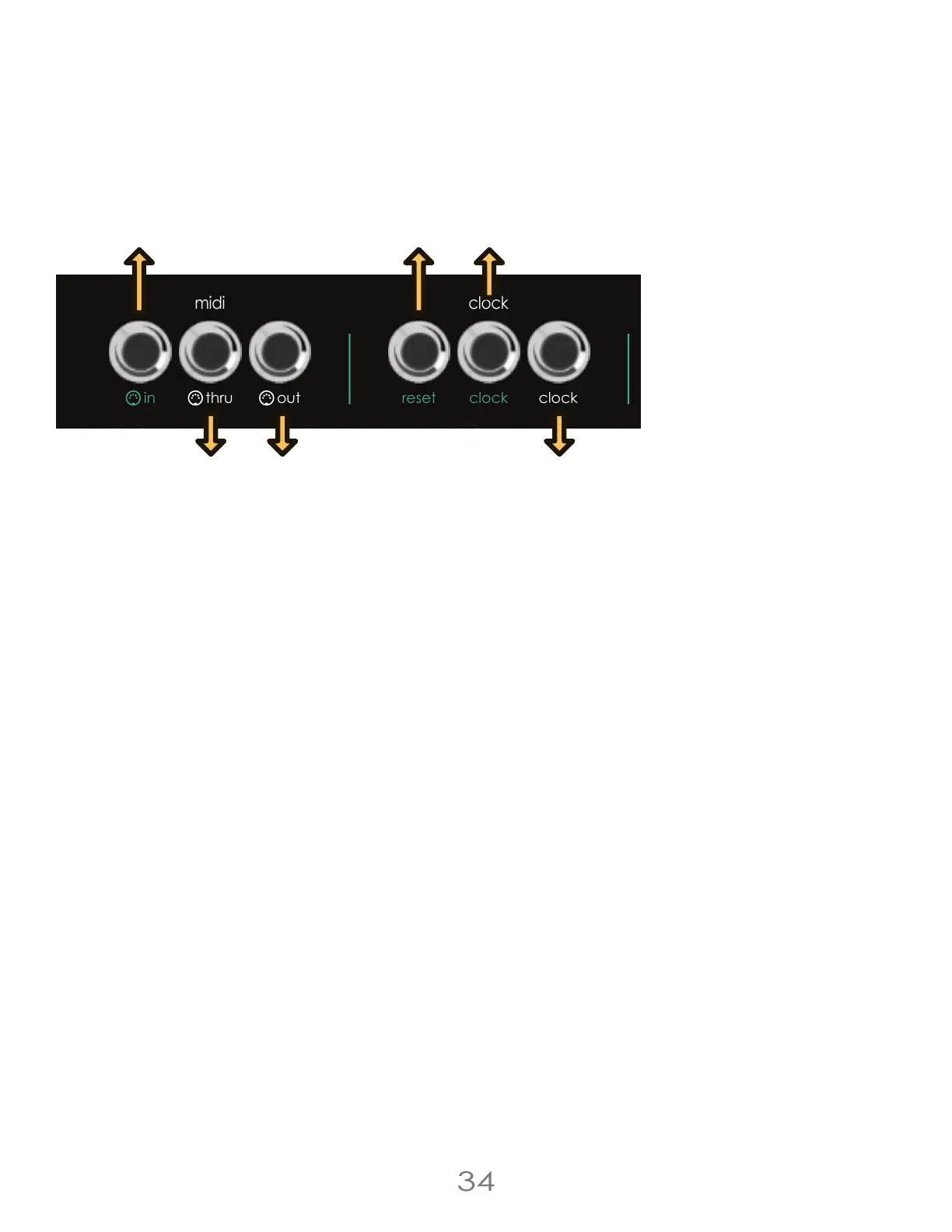

Global I/O Jacks
Input Jacks are labeled with GREEN text and output jacks are labeled with WHITE text.
Inputs
MIDI In - A TRS Type A Midi Input that can be used for Midi Clock, Midi Start commands, and Midi Stop Commands.
Reset In - An analog input that will reset both channel’s sequencers to step 1 when receiving a trigger or gate.
Clock In - An analog clock input for syncing the sequencers to an external clock.
Outputs
MIDI Thru - A TRS Type A Midi Output that parrots data from the MIDI In Jack.
MIDI Out - A TRS Type A Midi Output that sends MIDI data from the touch controller for controlling other gear, or the
VL2 Sound Module.
Clock Out - An analog clock output for syncing external hardware, or the VL2 Sound Module.
4 Voltage Lab 2 Touch Controller
clock clock
resetout
thru
in
clockmidi
Midi Out
Jack
Midi Thru
Jack
Midi In
Jack
Reset
Jack
Clock In
Jack
Clock Out
Jack
