Voltage Lab 2 Digital Settings Factory Reset:
Press and hold [Octave Up Button], [Octave Down Button], and [Dynamics Mode Button] for 5 seconds to reset all digital
modes and functions to the default settings. This action can not be undone.
Touch Controller 2 Digital Settings Factory Reset:
Press and hold [SEQUENCER BUTTON], [RUN/STOP BUTTON], [CLOCK BUTTON], [STEP SHIFT BUTTON],
[RESET BUTTON], [EDIT BUTTON], [RED CHANNEL BUTTON] and [YELLOW CHANNEL BUTTON] for 5 seconds to
reset all digital modes and functions to the default settings. The interface will flash at you, and when it does
power cycle the unit to finish the reset.
After a factory reset, it is recommended to re-calibrate the knobs and touch pads on your touch controller.
This action can not be undone.

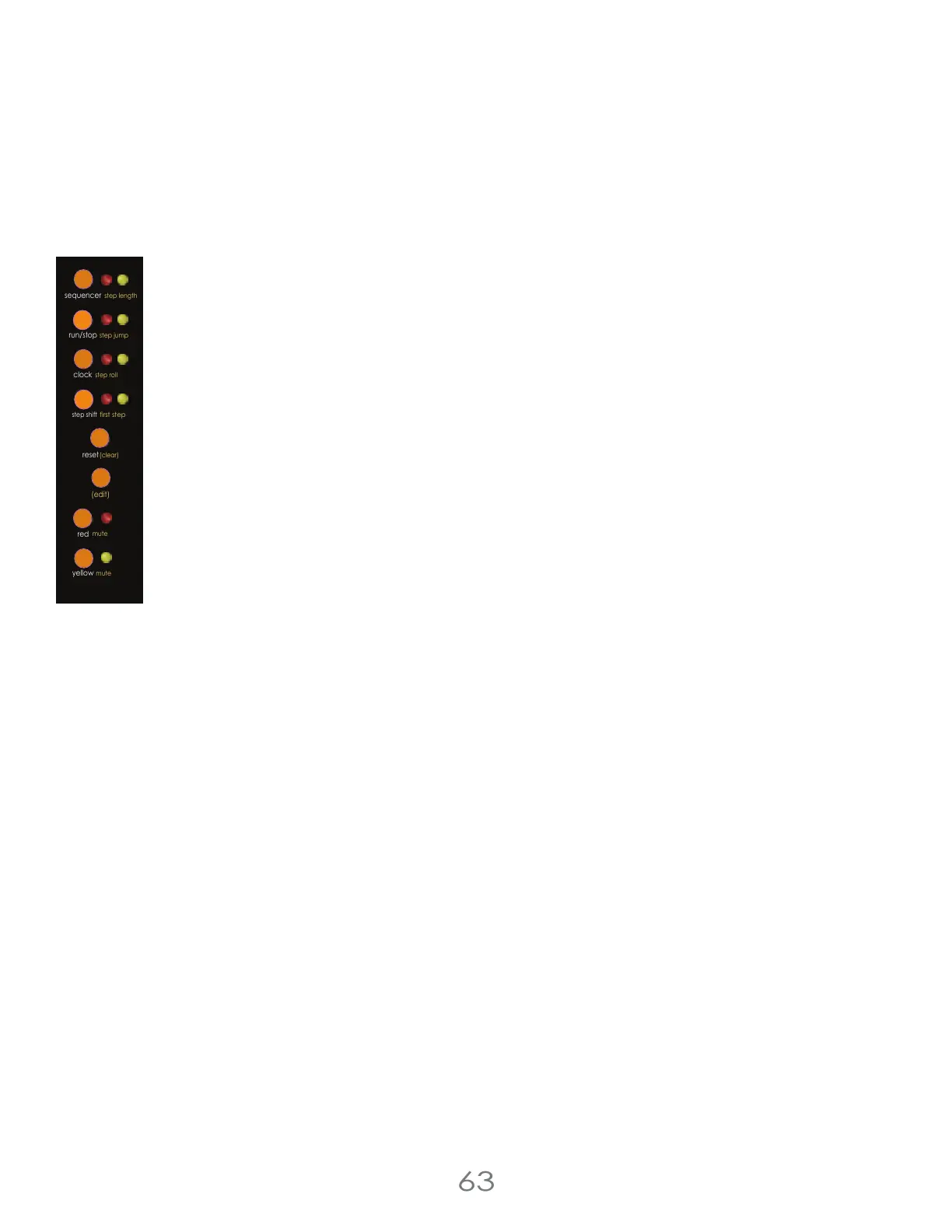

To perform a full factory reset of the touch controller, hold all 8 of the buttons along the left-most edge of
the controller down for 5 seconds.
After a factory reset, it is recommended to re-calibrate the knobs and touch pads on your touch controller.
6 Eurorack Specs
Voltage Lab 2
Panel size: 90hp.
Module depth: 31mm.
Power consumption: +12v: 750 mA, -12v: 650 mA. Does not require +5v. Includes reversed power polarity protection. Due to
the complexity of this module, it requires a significant amount of power. Please use a clean, high quality power source for
optimum performance.
Touch Controller 2
Panel size: 90hp.
Module depth: 30mm.
Power consumption: +12v: 250 mA, -12v: 150 mA. Does not require +5v. Includes reversed power polarity protection. Due to
the complexity of this module, it requires a significant amount of power. Please use a clean, high quality power source for
optimum performance.
7 Case Specs
Case Dimensions: 47.7 cm wide x 26.6 cm deep x 12 cm tall
Power Adapter: DC 15v 2400mA
5 Factory Reset
step shift
(edit)
mute
red
mute
yellow
run/stop
step roll
clock
first step
sequencer
step jump
reset
(clear)
step length
