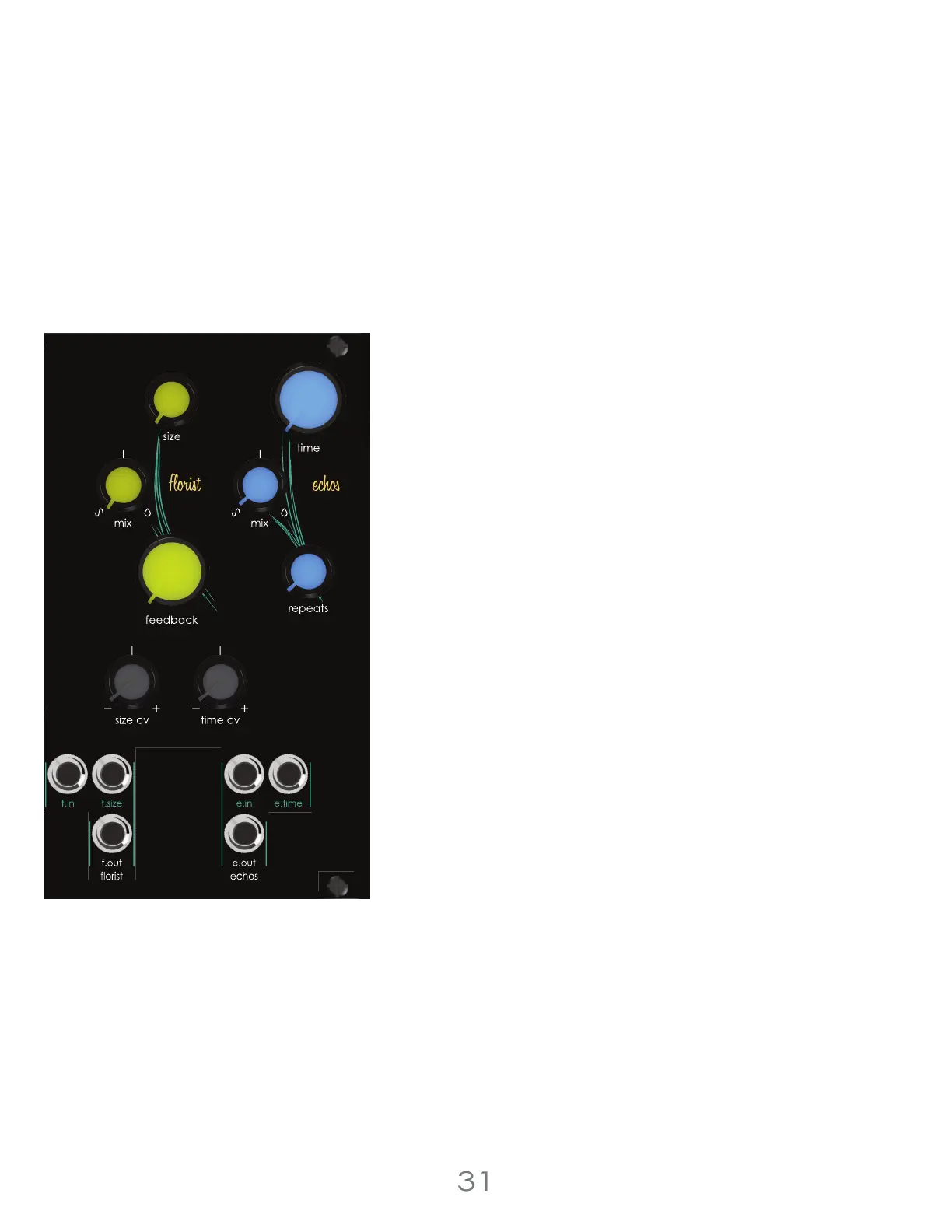

Audio Effects
Overview
The Voltage Lab Two includes a pair of our favorite analog, time based
effects. The Florist is a flanger, chorus, springy-feedback, reverb-y,
vibrato, robot sound generator with highly controlled feedback to
maximize repeats before falling into self oscillation. Echos is a moody
BBD delay that secretly moonlights as a low-fi vibe machine.
Florist
Florist utilizes a single BBD chip to produce a voltage controllable
flanger, chorus, reverb effect. Delay time can vary from 5 ms to 29 ms.
The delay time can be modulated using the [SIZE CV ATTENUVERTER]
and the [F. SIZE JACK]. The feedback of the florist is highly controlled to
allow for a high amount of feedback before the florist begins to self
oscillate.
Echos
Echos utilizes a pair of 4,096 stage BBD chips to produce a voltage
controllable analog delay signal. Clean delay time can vary from 15 ms
to 410 ms. The delay time can be modulated or maximum delay time
can be increased using the [TIME CV ATTENUVERTER] and the [E. TIME
JACK], delay time maxes out at 960 ms but the increased time will add
additional clock noise into the audio signal. The repeats of the echos
are highly controlled to allow for a large number of repeats before the
delay begins to self oscillate.
Audio Effects Input Jacks :
[F. IN JACK] Florist input jack.
[F. SIZE JACK] Florist size CV jack. Attenuverted using the [SIZE CV
ATTENUVERTER].
[E. IN JACK] Echos input jack.
[E. TIME JACK] Echos time CV jack. Attenuverted using the [TIME CV
ATTENUVERTER].
Audio Effects Output Jacks :
[F. OUT JACK] Florist output jack.
[E. OUT JACK] Echos output jack.
3 Voltage Lab 2 Voice Modules
