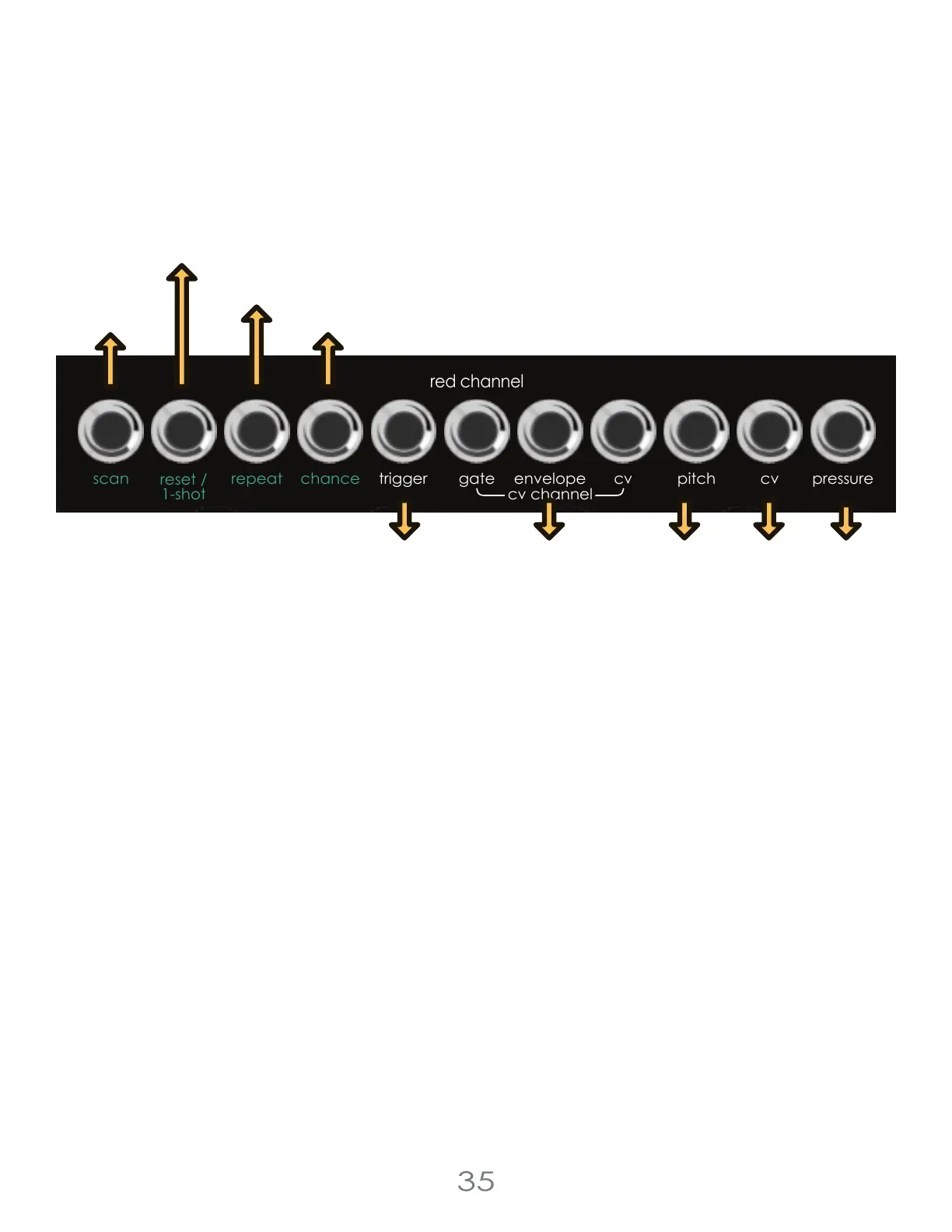

Yellow and Red I/O Jacks
The Yellow and Red channel have the exact same I/O layout, but their behaviors are independent to each other.
The only exception to this is the CV Channel outputs, which share the blue CV Channel Knobs between both channels.
Inputs
Scan Jack - A 0-5 Volt input that will “scan” through the available steps of the channel based on the CV.
Reset/1-Shot Jack - Resets the sequence to its first step; if 1-shot is on, will start a 1-shot(a single play through the
sequence).
Repeat Jack - While high, hangs the sequence on the current active step, re-triggering the step. Once low, the
sequence will continue on the step that “should” be active.
Chance Jack - A 5 volt-normaled CV Input to the Chance Knobs, giving CV control of the chance engine.
Outputs
Trigger Output - A 5v, 10 ms trigger output that sends whenever a note is triggered.
CV Channel
CV Channel Gate - A 5 volt gate output with gate length set by the CV Channel Knobs while sequencer
mode is on, or held high while holding a Touch Pad while sequencer mode is off.
CV Channel Envelope - A percussive decay envelope with decay time set by the blue CV Channel
Knobs.
CV Channel CV - A 0-5 volt CV output with level set by the blue CV Channel Knobs.
Pitch Output - An analog volt per octave quantized output with selectable scales and keys.
Pitch CV Output - A 0-5 volt unquantized output controlled by the Pitch Knobs.
Pressure Output - A 0-5 volt CV output set either by the pressure used when playing the pads, or set per step while
sequencer mode is on.
4 Voltage Lab 2 Touch Controller
Scan
Jack
Reset/1-shot
Jack
Repeat
Jack
Chance
Jack
Trigger
Output
CV Channel
Outputs
Pitch
Output
Pitch CV
Output
Pressure
Output
pressure
pitch
cv
cv channel
gate
trigger
reset /
1-shot
repeat chance
scan
envelope
red channel
cv
