NetworkVideoRecorderwithHDMI
NVR‐820/NVR‐1620

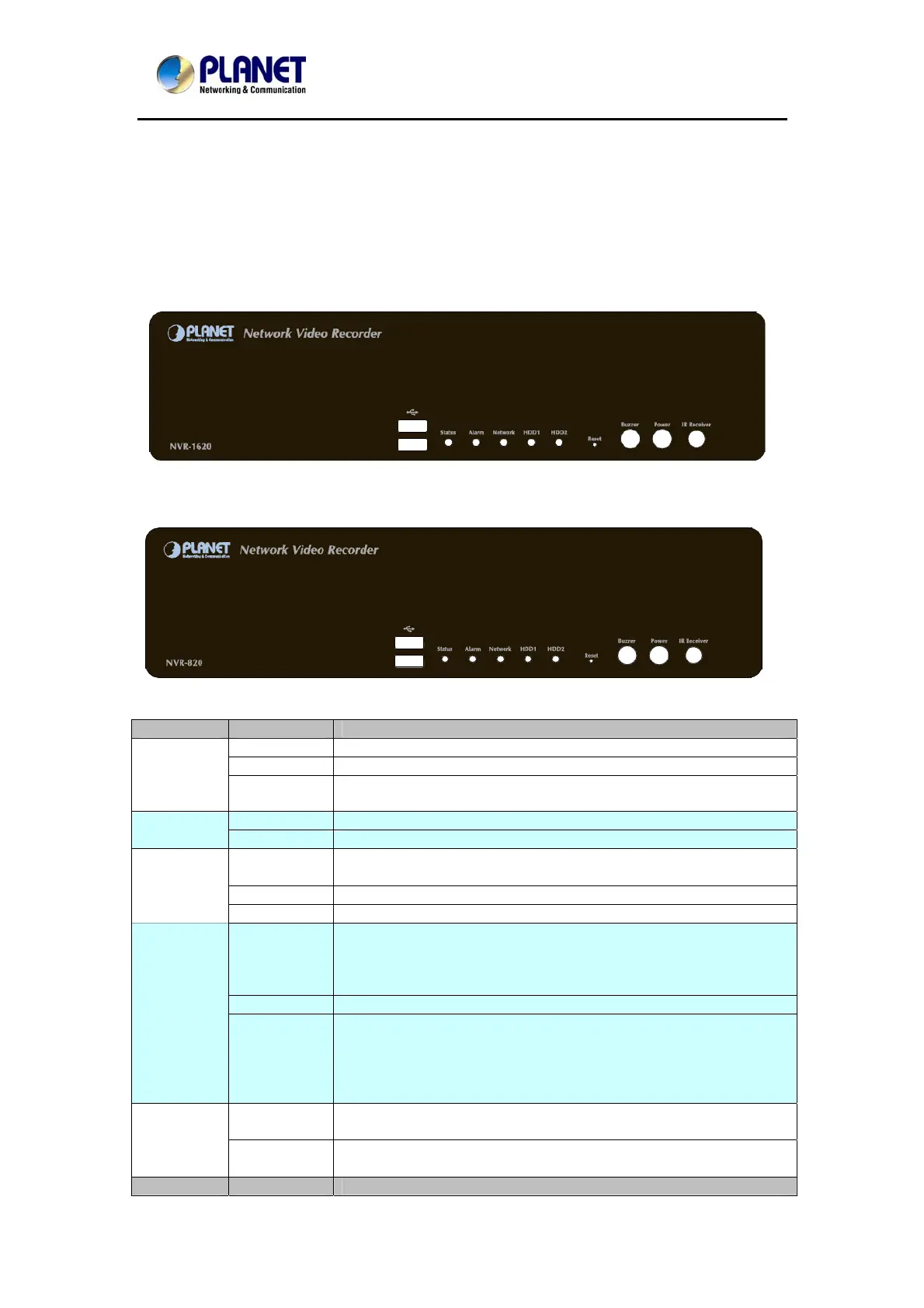

Chapter 2. Hardware Interface
2.1 Physical Descriptions
Front Panel
NVR-1620
NVR-820
LEDs
Status Definitions
Green Solid green when the HDD is mounted
Red Solid red for disk fail
HDD x 2
Amber
Solid amber when recording is in process
Blinking when recycling
Green Solid green for activity on a 10 / 100Mbps network
Network
Amber Solid amber for activity on a 1Gbps network
Solid green for normal operation
Blinking green when firmware upgrade is done
Green
Red
11
Blinking red for failed firmware upgrade through USB disk
Status
Amber Blinking amber during firmware upgrade
Solid green - Normal operation
Blinking in green after pressing and holding the reset button for 5
seconds indicating the device will enter the restore default
process. Other LEDs remain unchanged during this state.
Green
Red System off (power cord remains plugged in)
Power
Amber
Fast blinking - During system initializing/starting.
Continuous blinking - When system is unable to start properly (All
other LEDs should be off when this LED is blinking in amber)
Slow blinking - The system is shutting down. Other LEDs go off
according to the stages of the process.
Blinking in red when a system/camera event occurs.
Blinking should last 10 seconds for each event
Red
Alarm
None
Goes off if reaches the 10-second duration, or when
buzzer stop button is pressed (if buzzer is triggered)
Buttons
Status Definitions
