NetworkVideoRecorderwithHDMI
NVR‐820/NVR‐1620

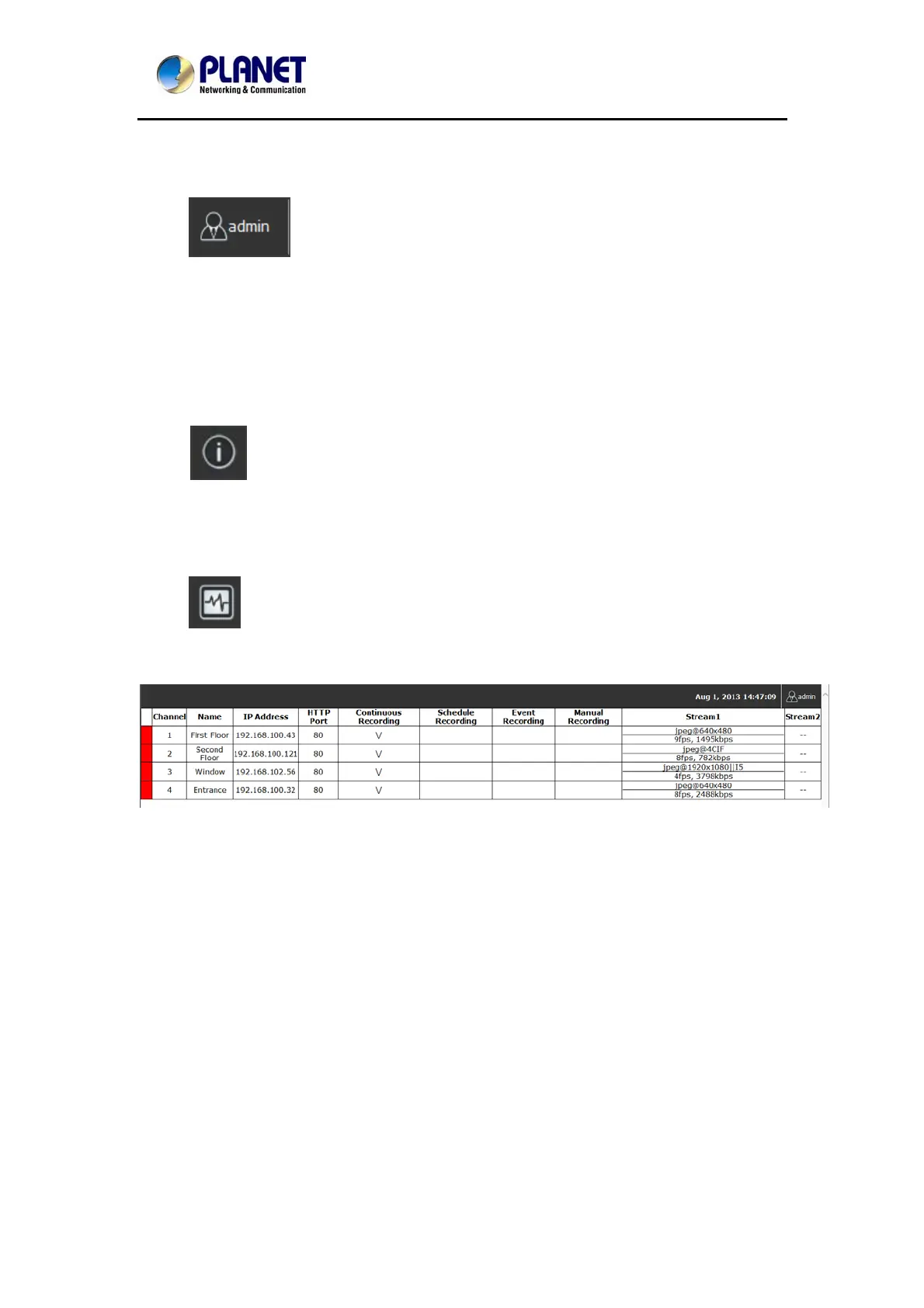

4.1.2 User’s Configuration
It displays the name of the current user.
If you click on the name of the user, the context menu offers the functions below:
- Language settings
- User setting
- Locking the screen
- Logout function
4.1.3 Hardware Event Notification
In this section, you will receive notifications if a warning sound is triggered or if the hard drive
of the NVR fails in recording data.
4.1.4 Channel Status
If you click on the icon, page tab will display the current status of the channels added to the
NVR.
It can also display the current configuration used for the event recording or the configuration
settled for the scheduled and manual recording. The channels status page is updated as long
as the NVR’s main user interface is open.
4.2 Video Frame
All the camera’s videos are displayed in this frame. If the cursor is pointing at one of the
cameras, it will show a bar at the top. The bar displays the channel’s number and some
functions as shown on the snapshot below.

21
