NetworkVideoRecorderwithHDMI
NVR‐820/NVR‐1620

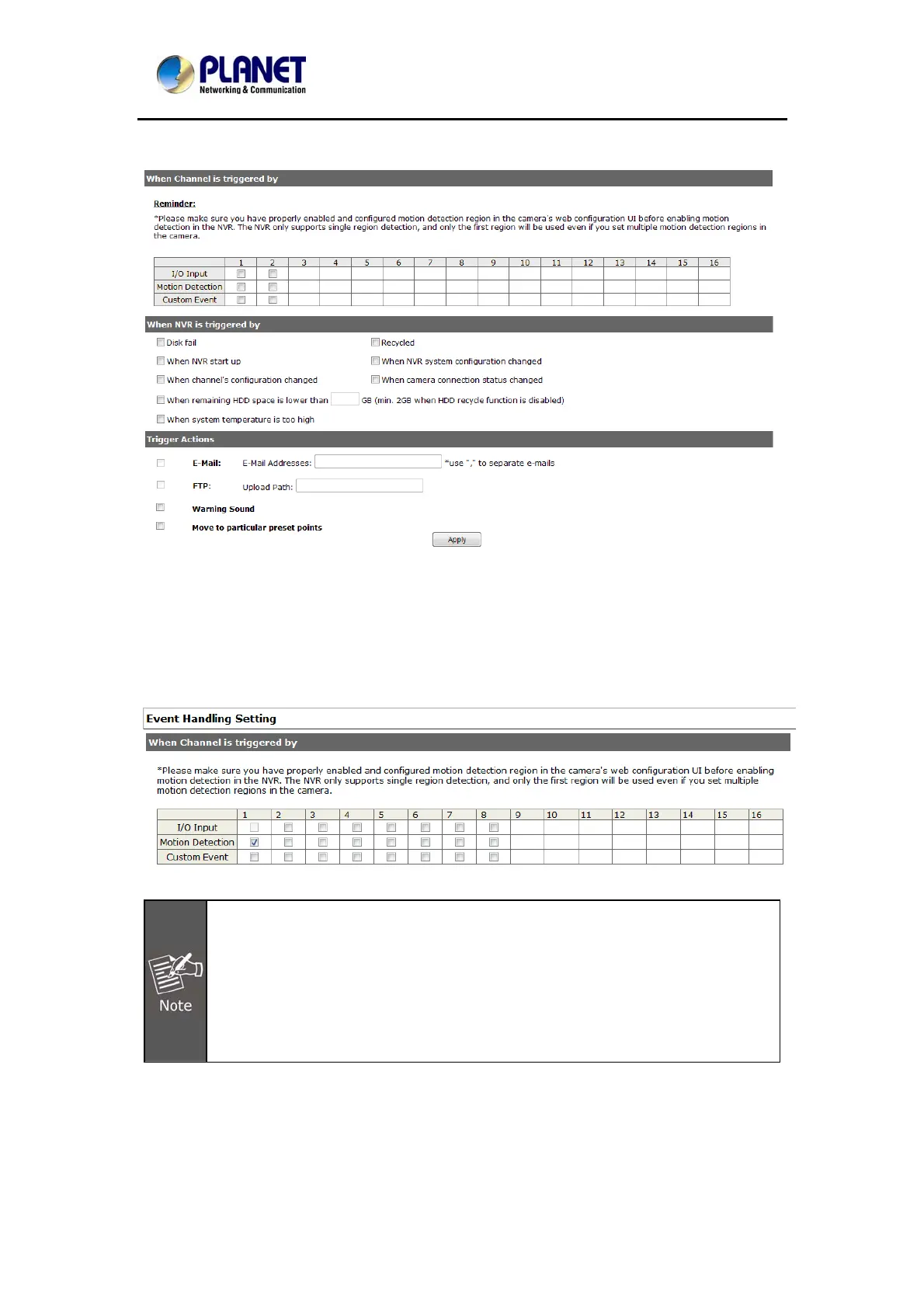

9.4 Event Triggers
We have finished defining how an event will be triggered and which servers will be receiving
notifications in the previous two sections, now we can finish up the event configuration by
setting:
•Which channels will have event trigger function enabled
•What is considered to be an event.
•Where the warnings will be sent to and how they will be sent
Use the checkbox to enable event trigger on the desired channels.
*Once motion detection is enabled on this page, please configure the motion area
and enable motion detection in the corresponding channels (cameras) from
camera's own web UI. The NVR only detects the first motion area set in the
camera. The NVR recognizes the first motion area by its ID number set in the
camera.
* Enabling the “custom event” option allows the NVR to receive events from the
CMS software and start recording; events such as the intelligent video detection
in the CMS.
71
