2.1.2 Port and Button
It provides a simple interface monitoring the AP. Figure 2-5 shows the hardware interface of the
WAP-252N/552N.
WAP-252N/552N Hardware Interface:

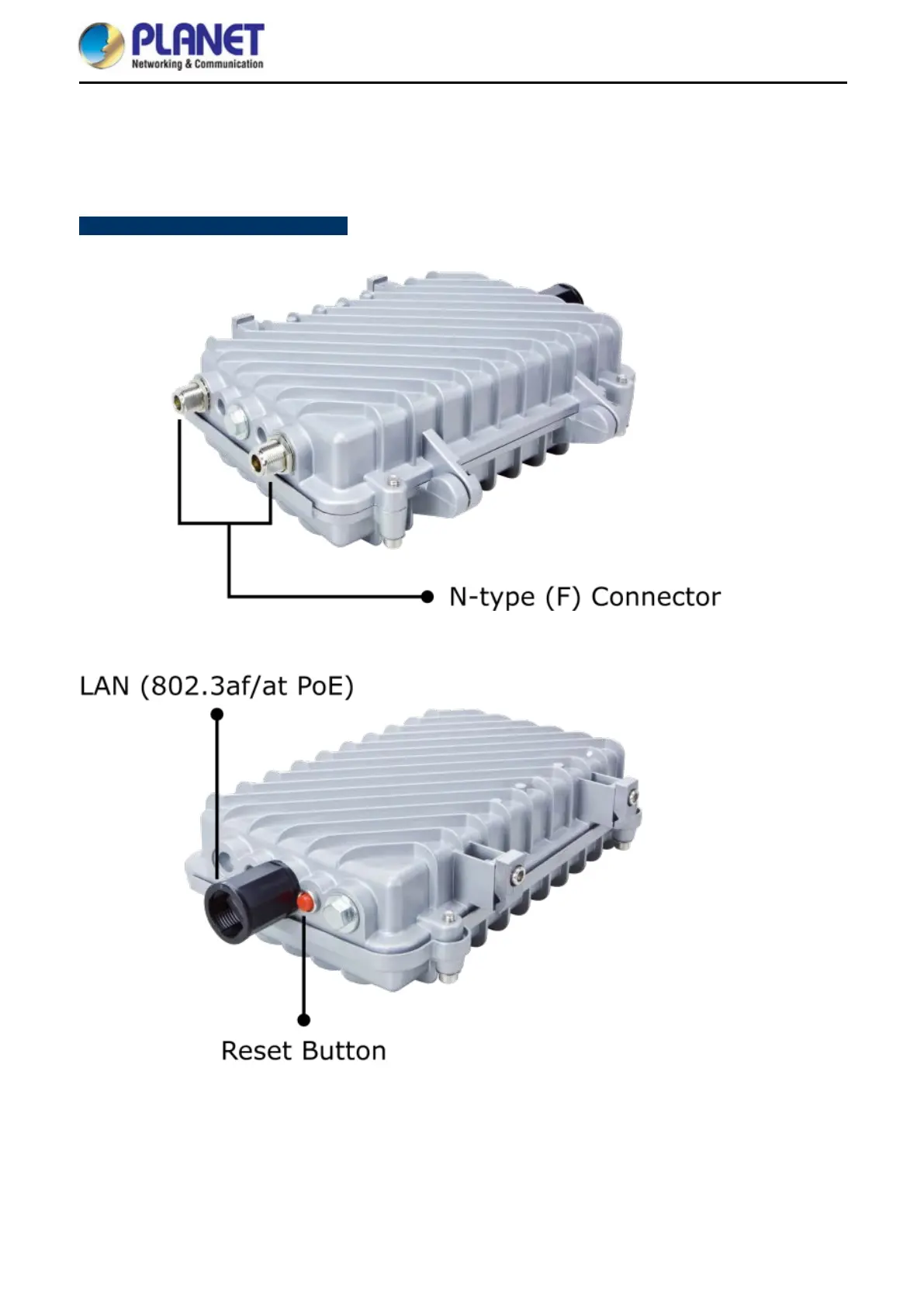

Figure 2-1 WAP-252N / WAP-552N Interface
