User Manual of WAP-252N/WAP-552N
-21-

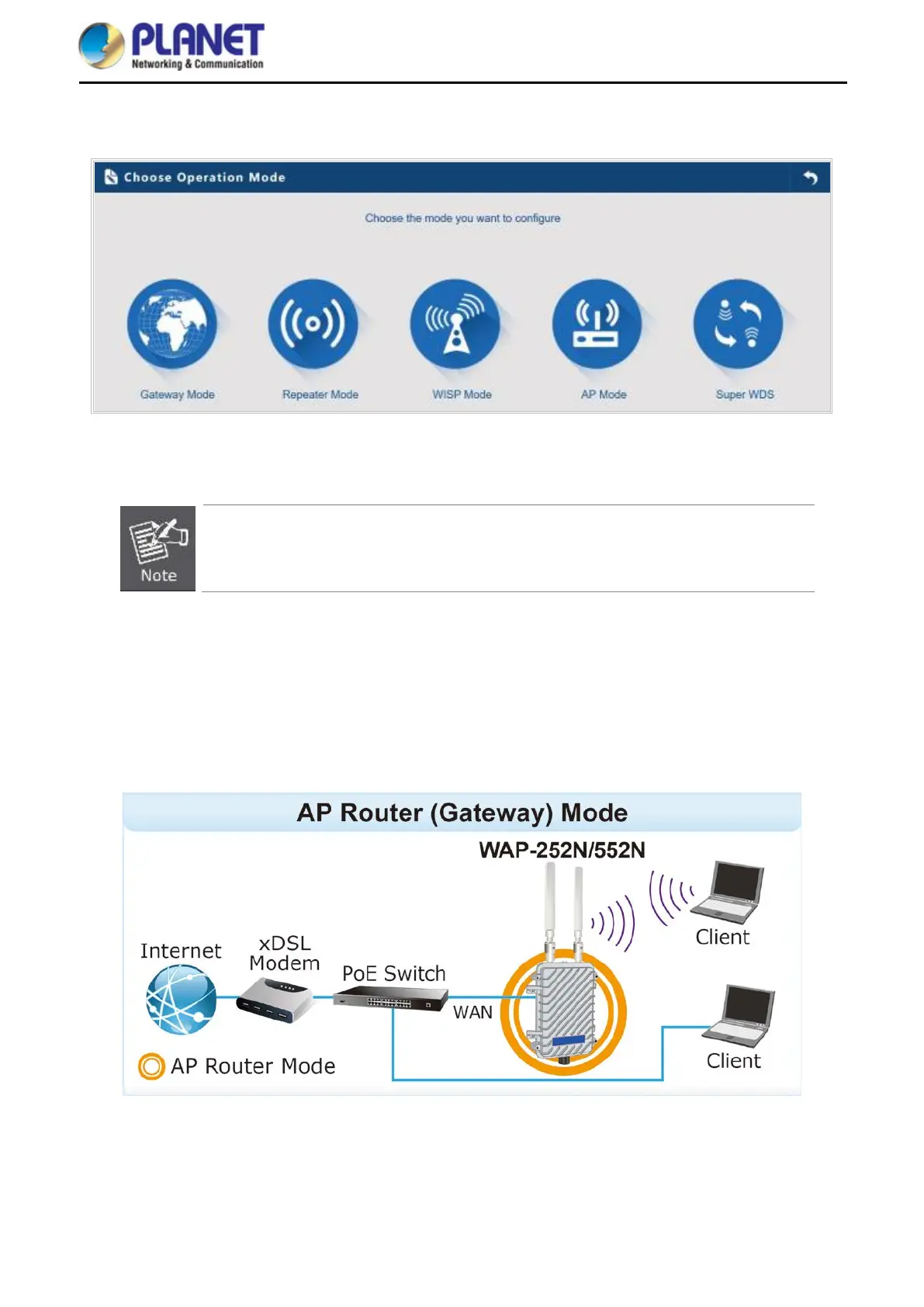

The Wizard guides you to configuring the WAP-252N/WAP-552N in a different mode, including Gateway,
Repeater, WISP, AP and Super WDS mode.
Figure 5-2 Operation Mode
The default operation mode is AP mode.
Gateway Mode (AP Router) 5.2
 In this mode, the device is supposed to connect to internet via ADSL/Cable Modem.
 The NAT is enabled and PCs in LAN ports share the same IP to ISP through WAN port.
 The connection type can be set up on the WAN page by using PPPoE, DHCP client or
static IP.
Click “Wizard”  “Gateway Mode” and the following page will be displayed. This section allows you to configure
the Gateway mode.
