User Manual of WAP-252N/WAP-552N
-26-

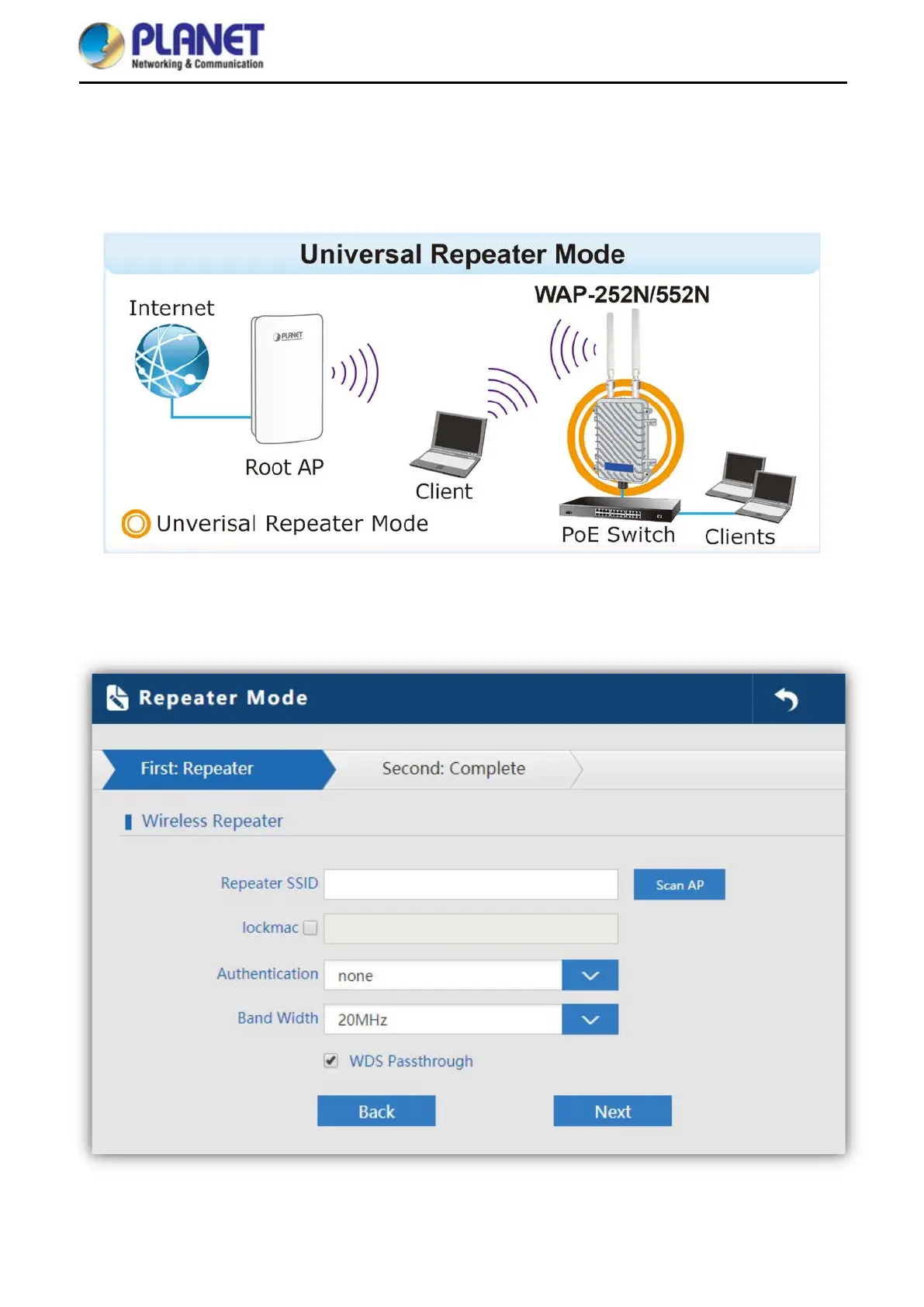

Repeater Mode (Universal Repeater) 5.3
In the Repeater mode, the user can access wireless AP; devices can be connected to other wireless network
using the wireless. All interfaces are bridged together without NAT, firewall and all network-related functions.
Click “Wizard” “Repeater Mode” and the following page will be displayed. This section allows you to
configure the Repeater mode.
Figure 5-8 Repeater Mode
