User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
154
EAPOL frame for port-based authentication, and the source MAC address from
the most recently received frame from a new client for MAC-based
authentication.
4.10.5 802.1X and MAC-Based Authentication Statistics
This page provides detailed IEEE 802.1X statistics for a specific switch port running port-based authentication. For MAC-based
ports, it shows selected RADIUS statistics, only. Use the port select box to select which port details to be displayed. The 802.1X
and MAC-Based Authentication Statistics screen in Figure 4-10-6 appears.

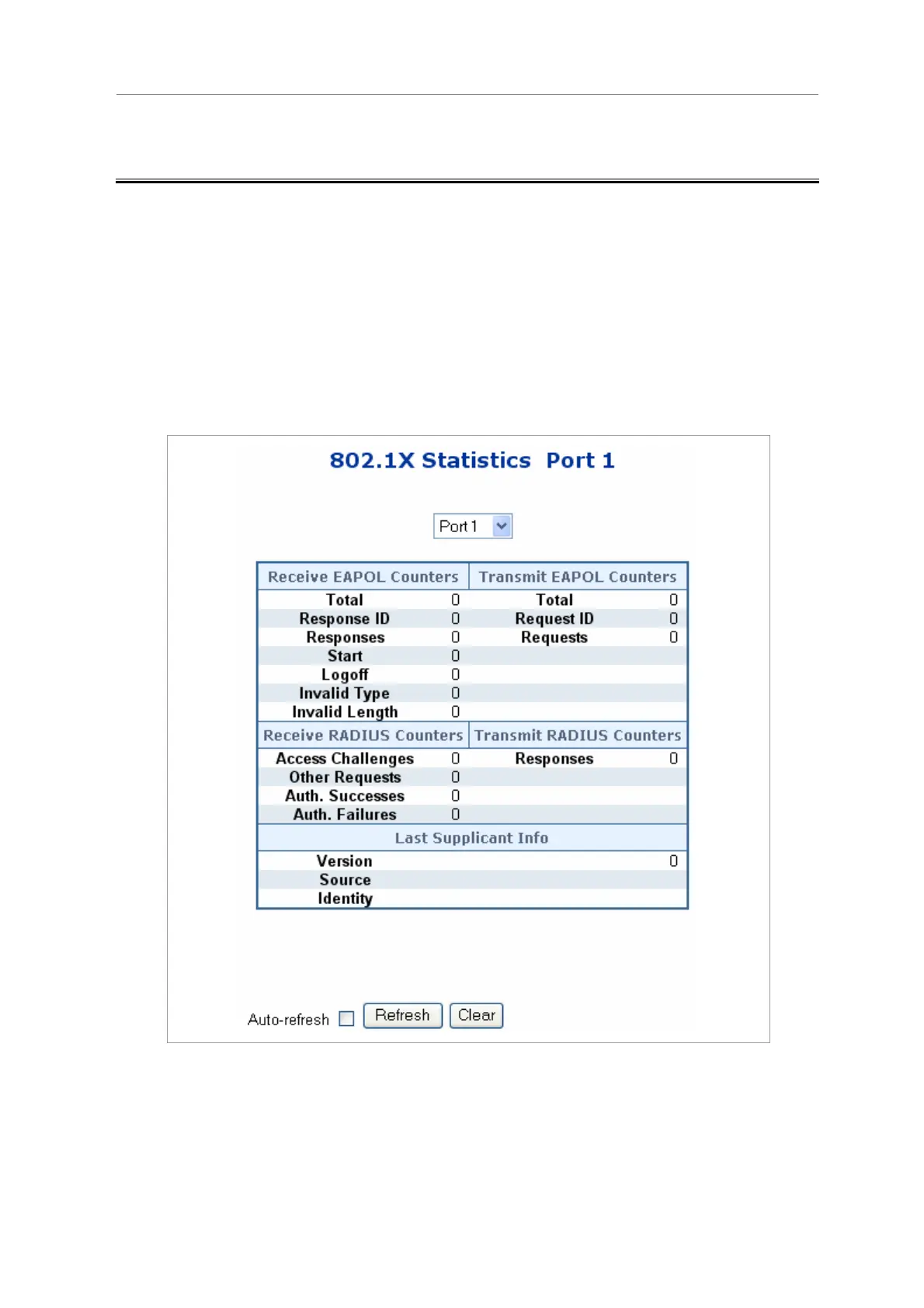

Figure 4-10-6 802.1X Statistics Port 1 page screenshot
